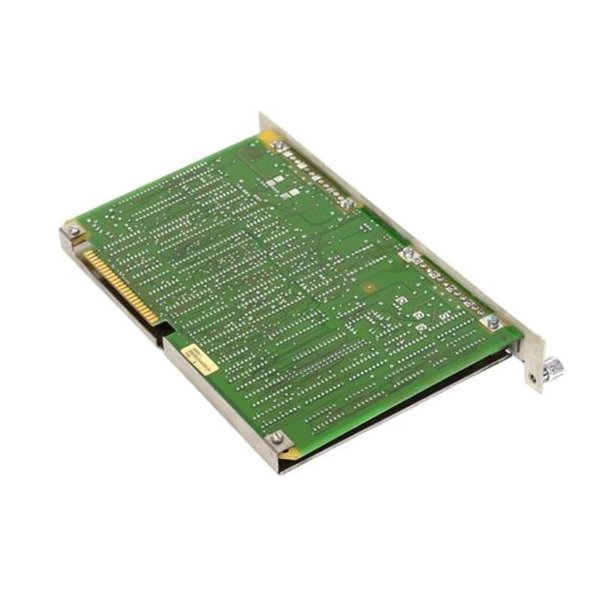

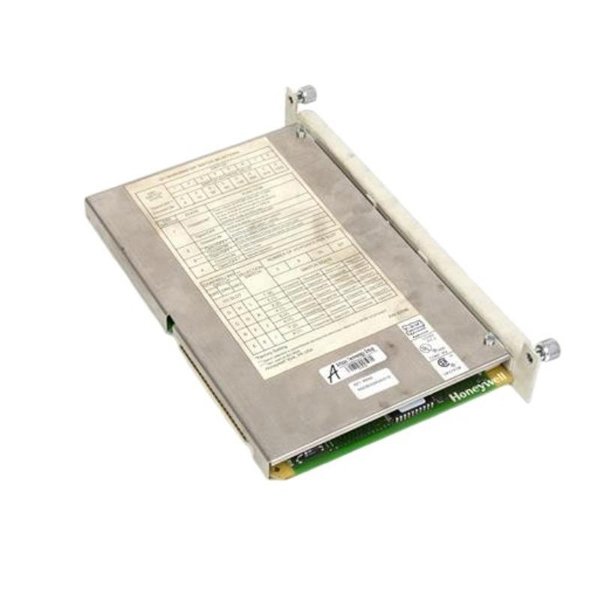

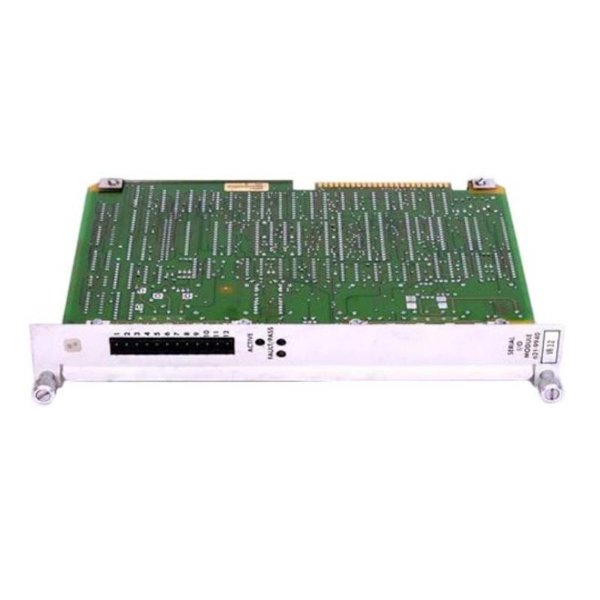

Honeywell 621-9940 Serial I/O Modules

The Honeywell 621-9940 Serial I/O Module is designed to provide high-performance serial communication for Honeywell’s Distributed Control System (DCS), including systems like TotalPlant Solution (TPS) and PlantScape. This module enables reliable and fast data exchange between Honeywell DCS systems and field devices, such as sensors, actuators, and controllers, using serial communication protocols like RS-232 and RS-485.

The 621-9940 is ideal for industrial automation applications that require seamless real-time control and monitoring. It is built for long-lasting performance in harsh industrial environments and can be easily integrated into Honeywell’s I/O system racks. The module’s compact design, robust construction, and ability to handle a wide range of serial protocols make it an excellent choice for complex automation tasks.

Key Features

• Multiple Serial Protocols: Supports RS-232, RS-485, and other serial standards for flexible communication options

• Real-time Data Transfer: Ensures fast and reliable communication for process control and monitoring

• Point-to-Point and Multi-Drop Support: Configurable for both point-to-point and multi-drop serial communication setups

• Hot-Swappable Design: Allows for easy replacement without shutting down the system

• LED Diagnostic Indicators: Provides real-time feedback for easy monitoring and troubleshooting

• Industrial Durability: Designed to operate in harsh conditions and challenging environments

• Seamless Integration: Fully integrates with Honeywell TPS and PlantScape systems for seamless operation

• Compact and Modular: Space-saving design for easy installation in Honeywell I/O racks

Technical Specifications

Industry Applications

• Oil & Gas – Communication with field instruments such as flowmeters, pressure sensors, and remote monitoring systems

• Power Generation – Data exchange between turbine control systems and central control systems

• Chemical & Petrochemical – Integration with chemical plant automation and real-time process monitoring

• Water & Wastewater – Communication with pumps, valves, filtration systems, and treatment equipment

• Manufacturing – Machine control and process monitoring in factory automation systems

• Pharmaceuticals – Remote monitoring and control of sensitive pharmaceutical production systems

Advantages

• Versatile Protocol Support: Supports both RS-232 and RS-485, allowing communication with a variety of field devices and other systems

• Real-time Data Communication: Ensures uninterrupted, fast data transfer for time-sensitive process control applications

• Industrial-Grade Reliability: Designed to operate in challenging industrial environments, providing durability and long-term reliability

• Compact Design: Fits within standard Honeywell I/O racks, saving space while maintaining high functionality

• Flexible Communication Setup: Configurable for both point-to-point and multi-drop configurations, adapting to different system needs

• Seamless Integration with Honeywell Systems: Fully compatible with Honeywell DCS platforms, including TPS and PlantScape

• Hot-Swappable: Allows for easy replacement without affecting system uptime

• LED Indicators: Real-time feedback on system status and communication health for efficient troubleshooting

Frequently Asked Questions (FAQ)

1. What serial communication protocols are supported by the 621-9940?

   It supports RS-232, RS-485, and other serial communication protocols.

2. What types of devices can the 621-9940 communicate with?

   It can communicate with a wide variety of field devices, including sensors, actuators, and controllers.

3. Can the 621-9940 module be used for real-time data transfer?

   Yes, the module is designed for high-speed data transfer, making it suitable for real-time control and monitoring.

4. What is the operating temperature range for the 621-9940?

   The module operates between 0°C and +60°C.

5. How is the module powered?

   It is powered through Honeywell’s I/O Rack Power Supply, which is integrated into the system.

6. What is the physical size of the module?

   The module has approximate dimensions of 264 mm x 32 mm x 127 mm.

7. Can the 621-9940 be replaced without shutting down the system?

   Yes, it is hot-swappable, which means you can replace it without needing to shut down the system.

8. Is this module suitable for use in harsh industrial environments?

   Yes, it is built to withstand harsh industrial conditions and is designed for long-term reliability in demanding applications.

9. What feedback or diagnostics does the 621-9940 provide?

   It includes LED status indicators to give real-time feedback on the health of the communication system.

10. What certifications does the 621-9940 have?

    The module is CE, UL, and CSA certified, making it compliant with industry standards for safety and performance.
