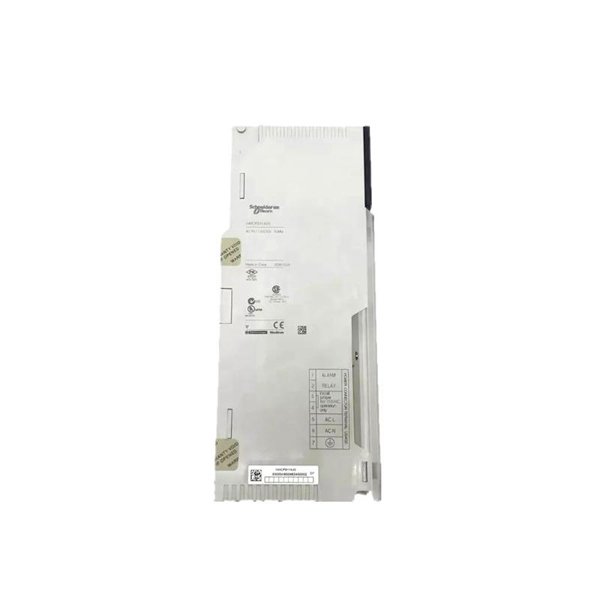

Schneider 140CPS11420 Power Supply Module
Manufacturer:Schneider
Product Number:140CPS11420
Product Type:Power Supply Module
Origin:France
Dimensions:103.9 × 40.3 × 250 mm
Weight:0.65 kg
Views:68
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider 140CPS11420 is a Modicon Quantum Power Supply Module designed to provide reliable power to PLC systems. It operates with an input voltage of 115 V AC or 230 V AC and delivers a regulated 5.1 V DC output. This module can function both as a standalone unit or in summable configurations to meet higher power requirements.
Product Specifications
| Specification | Details |
|---|---|
| Input Voltage | 115 V AC (93…132 V) or 230 V AC (170…276 V) |
| Input Frequency | 47 to 63 Hz |
| Input Current | 1300 mA at 115 V; 750 mA at 230 V |
| Inrush Current | 38 A at 115 V; 19 A at 230 V |
| Rated Power | 130 VA |
| Output Voltage | 5.1 V DC |
| Output Current | 11 A standalone at 60°C; 20 A summable at 60°C |
| Output Overvoltage Protection | Internal |
| Output Overload Protection | Internal |
| Harmonic Distortion | ≤ 10% of fundamental RMS value |
| Alarm Output | 1 NC 6 A 220 V power supply fault |
| Local Signaling | 1 green LED for power (PWR OK) |
| Dimensions (H x W x D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.65 kg |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Relative Humidity | 95% without condensation |
| Operating Altitude | ≤ 5000 m |
| Certifications | CE, cUL, UL 508, CSA C22.2 No 142 |
| Resistance to Electrostatic Discharge | 4 kV contact; 8 kV air conforming to IEC 801-2 |
| Resistance to Electromagnetic Fields | 10 V/m 80…2000 MHz conforming to IEC 801-3 |
Applications
The 140CPS11420 module is utilized in industrial automation systems to supply consistent power to Modicon Quantum PLCs. Its capability to operate in both standalone and summable configurations makes it suitable for various applications, including manufacturing processes, process control, and infrastructure automation.
Advantages
- Flexibility: Can be used independently or in combination with other modules to meet varying power demands.
- Reliability: Equipped with internal protections against overvoltage and overload conditions.
- Compliance: Meets international standards and certifications, ensuring quality and safety.
FAQs
What input voltages are supported by the 140CPS11420 module?
- It supports 115 V AC (93…132 V) and 230 V AC (170…276 V) input voltages.
What is the output voltage of this power supply module?
- The module provides a 5.1 V DC output.
Can the 140CPS11420 be used in parallel with other power supplies?
- Yes, it can be used in summable configurations to increase power capacity.
What protections are integrated into the module?
- It includes internal overvoltage and overload protection mechanisms.
What is the operating temperature range for this module?
- The module operates effectively within a temperature range of 0 to 60°C.
Is there an indicator for power status on the module?
- Yes, there is a green LED labeled ‘PWR OK’ indicating the power status.
What are the dimensions and weight of the 140CPS11420?
- Dimensions are 103.9 × 40.3 × 250 mm, and it weighs 0.65 kg.
Does the module comply with international standards?
- Yes, it complies with standards such as UL 508 and CSA C22.2 No 142.
What is the maximum operating altitude for this power supply?
- It can operate at altitudes up to 5000 meters.
Can the 140CPS11420 be used in a redundant power supply setup?
- Yes, it can be paired with another compatible module for redundant power supply operation, enhancing system reliability.
