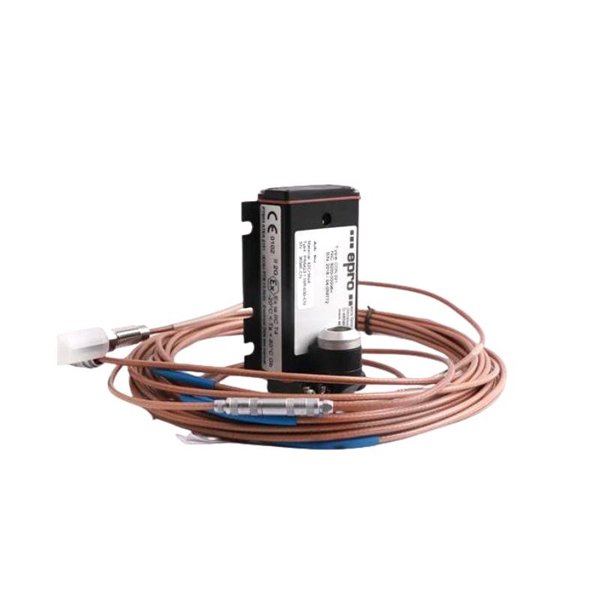

Epro PR6423/010-120 8mm Eddy Current Sensor

The Epro PR6423/010-120 8mm Eddy Current Sensor is an advanced sensing solution designed for highly accurate non-contact displacement, position, and speed measurements. Utilizing eddy current technology, this sensor offers high precision even in harsh environments. The PR6423/010-120 model is ideal for applications requiring precise monitoring of metal surfaces, moving parts, and rotational elements. It is particularly beneficial in industries like manufacturing, automotive, aerospace, and machinery for measuring displacement, vibration, and speed without physical contact with the target surface.

Product Specifications

Product Applications

The Epro PR6423/010-120 8mm Eddy Current Sensor is widely used across various industries that require high precision in monitoring displacement and speed of metallic objects. Common applications include:

1. CNC Machines: Ensuring accurate position control of machine tools.

2. Automotive Industry: Monitoring vibration, displacement, and speed of moving parts, such as engine components.

3. Aerospace: Measuring displacement in critical components like turbine blades and control surfaces.

4. Manufacturing: Quality control and position feedback in automated assembly lines.

5. Rotating Machinery: Monitoring rotor shaft displacement and vibration in motors and turbines.

6. Gearbox Monitoring: Tracking gear meshing positions and displacement for preventive maintenance.

7. Test and Measurement Equipment: Used in research and test applications requiring precise displacement measurement.

8. Vibration Analysis: Monitoring vibrations in industrial machinery for fault detection and preventive maintenance.

Product Advantages

The Epro PR6423/010-120 8mm Eddy Current Sensor offers a variety of benefits that enhance its performance in industrial applications:

1. Non-contact Measurement: Ensures accurate measurements without any wear or tear on the sensor, increasing lifespan and reliability.

2. High Precision: With a resolution of 0.1 µm, this sensor provides highly precise measurements even in challenging conditions.

3. Wide Operating Temperature Range: Suitable for use in harsh environments with temperatures ranging from -20°C to +85°C.

4. Robust Design: The stainless steel housing and IP67 protection class provide excellent durability and protection against dust and moisture.

5. High Frequency Response: With a frequency response of 20 kHz, it allows for precise real-time monitoring, even in fast-moving systems.

6. Versatile Output Options: The sensor provides both analog (0-10V, 4-20mA) and digital outputs for easy integration into various control systems.

7. Compact Size: The sensor’s small form factor (150 mm x 40 mm x 30 mm) allows for flexible installation in tight spaces.

8. Easy Mounting: The flush mount design makes installation straightforward and ensures stable performance.

9. Low Power Consumption: The sensor operates on a supply voltage of 10-30V DC, which ensures energy efficiency.

10. No Physical Contact with Targets: Prevents damage to the target surface and extends the service life of both the sensor and the system it monitors.

FAQ

1. What is the Epro PR6423/010-120 Eddy Current Sensor used for?

   • It is used for non-contact displacement, position, and speed measurements in various industrial applications.

2. What is the measurement range of this sensor?

   • The measurement range is from 0 to 8 mm.

3. What is the resolution of the Epro PR6423/010-120 sensor?

   • The sensor provides a resolution of 0.1 µm.

4. What type of output does the sensor provide?

   • The sensor provides both analog (0-10V, 4-20mA) and digital outputs.

5. What is the supply voltage for the Epro PR6423/010-120?

   • The sensor operates on a supply voltage of 10-30V DC.

6. What are the temperature ranges for the sensor?

   • The sensor operates in temperatures ranging from -20°C to +85°C and can be stored between -40°C and +100°C.

7. What is the housing material of the sensor?

   • The sensor is housed in stainless steel, providing robustness and durability.

8. Is the sensor protected against dust and moisture?

   • Yes, it has an IP67 rating, making it dust-tight and waterproof.

9. How does the sensor measure without physical contact?

   • It uses eddy current technology to detect changes in displacement without physically contacting the target.

10. What industries benefit from using this sensor?

• The sensor is widely used in automotive, aerospace, manufacturing, CNC machines, and rotating machinery industries.
