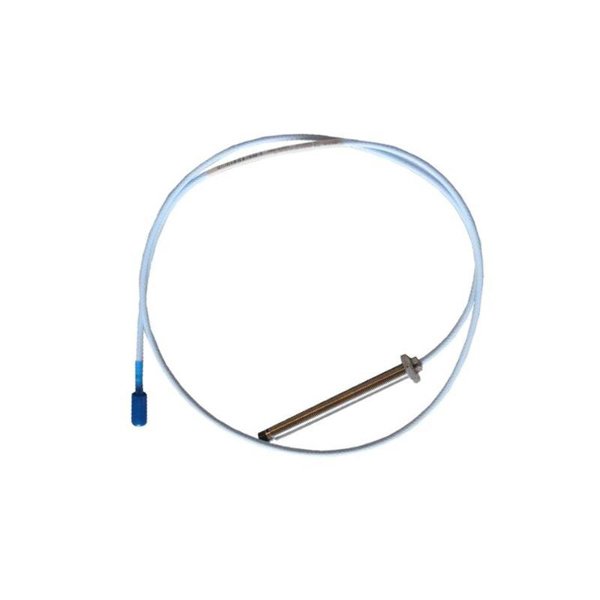

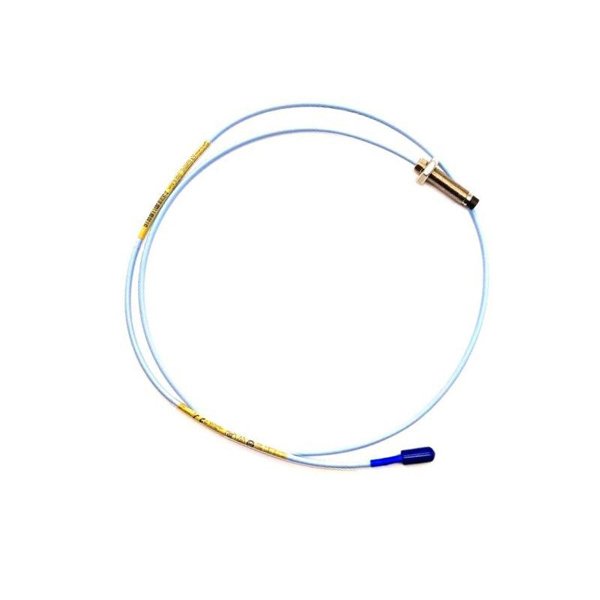

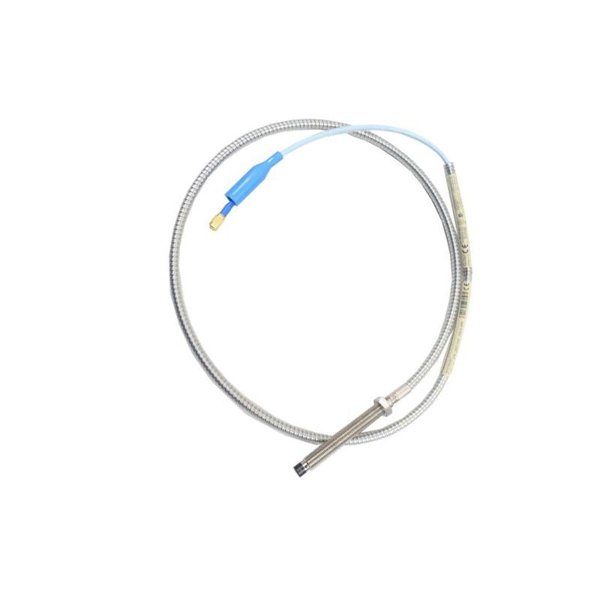

Bently Nevada 330103-00-05-10-01-CN 3300 XL 8 mm Proximity Probe

The Bently Nevada 330103-00-05-10-01-CN is a high-performance 8 mm proximity probe from the trusted 3300 XL series, engineered to deliver accurate, non-contact vibration and displacement measurements in rotating machinery. This model features a 10-meter integral coaxial cable, Type 01 connector, and is designated with the “CN” regional suffix, typically indicating China-specific configuration or compliance.

This proximity probe is designed for use in critical asset protection and condition monitoring systems. With its rugged stainless steel construction, excellent EMI shielding, and compatibility with 3300 XL Proximitor® sensors, it is ideal for harsh industrial environments where reliability and precision are vital.

Key Features

• 8 mm sensing tip for industry-standard non-contact monitoring

• 10-meter (32.8 ft) shielded coaxial cable

• Shell Type “01” connector for Bently Nevada system compatibility

• “CN” suffix indicates China-localized configuration

• Robust stainless steel body and IP67 environmental protection

• Factory-calibrated, plug-and-play integration with 3300 XL systems

• High-frequency response suitable for dynamic measurements

• Designed for long-term deployment in mission-critical equipment

Technical Specifications

Industry Applications

• Power Generation – Monitoring turbine, generator, and pump shafts

• Oil & Gas – Compressors, gas turbines, and pump train diagnostics

• Petrochemical – Rotating machinery in refineries and process plants

• Mining & Metals – Equipment such as crushers, motors, and gearboxes

• Marine Vessels – Propulsion shaft alignment and vibration analysis

• General Industrial – Motor-driven systems, fans, and rotating assets

Product Advantages

• High Accuracy – Provides stable, linear measurements across the sensing range

• Long Cable Reach – 10-meter cable allows remote placement and sensor flexibility

• Corrosion-Resistant Build – Stainless steel probe body withstands aggressive environments

• EMI/RFI Shielding – Coaxial cable construction ensures clean signal transmission

• Seamless Integration – Fully compatible with Bently Nevada 3300 XL systems

• Rugged Design – Suitable for high-vibration and high-temperature environments

• Plug-and-Play Operation – Pre-calibrated for immediate use

• Localized Configuration – “CN” variant ensures compliance with China standards

Frequently Asked Questions (FAQ)

1. Q: What is the significance of the “CN” suffix?

   A: It typically indicates a version configured or certified for China, often including region-specific markings or documentation.

2. Q: What is the cable length of this probe?

   A: It comes with a 10-meter (32.8 ft) fixed coaxial cable.

3. Q: What connector type is used?

   A: Shell Style “01” connector, suitable for 3300 XL extension cables and Proximitor® sensors.

4. Q: Is this probe suitable for outdoor or humid environments?

   A: Yes, it is IP67-rated and resistant to dust and moisture.

5. Q: What is the operating temperature range?

   A: –40°C to +120°C (–40°F to +248°F), ideal for most industrial conditions.

6. Q: Can I use this probe with older Bently Nevada systems?

   A: It is optimized for 3300 XL systems but may work with select legacy setups.

7. Q: Does the probe require recalibration?

   A: It is factory-calibrated and does not typically require field recalibration.

8. Q: What is the tip diameter?

   A: 8 mm, standard across the 3300 XL series for general-purpose applications.

9. Q: Is the cable shielded?

   A: Yes, it is fully shielded to eliminate EMI and maintain signal integrity.

10. Q: What’s the sensing range?

    A: Typically 0.15 mm to 5.00 mm for displacement and vibration measurement.
