Schneider 140XBP00600 6 Slots Racks Backplanes

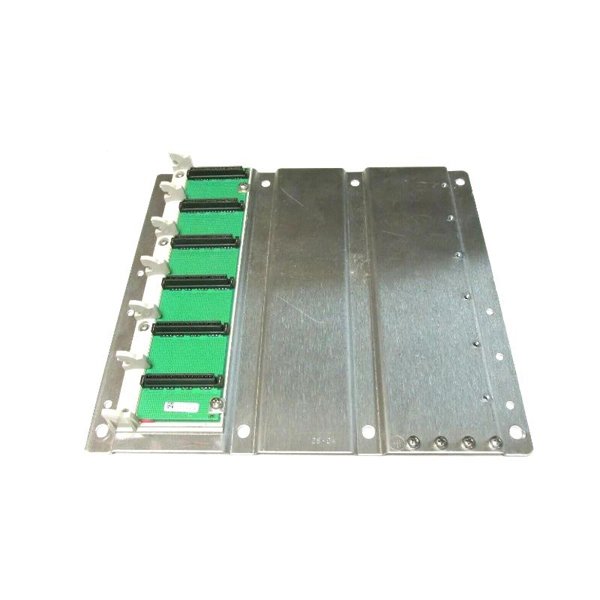

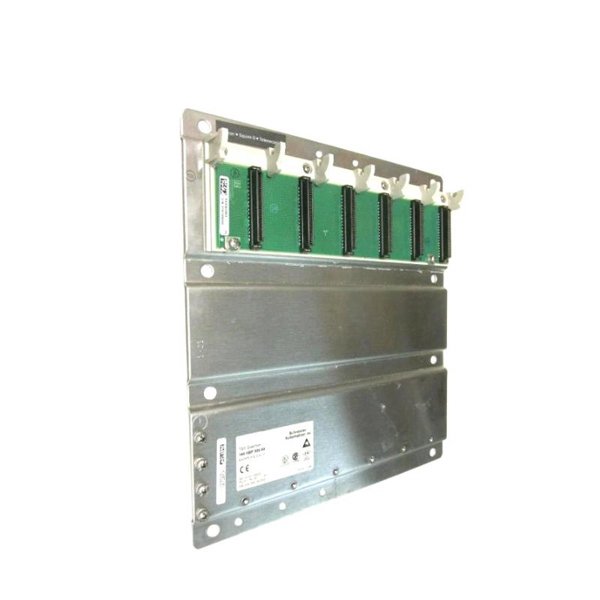

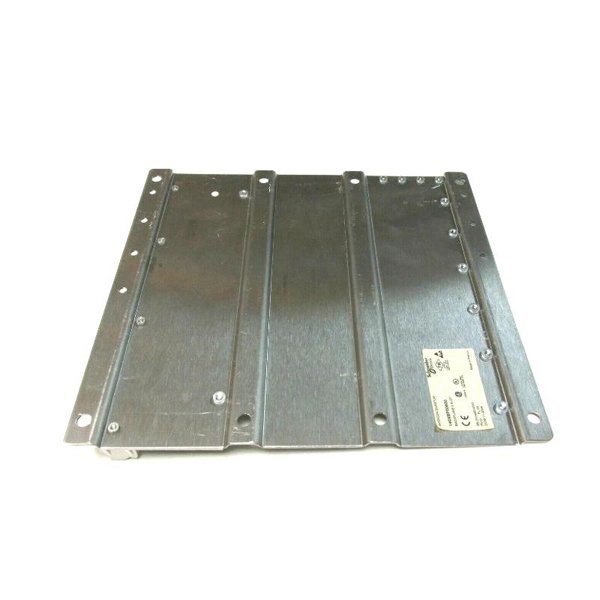

The Schneider Electric 140XBP00600 is a 6-slot backplane rack designed for the Modicon Quantum automation platform. Serving as a critical infrastructure component, this backplane provides the mechanical and electrical interconnection between various Quantum modules, such as CPUs, power supplies, I/O modules, and communication adapters.

Designed for industrial automation systems, the 140XBP00600 allows users to organize their system modules in a compact, secure, and highly reliable format. The 6-slot configuration is ideal for smaller to medium-sized control systems where limited module count or footprint is a requirement. It supports high-speed data exchange among modules via the integrated internal bus and is fully compatible with other Modicon Quantum components.

Backed by Schneider Electric’s engineering standards, this backplane rack ensures long-term durability, ease of installation, and seamless operation in demanding environments.

Product Specifications

Product Applications

The 140XBP00600 backplane is widely implemented in industrial automation solutions where modularity and control system scalability are required. Typical applications include:

• Discrete and process manufacturing systems

• Water and wastewater treatment facilities

• Automotive and assembly line automation

• Power generation and distribution systems

• Chemical and petrochemical plants

• Food and beverage processing plants

Product Advantages

• Robust Industrial Design

  Manufactured with high-grade materials, it ensures reliable operation even in harsh industrial conditions.

• Optimized Slot Configuration

  Six slots provide balanced capacity for compact systems without overextending space or cost.

• Easy Integration

  Seamlessly integrates into existing Quantum control architectures, reducing deployment time.

• Tool-Free Installation

  Module insertion and removal can be done without special tools, enabling fast service and maintenance.

• Secure Mechanical Fit

  Lock-in slots guarantee firm module connections, minimizing vibration and operational disruptions.

• Low Maintenance

  Passive backplane with no moving parts ensures minimal upkeep and fewer failure points.

• Highly Scalable

  Can be combined with other backplanes (e.g., 10-slot or 16-slot) for future system expansion.

FAQs

1. What type of modules are compatible with the 140XBP00600 backplane?

   It supports Modicon Quantum modules such as CPUs, power supplies, discrete and analog I/Os, and communication modules.

2. Is the power supply slot fixed or configurable?

   The left-most slot is reserved for the power supply and is not configurable.

3. Can this rack be installed horizontally and vertically?

   While typically mounted horizontally, it can be mounted vertically if proper ventilation is ensured.

4. Is there any active circuitry in the backplane?

   No, it is a passive backplane and serves only as a mechanical and electrical interface.

5. Can I connect multiple backplanes together?

   Yes, through fiber or coaxial cable expansion modules, multiple racks can be interconnected.

6. Does it include any protective cover or enclosure?

   No, enclosures must be ordered separately based on the installation environment.

7. What is the maintenance requirement for this backplane?

   Very low; occasional dusting and visual inspections are typically sufficient.

8. What material is the frame made of?

   The frame is made of industrial-grade aluminum for enhanced durability and corrosion resistance.

9. How can I identify each slot?

   Each slot is clearly numbered and labeled for proper module positioning and system documentation.

10. Is the 140XBP00600 still supported by Schneider Electric?

    Yes, it remains actively supported and is part of Schneider’s long-term industrial automation product range.
