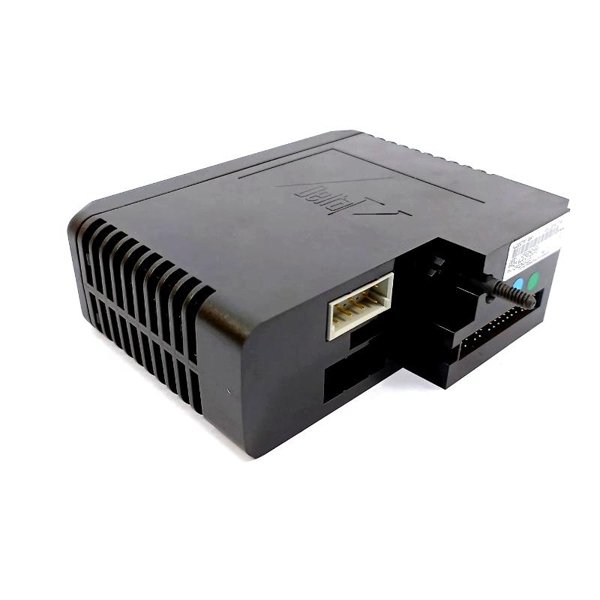

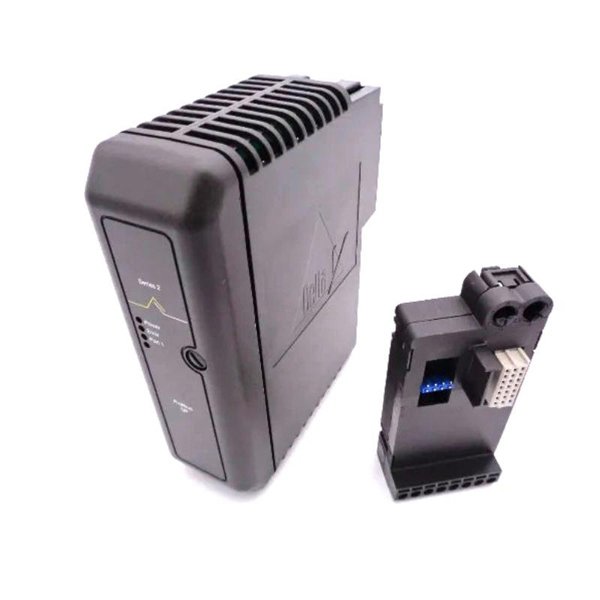

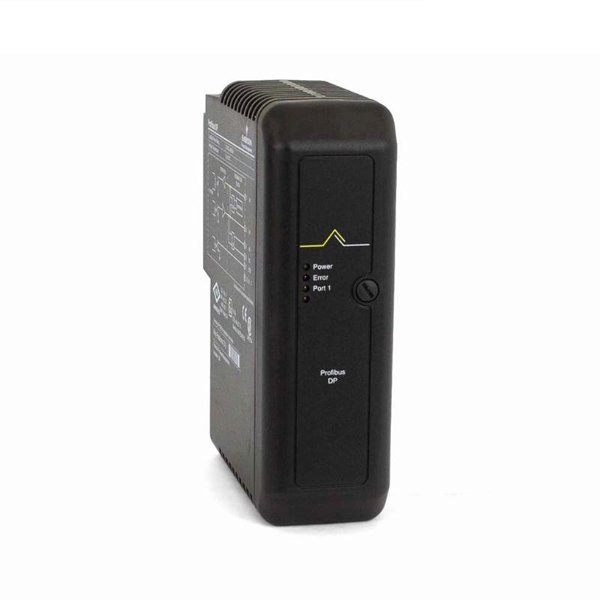

Emerson VE4014 DeltaV Series 2 Profibus DP Card

The Emerson VE4014 is a high-performance DeltaV Series 2 Profibus DP interface card, designed for seamless integration with Profibus DP field devices within the DeltaV M-series control system. It provides robust fieldbus connectivity while maintaining full DeltaV system compatibility, ideal for decentralized process automation.

Product Features

• Supports communication with Profibus DP V1 slave devices

• Integrates seamlessly with DeltaV M-series controllers

• Redundant configuration supported for high availability

• Simple installation with plug-and-play functionality

• Online addition/removal without process disruption

Technical Specifications

Application Fields

• Distributed process control in chemical plants

• Batch and continuous manufacturing processes

• Oil & gas automation systems

• Pharmaceutical production facilities

• Power generation instrumentation

• Water and wastewater treatment systems

Product Advantages

• Flexible Integration: Compatible with a wide range of Profibus DP field devices.

• Modular Expansion: Add or remove modules without shutting down the system.

• Redundancy Support: Ensures process continuity and fault tolerance.

• Space Saving: Compact design enables installation in field junction boxes.

• Reduced Cabling: Fieldbus technology minimizes wiring needs and costs.

Frequently Asked Questions (FAQ)

Q1: What is the main function of the VE4014?

A1: It acts as a Profibus DP interface, enabling DeltaV systems to communicate with Profibus DP slave devices.

Q2: Does VE4014 support redundancy?

A2: Yes, it supports 1:1 redundancy using a redundant pair of interface cards.

Q3: Is VE4014 compatible with both Series 2 and legacy DeltaV systems?

A3: It is specifically optimized for DeltaV M-series (Series 2) hardware.

Q4: Can the VE4014 be hot-swapped?

A4: Yes, it supports online insertion and removal without interrupting the system.

Q5: What types of devices can connect to the VE4014?

A5: Any Profibus DP V0/V1 compliant slave devices such as drives, I/O modules, and transmitters.

Q6: What software version is required to use VE4014?

A6: DeltaV v10.3.1 or later is recommended.

Q7: Is configuration done through DeltaV Explorer?

A7: Yes, DeltaV Explorer is used for commissioning and configuration.

Q8: Does it require external termination or fusing?

A8: The module is designed to work with terminal blocks which may include fusing as needed.

Q9: What happens if the active VE4014 fails in a redundant setup?

A9: The system automatically switches to the standby card without operator intervention.

Q10: Can VE4014 be used in hazardous environments?

A10: Yes, it is certified for use in Class I Division 2 and ATEX Zone 2 environments.
