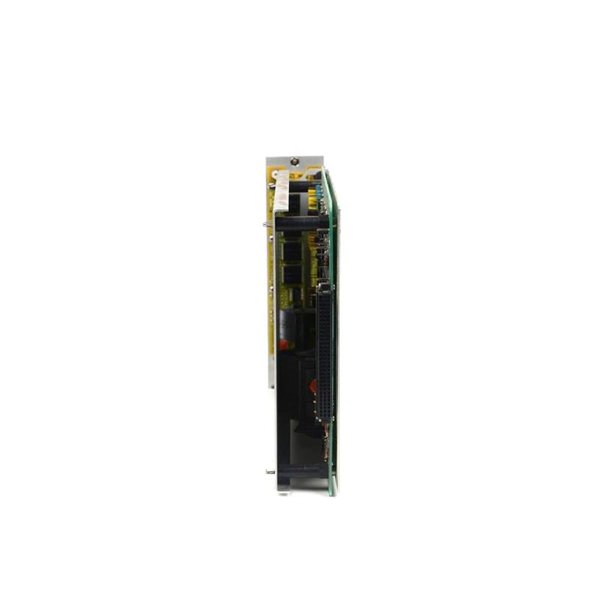

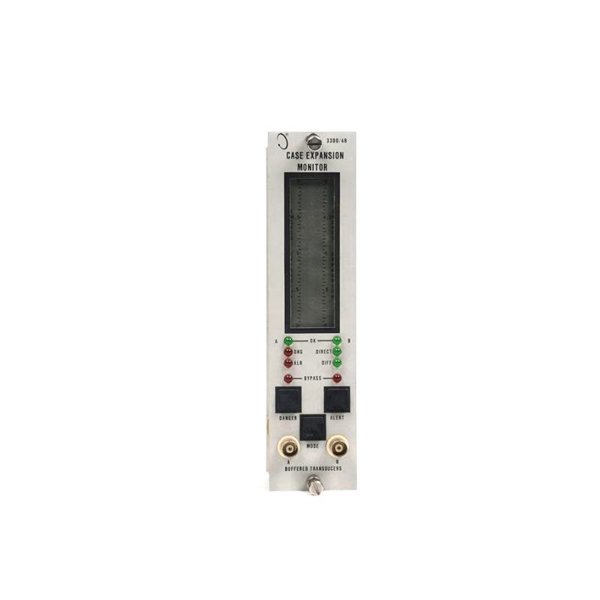

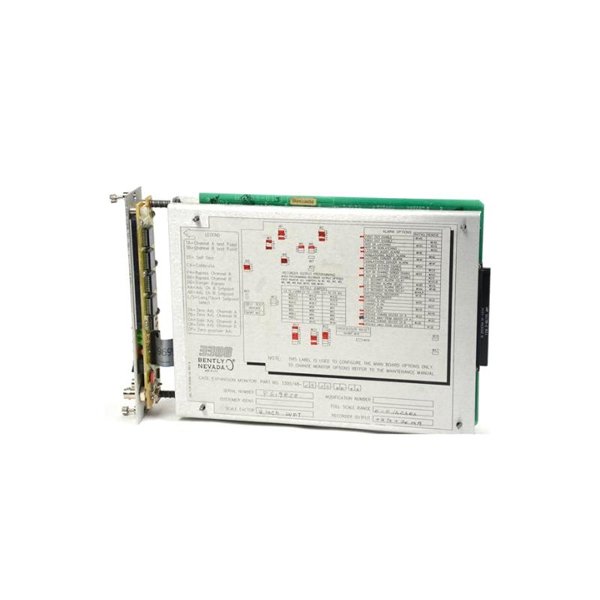

Bently Nevada 3300/48 Case Expansion Monitor

The Bently Nevada 3300/48 Case Expansion Monitor is a high-precision monitoring device designed to measure the thermal expansion of machine cases in large industrial applications. This system plays a crucial role in safeguarding turbines, compressors, and other heavy machinery by detecting excessive thermal growth that could lead to misalignment, stress, or equipment failure. It is an integral part of the Bently Nevada 3300 series, known for its reliability, accuracy, and seamless integration with other condition monitoring systems.

With advanced signal processing and multiple configuration options, the 3300/48 ensures real-time monitoring and provides early warnings of potential machine failures. This enables operators to perform predictive maintenance, thereby reducing downtime and preventing costly repairs.

Product Specifications

Applications

The Bently Nevada 3300/48 Case Expansion Monitor is used in a variety of industries where machinery case expansion is a critical factor for operational stability. Common applications include:

• Steam Turbines: Monitors thermal growth and prevents misalignment.

• Gas Turbines: Ensures casing expansion remains within safe operational limits.

• Compressors: Detects thermal shifts that could cause damage.

• Industrial Generators: Protects against excessive casing deformation.

• Large Motors: Maintains operational integrity by detecting casing expansion.

• Pumps and Gearboxes: Provides early warning against potential casing displacement.

• Power Plants: Helps in predictive maintenance strategies to enhance efficiency.

• Oil & Gas Refineries: Critical for continuous operation and safety compliance.

Advantages

The Bently Nevada 3300/48 Case Expansion Monitor offers numerous benefits, making it an essential component for industrial condition monitoring:

1. High Precision Monitoring: Provides accurate case expansion data for proactive maintenance.

2. Advanced Diagnostics: Enables early fault detection and prevention of catastrophic failures.

3. Seamless Integration: Compatible with the Bently Nevada 3300 series and other monitoring systems.

4. Robust Design: Built to withstand harsh industrial environments.

5. Multiple Output Options: Supports 4-20mA, buffered signal, and digital communication.

6. Flexible Installation: Can be panel or rack-mounted for convenience.

7. Improved Safety & Reliability: Reduces unexpected downtime and improves machinery lifespan.

8. Comprehensive Compliance: Meets industrial safety and quality standards such as CE and ATEX.

9. Low Maintenance Requirements: Designed for long-term operation with minimal upkeep.

10. Cost-Effective Solution: Enhances predictive maintenance strategies, reducing overall costs.

Frequently Asked Questions (FAQ)

1. What is the main function of the Bently Nevada 3300/48?

   It monitors and measures case expansion in industrial machinery to prevent misalignment and damage.

2. Which industries commonly use the 3300/48 monitor?

   Industries such as power generation, oil & gas, and heavy machinery manufacturing use this device for monitoring.

3. How is the 3300/48 installed?

   It can be mounted on a panel or rack within a Bently Nevada 3300 system.

4. What sensors are compatible with the 3300/48?

   It is designed to work with Bently Nevada proximity probes and displacement sensors.

5. Can the 3300/48 be integrated with other monitoring systems?

   Yes, it seamlessly integrates with the Bently Nevada 3300 system and other industrial monitoring platforms.

6. What power supply does it require?

   It operates on an 18V to 32V DC power supply.

7. Does the 3300/48 support digital communication?

   Yes, it provides output signals and buffered communication for data collection.

8. What is the operating temperature range?

   The device operates within -20°C to +70°C.

9. Is it certified for hazardous environments?

   Yes, it meets CE, ATEX, and ISO 9001 standards.

10. How often does the 3300/48 require maintenance?

    It requires minimal maintenance due to its robust industrial design.
