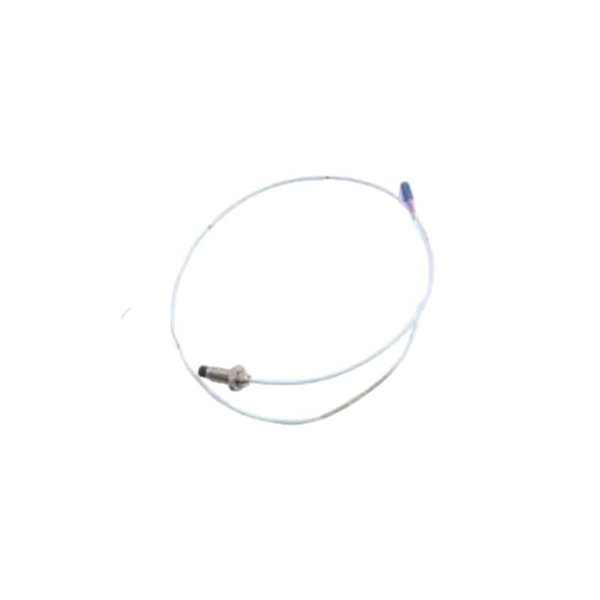

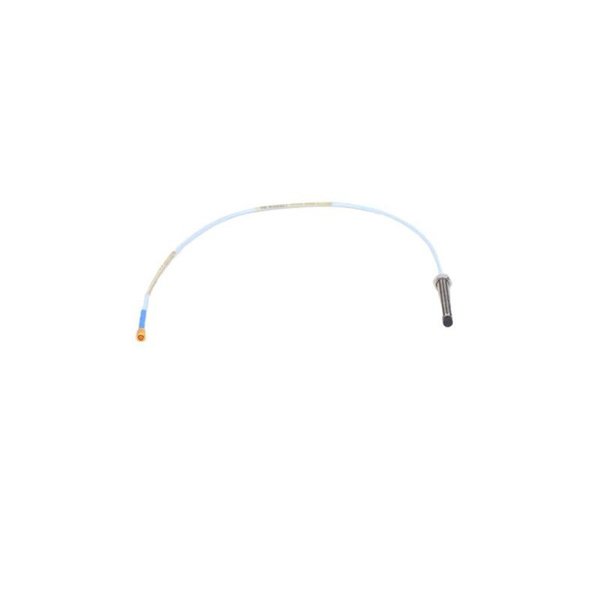

Bently Nevada 330171-00-10-05-02-05 3300 5mm Proximity Probe

The Bently Nevada 330171-00-10-05-02-05 3300 5mm Proximity Probe is a high-performance industrial sensor specifically designed to measure the displacement, alignment, and vibration of rotating equipment components. It is part of the well-regarded 3300 series, known for providing reliable and accurate condition monitoring of critical machinery in various industries.

This 5mm version is ideal for applications where a compact and precise measurement device is required. Its smaller size and high accuracy make it perfect for use in applications where installation space is limited. The probe detects minute changes in the position of rotating components, such as shafts, and provides valuable data that helps with predictive maintenance and early failure detection.

The 3300 5mm Proximity Probe is engineered to withstand harsh industrial environments, including those with high vibration, extreme temperatures, and mechanical shock. The output signal is typically analog (4-20 mA), which makes it easily integrable into existing monitoring and control systems. This probe plays a crucial role in reducing downtime, improving machine reliability, and preventing unplanned equipment failures.

Product Parameters

Product Applications

The Bently Nevada 330171-00-10-05-02-05 3300 5mm Proximity Probe is widely used in industrial applications where precise monitoring of rotating machinery components is critical. Some key applications include:

• Turbine Monitoring: The probe is used to monitor the displacement of turbine shafts to ensure smooth operation and identify misalignment or vibration issues early.

• Compressor Monitoring: It helps track the position of compressor shafts, detecting any potential problems such as imbalance or misalignment before they result in failure.

• Electric Motor Monitoring: The probe is crucial in measuring shaft displacement and vibration in electric motors, which helps in improving efficiency and reliability.

• Pump Monitoring: It monitors the health of pump shafts by detecting any misalignment or displacement that could affect the pump’s performance and lead to premature failure.

• Conveyor Systems: The probe is used to measure the displacement and alignment of shafts in conveyor systems, helping to prevent system breakdowns and improve operational efficiency.

• General Rotating Equipment: It is also applied in other rotating machinery, such as fans, mixers, and blowers, to monitor displacement, vibration, and overall condition.

Advantages of the Product

1. High Precision: The 3300 5mm Proximity Probe offers extremely accurate measurements of shaft displacement, enabling early detection of mechanical issues such as misalignment, imbalance, and wear.

2. Compact Design: With a 5mm sensing range and a total length of 0.5 meter, the sensor is ideal for applications with limited installation space and for monitoring smaller machinery.

3. Durability: This probe is designed to withstand harsh industrial environments, with resistance to high levels of vibration (up to 50 g) and shock (up to 100 g), as well as operating temperatures ranging from -40°C to +85°C.

4. Cost-Effective Predictive Maintenance: The probe helps identify potential issues early, reducing the need for costly emergency repairs and minimizing downtime.

5. Versatile Integration: The 4-20 mA analog output signal makes the sensor compatible with a wide range of monitoring systems, providing flexibility for integration into existing machinery health systems.

6. Long Lifespan: The probe’s robust design and high-quality materials ensure long-lasting performance and reduced maintenance requirements.

7. Wide Frequency Response: The frequency response of the probe ranges up to 50 kHz, allowing it to capture a broad spectrum of displacement and vibration data for more detailed diagnostics.

8. Enhanced Safety: By detecting issues such as misalignment or imbalance early, the probe helps to avoid sudden equipment failures, improving operational safety.

9. Ease of Installation: The 3300 5mm Proximity Probe supports both threaded and bolt-on mounting options, allowing for flexible and easy installation.

10. Industry Trust: As part of the Bently Nevada 3300 series, the probe benefits from the brand’s reputation for delivering accurate, reliable, and durable products in critical monitoring applications.

FAQs

1. What is the sensing range of the 3300 5mm Proximity Probe?

   • The 3300 5mm Proximity Probe has a sensing range of 5 mm, ideal for applications requiring precise measurements of small displacements in rotating machinery.

2. What is the total length of the Bently Nevada 3300 5mm Proximity Probe?

   • The total length of the probe is 0.5 meter, making it compact and suitable for installations in tight spaces.

3. What is the power supply requirement for this proximity probe?

   • The probe operates with a DC power supply in the range of 18-30 V.

4. How does the 3300 5mm Proximity Probe help in predictive maintenance?

   • By measuring shaft displacement and vibration in real-time, the probe helps detect early signs of wear, misalignment, or imbalance, enabling timely maintenance and avoiding unplanned downtimes.

5. How resistant is the 3300 5mm Proximity Probe to vibration?

   • The probe can withstand vibrations up to 50 g in the frequency range of 20 to 2000 Hz, making it suitable for high-vibration environments.

6. What is the shock resistance of the Bently Nevada 3300 5mm Proximity Probe?

   • The probe can resist shocks of up to 100 g (1 ms), ensuring reliable operation even in environments subject to mechanical shocks.

7. What output signal does the 3300 5mm Proximity Probe provide?

   • The probe provides a 4-20 mA analog output signal, which is compatible with most industrial control and monitoring systems.

8. What is the operating temperature range of the Bently Nevada 3300 5mm Proximity Probe?

   • The probe operates in temperatures ranging from -40°C to +85°C, making it suitable for use in extreme environments.

9. What industries benefit from using the 3300 5mm Proximity Probe?

   • Industries such as power generation, oil & gas, petrochemical, manufacturing, and more benefit from the probe’s accuracy and durability in monitoring rotating machinery.

10. How is the 3300 5mm Proximity Probe integrated into existing systems?

    • The probe’s 4-20 mA output makes it easy to integrate into existing machinery monitoring systems for continuous, real-time diagnostics.
