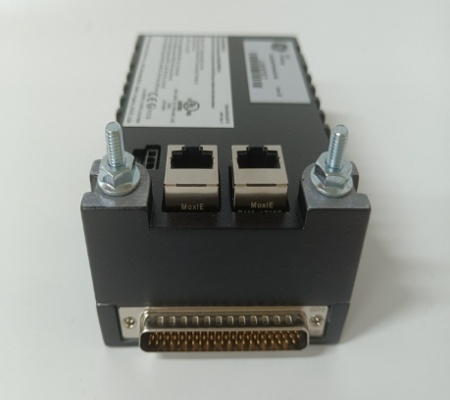

General Electric IS220PPROS1B Emergency Turbine Protection I/O Pack

The IS220PPROS1B is a General Electric manufactured and designed emergency turbine protection I/O package that is mounted on individual Simplex Protection (SPRO) terminal boards to form a typical protection system. Each SPRO is connected to a designated emergency trip board via a cable with DC-37 pin connections at both ends. The turbine primary I/O package PTUR uses the primary trip board to provide primary protection. The PPRO I/O package operates the backup trip board to provide backup protection. The PPRO can handle three different types of speed signals including hardware implemented overspeed, acceleration, deceleration, and basic overspeed.

Frequently asked questions about the product are as follows:

-What are the power requirements and operating temperature of the module?

The power requirement is +32V dc to 18V dc, and the operating temperature range is 0 to +65°C.

-How do the modules achieve communication connections?

The UDH connects via two 10/100BaseTX Ethernet ports, and the IONet connects via three additional 10/100BaseTX Ethernet ports.

-Which series does the IS220PPROS1B belong to? What scenarios is it used for?

The IS220PPROS1B is an embedded controller module of the GE, used in GE distributed turbine control systems, used in power plants, industrial facilities, etc., where turbines are used and emergency protection is used.
