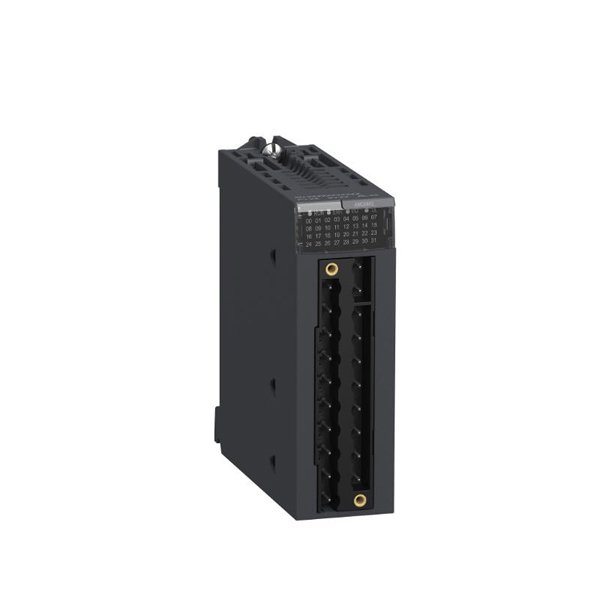

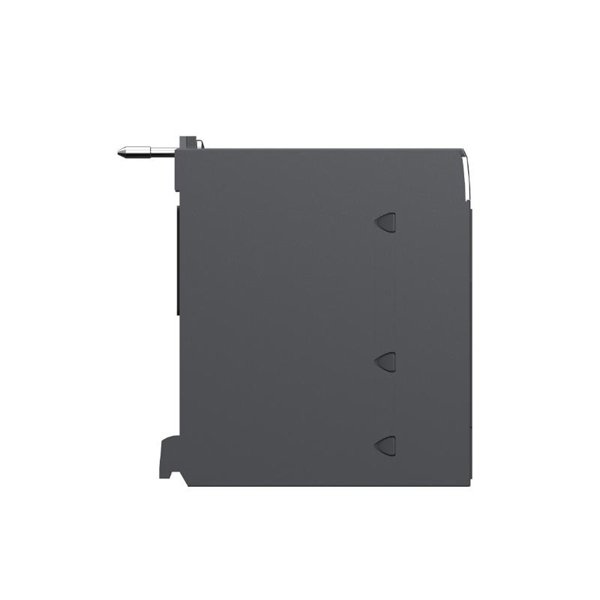

Schneider BMXAMO0802 Analog Non Isolated High Level Output Module

The Schneider Electric BMXAMO0802 is a high-density, analog output module specifically designed for integration into the Modicon M340 programmable automation platform. This module offers eight analog voltage output channels that are non-isolated, making it suitable for cost-effective applications where channel-to-channel isolation is not a requirement. It is commonly used for signal generation to actuators, drives, and other analog control systems in process and discrete automation industries.

With a 0 to 10 V output range, fast update rate, and 12-bit resolution, the BMXAMO0802 provides a reliable and high-performance analog output solution. It is engineered to deliver precise control in systems requiring simultaneous multi-channel analog outputs without isolation overhead.

Product Specifications

Product Applications

• Factory Automation: Ideal for applications that control analog devices such as VFDs, actuators, and analog meters.

• HVAC Systems: Used in controlling dampers, valves, and sensors that operate with voltage signals.

• Water Treatment Plants: Output control for chemical dosing systems and pump drives.

• Packaging Machinery: Provides accurate analog signal control for speed and positioning systems.

• Food and Beverage Processing: Ensures consistent dosing, blending, and flow control.

• Textile and Paper Industries: Manages analog controls in dyeing, tension regulation, and speed matching systems.

Product Advantages

• High Channel Density: Offers 8 output channels in a single module, optimizing space usage in control panels.

• Cost-Effective Design: Non-isolated structure reduces cost while maintaining reliable performance.

• Excellent Signal Fidelity: 12-bit resolution ensures smooth and accurate analog control.

• Fast Response Time: Quick output update rate of 5 ms enables responsive control in dynamic systems.

• Ease of Integration: Seamless connection with the Modicon M340 PLC series and centralized configuration through Unity Pro or EcoStruxure Control Expert.

• Compact Form Factor: Slim design allows easy mounting and optimal space utilization.

• Field-Proven Reliability: Schneider’s stringent manufacturing standards and wide operational temperature range ensure durability in industrial environments.

• Energy Efficient: Draws low power from the rack, reducing overall system power consumption.

• Easy Maintenance: Diagnostic features accessible via the PLC system help reduce downtime.

• Global Compliance: Adheres to international standards for safety and environmental regulations.

Frequently Asked Questions (FAQ)

1. Q: How many analog outputs does the BMXAMO0802 provide?

   A: It provides 8 analog voltage output channels.

2. Q: What is the signal range of each output channel?

   A: Each channel provides a 0 to 10 V analog signal.

3. Q: Are the output channels isolated from each other?

   A: No, the outputs are non-isolated. They share a common ground.

4. Q: What resolution does the module support?

   A: The module supports a 12-bit resolution.

5. Q: Can the module be used in high-noise environments?

   A: It can be used in industrial environments, but for applications requiring isolation, an isolated module is recommended.

6. Q: Which PLC platform is the BMXAMO0802 compatible with?

   A: It is designed specifically for the Schneider Modicon M340 platform.

7. Q: What tools are used to configure the module?

   A: Configuration is typically done through EcoStruxure Control Expert (formerly Unity Pro).

8. Q: Does this module support current output?

   A: No, it only supports voltage outputs.

9. Q: What is the physical size of the module?

   A: Its dimensions are 93 x 33 x 104 mm.

10. Q: What is the typical weight of the module?

    A: It weighs 0.15 kg.
