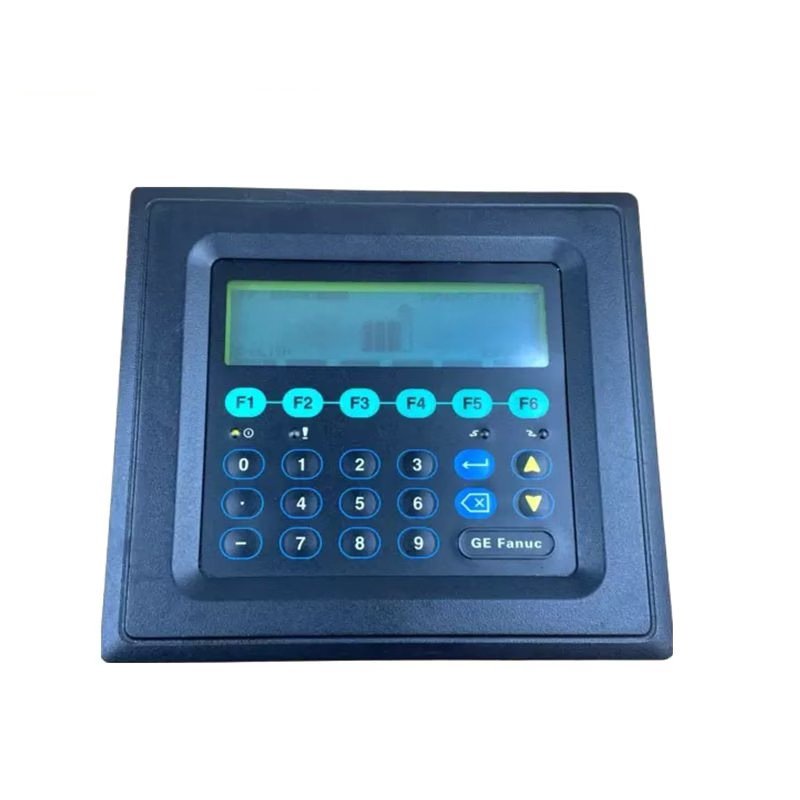

GE Fanuc IC752DSX000-DD DataPanel Operator Interface

The GE Fanuc IC752DSX000-DD is a DataPanel 160 Operator Interface Control Panel, designed for use in industrial automation systems. This interface device enables operators to monitor and control industrial equipment with ease. It features a 240 x 64 pixel display, a keypad for user input, and various communication ports, making it highly versatile for integration with PLCs and other industrial devices.

Technical Specifications

• Part Number: IC752DSX000-DD
• Manufacturer: GE Fanuc (now part of FANUC Corporation)
• Product Type: DataPanel Operator Interface Control Panel

Display and User Interface

• Display Resolution: 240 x 64 pixels
• Display Size: 8.2 cm x 7.4 cm x 2.8 cm (3.2 in x 2.9 in x 1.1 in)
• Backlight: LED for improved visibility in various lighting conditions
• Keypad: 22 keys with 6 function keys per page for easy navigation

Performance and Power

• Processor: AMD AM186ES at 32 MHz for reliable performance
• Memory: 512 KB flash memory, 256 KB SRAM
• Operating Voltage: 12-35 VDC, compatible with a wide range of industrial power supplies
• Power Consumption: 9 watts, ensuring low power usage

Communication and Connectivity

• Communication Ports:
  • RS232/485 serial port
  • RS232 serial port for flexible communication options
• LED Indicators: OK and COMM status LEDs for system monitoring and troubleshooting

Environmental and Physical

• Operating Temperature: 0°C to +60°C (32°F to +140°F)
• Storage Temperature: -20°C to +70°C (-4°F to +158°F)
• Weight: 0.5 kg (1.1 lbs)
