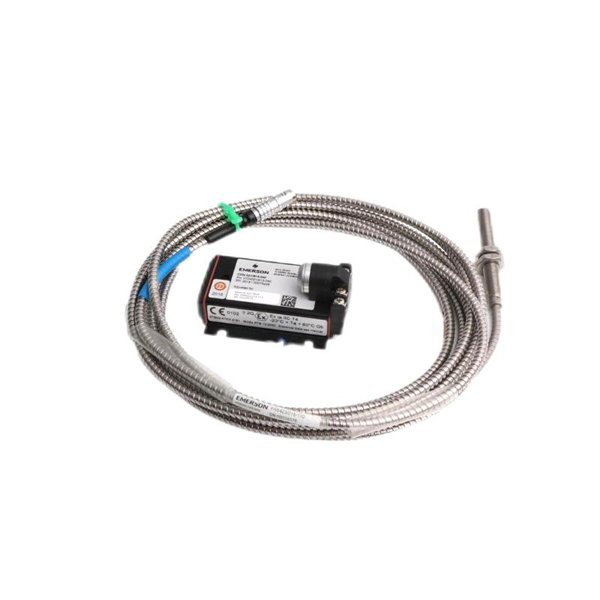

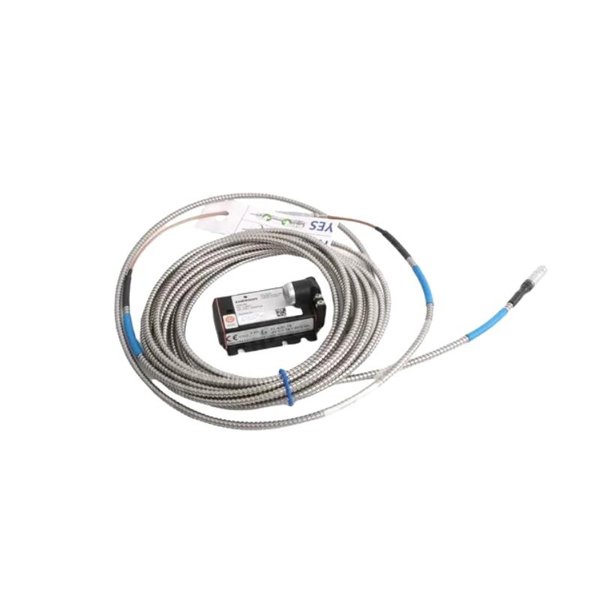

Epro PR6423/012-010+CON021 8mm Eddy Current Sensor

The Epro PR6423/012-010 + CON021 is a high-precision, non-contact eddy current sensor system designed for monitoring the dynamic behavior of rotating machinery. Featuring an 8mm probe diameter and a 10mm shaft length, this sensor is ideal for installations where space is limited but accurate displacement measurements are critical. Paired with the CON021 converter, the system provides a linear voltage output proportional to the measured displacement, enabling real-time diagnostics of shaft vibration, position, and eccentricity.

Technical Specifications

Applications

The PR6423/012-010 + CON021 sensor system is engineered for condition monitoring in environments where compact probe dimensions are essential. Typical industrial applications include:

• Gas and Steam Turbines – Monitoring shaft vibration and thermal expansion

• Compressors – Measuring axial and radial displacement for bearing protection

• Large Electric Motors and Generators – Diagnosing imbalance, misalignment, or rotor eccentricity

• Pumps and Blowers – Ensuring optimal operation by detecting early mechanical degradation

• Gearboxes – Monitoring vibration trends over time for predictive maintenance

• Petrochemical Equipment – Certified for use in demanding industrial plants with temperature or contamination exposure

Advantages

• Compact Design: The 10mm probe length allows installation in confined spaces without compromising measurement accuracy.

• Non-Contact Measurement: Provides accurate data without physical contact, reducing mechanical wear.

• Industrial Durability: Stainless steel construction ensures long-term use in corrosive or high-vibration settings.

• Wide Temperature Tolerance: Withstands harsh temperature fluctuations, suitable for outdoor and plant environments.

• Consistent Output: Offers high linearity and signal repeatability across the full measuring range.

• Flexible Integration: Designed to integrate seamlessly with Epro MMS systems, VM600, or other vibration monitoring platforms.

• Service-Friendly Design: Modular configuration allows for easy probe or converter replacement without full disassembly.

Frequently Asked Questions (FAQ)

1. What is the purpose of the 10mm probe length?

   The 10mm probe length enables installation in tight spaces where longer probes cannot fit, without sacrificing measurement accuracy.

2. Can this sensor measure both axial and radial displacement?

   Yes, depending on the mounting orientation, it can measure both axial and radial displacements.

3. What type of output does the CON021 converter provide?

   It provides a linear voltage output proportional to the target’s displacement.

4. Is the system compatible with third-party monitoring systems?

   Yes, it integrates well with various monitoring systems, including Epro’s own systems and third-party solutions like VM600.

5. Can this sensor be used in high-vibration environments?

   Absolutely. Its robust mechanical design ensures signal stability under high-vibration conditions.

6. What is the standard cable length, and can it be customized?

   The standard cable length is 5 meters, but longer lengths are available upon request.

7. Does the system require recalibration?

   It is factory-calibrated. Recalibration is not typically needed unless the sensor is physically replaced.

8. What mounting accessories are available?

   Threaded bushings, lock nuts, and mounting sleeves are available for different configurations.

9. Is this model available with hazardous area certifications?

   Variants with ATEX and IECEx certifications are available for explosive environments.

10. What is the expected service life of the sensor?

    Typically over 10 years, assuming proper installation and adherence to environmental specifications.
