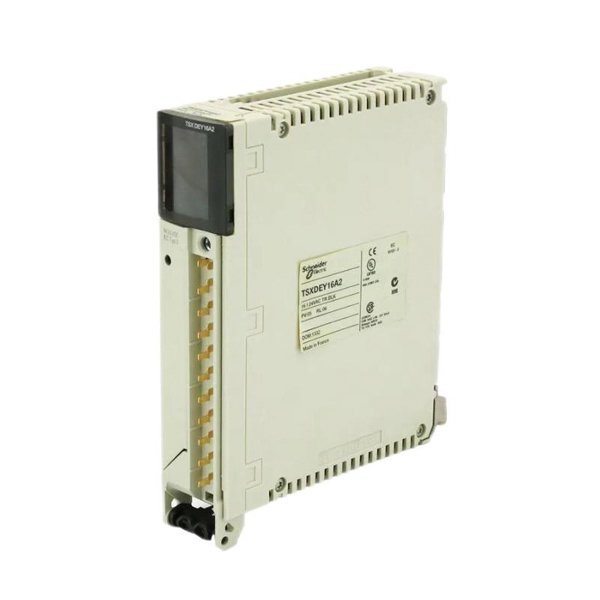

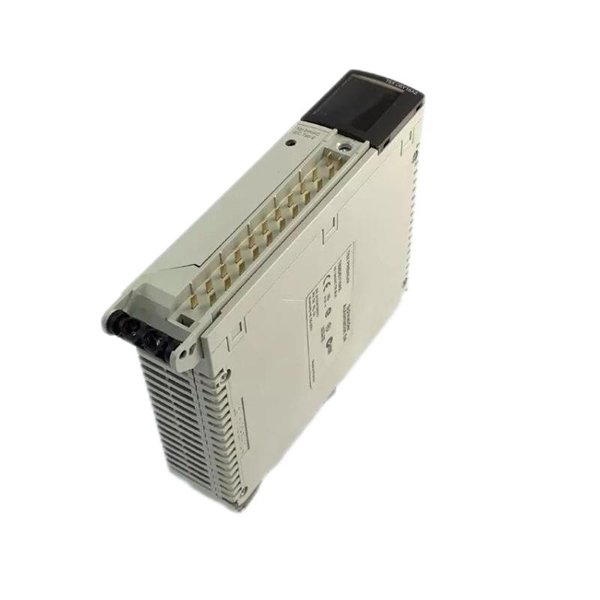

Schneider TSXDEY16A2 Discrete Input Module

The Schneider TSXDEY16A2 is a discrete input module designed for use within Schneider Electric’s Modicon TSX Micro and Premium programmable logic controller (PLC) systems. It provides a reliable interface for receiving digital signals from various field devices such as sensors, switches, and other binary input sources.

This module supports 16 discrete inputs and is ideal for monitoring on/off states in industrial automation processes. The TSXDEY16A2 is engineered for durability and accuracy, ensuring stable signal acquisition under demanding factory conditions. Its design facilitates straightforward integration with Modicon systems, enabling seamless data collection and control operations.

Technical Specifications

Product Advantages

• Reliable Digital Signal Acquisition

  Accurately detects on/off states from multiple discrete field devices simultaneously.

• High Input Density

  Provides 16 inputs in a compact module, reducing the number of required modules for complex systems.

• Robust Electrical Isolation

  Optical isolation protects the controller from electrical noise and surges, improving system reliability.

• Easy Installation and Wiring

  Screw terminal connections ensure secure and straightforward wiring on the factory floor.

• Compatibility with Modicon Systems

  Designed to integrate seamlessly with Modicon TSX Micro and Premium PLC families.

• Durable and Industrial-Grade Design

  Built to withstand harsh factory environments with reliable operation over extended periods.

• Fast Response Time

  Enables real-time monitoring with response times under 10 milliseconds.

Applications

The TSXDEY16A2 discrete input module finds broad application in industrial automation and control:

• Factory Automation Systems

  Monitoring machine start/stop signals, safety interlocks, and status signals.

• Process Control

  Reading digital sensor states for batching, mixing, or process sequencing.

• Building Automation

  Capturing inputs from switches, alarms, and security devices.

• Material Handling

  Monitoring conveyor start/stop inputs, presence sensors, and emergency stops.

• Energy Management

  Integrating digital inputs from power meters or breaker status devices.

• Machine Safety Systems

  Supporting emergency stop circuits and safety interlock monitoring.

FAQs

1. How many discrete inputs does the TSXDEY16A2 provide?

   It provides 16 digital input channels.

2. What is the nominal input voltage for each input?

   The nominal input voltage is 24 V DC.

3. Is the module compatible with both TSX Micro and TSX Premium PLC systems?

   Yes, it is designed for seamless compatibility with both families.

4. What kind of electrical isolation does the module offer?

   It features optical isolation on all input channels.

5. What is the typical response time for input signal detection?

   The response time is typically less than or equal to 10 milliseconds.

6. What are the physical dimensions of the module packaging?

   The package dimensions are 55 × 180 × 260 mm.

7. How much does the module weigh?

   The module weighs approximately 0.31 kg.

8. What connection type is used for wiring inputs?

   Inputs are wired via screw terminal blocks for secure connections.

9. Can the module operate reliably in harsh industrial environments?

   Yes, it is built for durability and reliable operation under industrial conditions.

10. Does the module support any form of input diagnostics?

    Diagnostic features depend on the PLC program; the module itself provides stable input signals for diagnostics.
