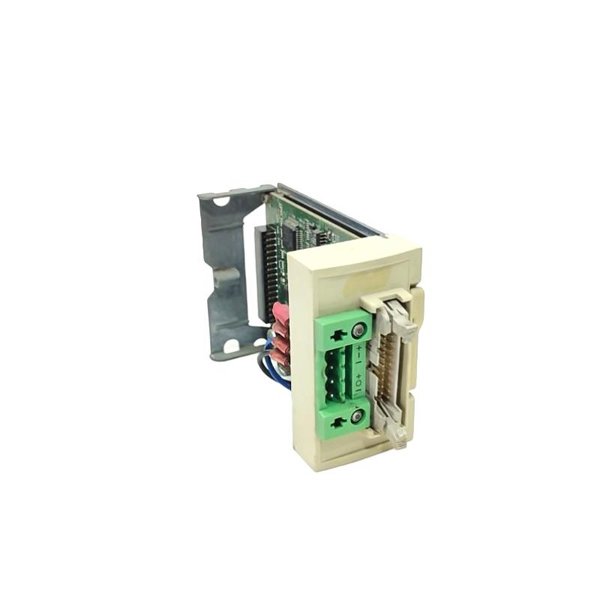

Schneider TSXDMZ16DTK Discrete Solid State I/O Base
Manufacturer:Schneider
Product Number:TSXDMZ16DTK
Product Type:Discrete Solid State I/O Base
Origin:France
Dimensions:125 x 32 x 100 mm
Weight:0.16 kg
Views:50
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider TSXDMZ16DTK is a discrete solid-state I/O base module designed for Modicon Premium automation systems. As a part of the TSX series by Schneider Electric, this module is engineered to integrate seamlessly with industrial control architectures requiring both input and output functions in a single, compact unit.
This hybrid module includes 8 discrete digital inputs and 8 discrete digital outputs, making it an efficient solution for applications where both control and monitoring tasks are required at the same point. Designed for 24 VDC operation, it uses transistor-based switching, which provides faster response and higher reliability than mechanical relays.
It is particularly suited for machine automation, packaging, material handling, and other industrial applications requiring precise control logic and rapid switching.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | TSXDMZ16DTK |
| Manufacturer | Schneider Electric |
| Product Type | Discrete I/O Base Module |
| Series | Modicon TSX Premium |
| Input Channels | 8 digital inputs |
| Output Channels | 8 digital outputs |
| Input Voltage Range | 24 VDC |
| Output Voltage Range | 24 VDC |
| Output Type | Solid-state (Transistor, Source Type) |
| Max Current per Output | 0.5 A |
| Total Module Current | 4 A (shared across outputs) |
| Input Signal Type | Sink/Source |
| Isolation Voltage | 500 V |
| Input Response Time | ≤ 3 ms |
| Output Response Time | ≤ 1 ms |
| Connection Type | 20-pin connector |
| Mounting Type | DIN Rail or Panel Mount |
| Protection | Overload and short-circuit protection |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Ingress Protection (IP) Rating | IP20 |
| Dimensions (W x H x D) | 125 x 32 x 100 mm |
| Weight | 0.16 kg |
| Certifications | CE, UL, CSA, RoHS |
Product Applications
The TSXDMZ16DTK is widely used in industrial automation systems that require compact and dual-purpose I/O modules. Its blend of inputs and outputs makes it ideal for:
-
Automated Assembly Lines
Control actuators and simultaneously receive sensor feedback.
-
Conveyor Control Systems
Trigger motor relays while monitoring position sensors.
-
Packaging Machines
Precise control of stepper motors and packaging sensors.
-
Water/Wastewater Systems
Activate pump circuits while logging input from flow/level sensors.
-
Industrial HVAC Control
Switch relays and read digital status from temperature switches.
-
Robotic Cells
Enable logic control and signal monitoring in robotic arms or end effectors.
Product Advantages
-
All-in-One Design
Combines input and output functions in one module to reduce panel space and wiring.
-
Solid-State Outputs
Transistor-based design ensures faster switching and longer life than mechanical relays.
-
High Signal Density
16 channels (8 in / 8 out) make it ideal for I/O-intensive applications in compact footprints.
-
Fast Response Times
Ensures real-time control and responsiveness for critical automation processes.
-
Flexible Mounting Options
Supports both DIN rail and panel mounting for versatile installation.
-
Integrated Protection
Offers overload and short-circuit protection, enhancing reliability and equipment safety.
-
Industrial Grade Build
Operates reliably under a wide range of environmental conditions.
-
Ease of Integration
Fully compatible with Modicon Premium PLCs and Schneider Electric automation software.
Frequently Asked Questions (FAQ)
-
Q: What is the input/output configuration of TSXDMZ16DTK?
A: It has 8 digital inputs and 8 solid-state (transistor) outputs.
-
Q: Can I use the module for high-speed switching applications?
A: Yes, it supports switching times of ≤ 1 ms, making it ideal for fast processes.
-
Q: What type of output does this module use?
A: It uses source-type solid-state transistor outputs.
-
Q: Is this module suitable for outdoor applications?
A: No, it is rated IP20 and must be installed inside an enclosure.
-
Q: What connector is used for wiring?
A: A 20-pin connector is used for both input and output wiring.
-
Q: Does it support both source and sink input types?
A: Yes, it is compatible with both source and sink digital inputs.
-
Q: What is the total current capacity of the output section?
A: The maximum total output current is 4 A.
-
Q: Can the module be replaced without shutting down the system?
A: No, the system should be powered down before replacing the module.
-
Q: Does it have diagnostic LEDs?
A: Yes, it includes status indicators for inputs and outputs.
-
Q: Is it compatible with Unity Pro or EcoStruxure software?
A: Yes, it integrates with Schneider’s automation software platforms.
