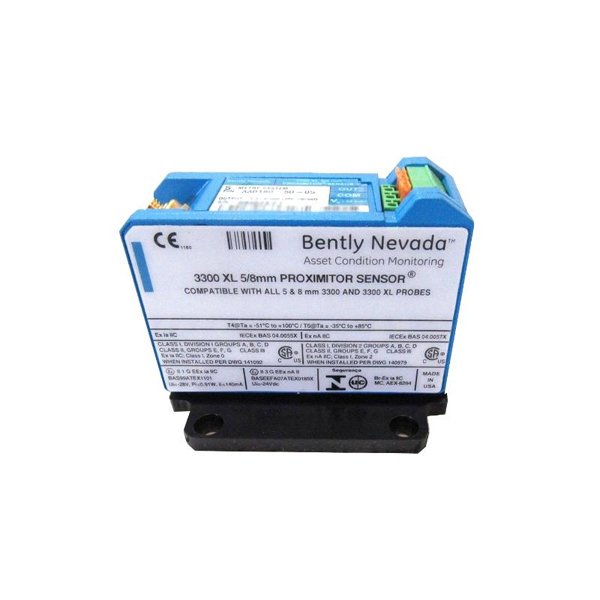

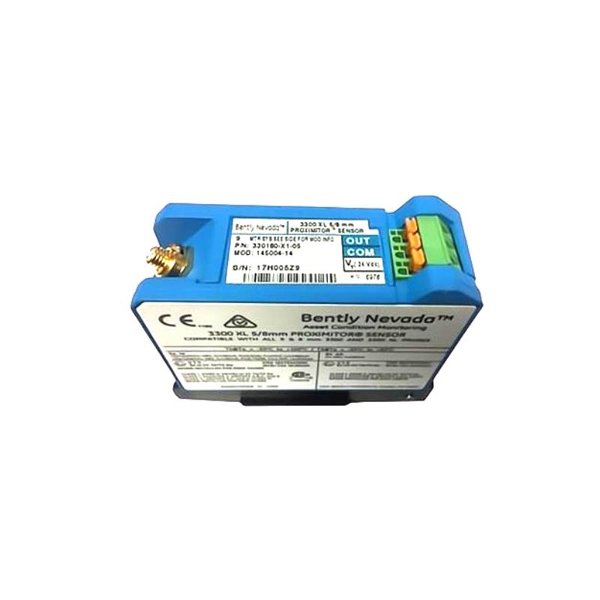

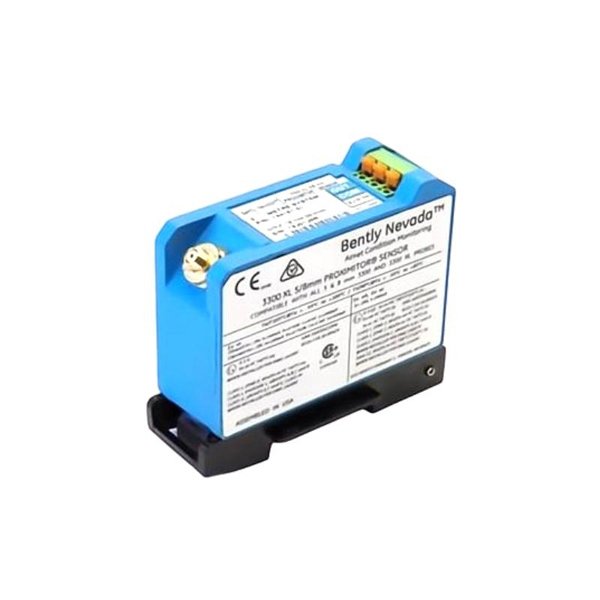

Bently Nevada 330180-X1-CN 145193-09 3300 XL 8mm Proximitor Sensor

The Bently Nevada 330180-X1-CN (Part No. 145193-09) is a high-performance 3300 XL 8mm Proximitor Sensor specifically engineered for demanding industrial environments where accurate, reliable proximity measurements are essential. This sensor is widely used in rotating machinery monitoring systems, providing precise shaft position and vibration data that is critical for the health and safety of turbines, compressors, pumps, motors, and generators.

Designed as part of the trusted 3300 XL Series, this sensor features enhanced EMI/RFI immunity, extended temperature tolerance, and long-term stability in harsh environments. The robust design makes it ideal for integration into both existing and new condition monitoring systems.

Product Specifications

Applications

The 330180-X1-CN Proximitor Sensor is suitable for a wide range of industrial monitoring applications, particularly where precision and durability are vital:

• Steam, gas, and hydro turbines

• Industrial compressors

• Gearboxes and generators

• Pumps and fans

• Electric motors

• Critical rotating machinery in oil & gas, power generation, and chemical processing industries

Product Advantages

• High Accuracy & Stability: Delivers consistent, linear output for proximity and vibration measurements even in fluctuating temperatures and electromagnetic environments.

• Robust Industrial Design: Built to withstand harsh industrial conditions including vibration, oil contamination, and high humidity.

• Field Proven: Part of the widely adopted 3300 XL series, trusted by OEMs and end-users globally.

• Modular & Configurable: Interchangeable with other XL components, allowing for flexible installations.

• Long Cable Runs Supported: Maintains signal integrity over long extension cable distances (up to 9 meters).

• Global Certifications: Available in versions that meet ATEX and CE requirements for hazardous environments.

Frequently Asked Questions (FAQ)

1. What is the function of the 330180-X1-CN 8mm Proximitor Sensor?

   It measures shaft displacement and vibration relative to the sensor probe, typically in rotating equipment.

2. Can this sensor operate in explosive environments?

   Yes, select variants of the 330180-X1-CN model comply with ATEX and other hazardous location certifications.

3. Is the 330180-X1-CN backward compatible with older Bently systems?

   Yes, it’s compatible with previous 3300 series probes and extension cables.

4. What is the linear measurement range of this proximitor sensor?

   It provides accurate, linear output within a range of 2mm (80 mils).

5. How long can the probe cable be?

   Depending on the configuration, cable lengths from 1 to 9 meters are supported.

6. What connector type is used on this model?

   The sensor supports MIL-C-5015 or ClickLoc connectors depending on the configuration.

7. What kind of maintenance is required for this sensor?

   Minimal maintenance is needed, primarily cleaning the probe tip and checking connection integrity.

8. How is the sensor mounted?

   It uses threaded mounting, typically 3/8-24 UNF or M10, for secure and vibration-resistant installation.

9. Does this sensor support remote monitoring systems?

   Yes, it integrates with Bently Nevada 3500 and other monitoring systems supporting proximity inputs.

10. Is it possible to use this sensor in high humidity environments?

    Yes, the sensor is designed to operate reliably in up to 95% non-condensing humidity.
