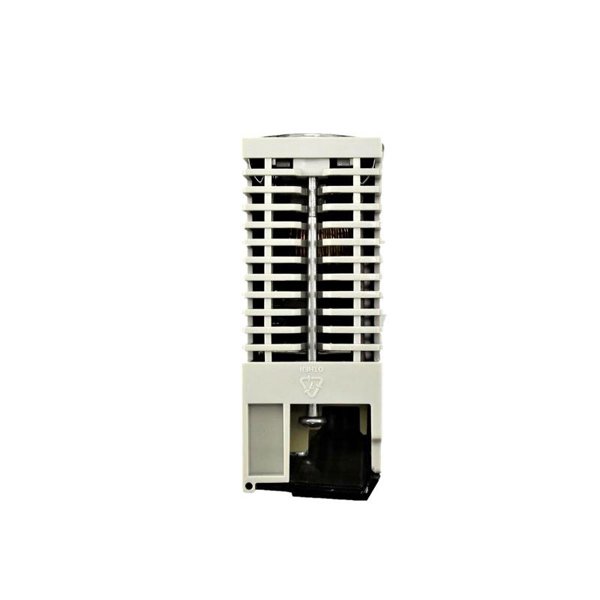

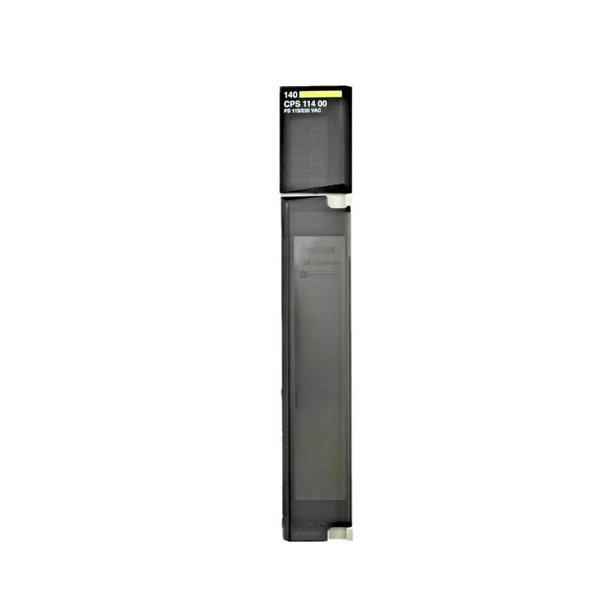

Schneider 140CPS11400C Power Supply Module

The Schneider 140CPS11400C Power Supply Module is an advanced power supply designed to deliver reliable, efficient power to Schneider Electric’s PLCs and associated control systems. It operates with a wide input voltage range and offers superior protection against power surges, overcurrents, and thermal issues. The module’s compact design ensures that it can fit into various control panel configurations, saving valuable space without compromising on performance.

This power supply module provides a constant 24V DC output, supporting up to 5A of current, and is fully compliant with international safety standards. It is equipped with overvoltage and overcurrent protection to safeguard your system against potential damage caused by electrical faults.

Technical Specifications

Applications

The Schneider 140CPS11400C Power Supply Module is designed for use in a variety of industrial and commercial automation systems. Here are some key applications:

1. Industrial Automation: The power supply is commonly used to support PLC systems in manufacturing plants, providing reliable power for control and monitoring functions.

2. Process Control: It is used in process control systems, where consistent power is crucial to ensure that industrial processes run smoothly.

3. Building Automation: In building management systems, it powers PLCs that control HVAC systems, lighting, and security, providing the necessary power for automation tasks.

4. Energy Management: Used in energy management systems to power control devices that monitor and optimize energy consumption in industrial settings.

5. Machine Control: This module is used in machine control applications to provide reliable power to PLCs and other machine control systems.

6. Safety Systems: The 140CPS11400C is also used in critical safety applications, ensuring continuous operation of safety-related functions.

Advantages

1. High Efficiency: The 140CPS11400C boasts an efficiency of 92%, ensuring low energy consumption and reducing operating costs in the long run.

2. Wide Input Voltage Range: With an input voltage range of 85-264V AC, this power supply can be used globally, eliminating the need for region-specific configurations.

3. Compact and Robust Design: The module is compact yet rugged, making it suitable for installation in industrial environments where space is limited, and reliability is essential.

4. Comprehensive Protection Features: The 140CPS11400C includes overcurrent, overvoltage, and thermal protection, ensuring the safety of the power supply and the connected systems.

5. Versatile Application: This power supply module is compatible with Schneider Electric’s Modicon M340 and Premium PLCs, providing a versatile power solution for various automation applications.

6. Temperature Tolerance: With an operating temperature range of -25°C to 70°C, the 140CPS11400C performs well in both cold and hot environments.

7. CE and UL Certified: The module complies with global safety standards, ensuring it meets high-quality and safety requirements for industrial systems.

8. Low Maintenance: Designed for long-term operation with minimal maintenance, the 140CPS11400C offers a reliable solution for continuous use.

9. Fast Installation: The module is designed for easy and quick installation on DIN rails, ensuring minimal downtime and fast setup.

10. Cost-Effective: By reducing energy consumption and enhancing system reliability, the 140CPS11400C offers a cost-effective solution for industrial power needs.

FAQ

1. What is the purpose of the 140CPS11400C?

   • The 140CPS11400C is a power supply module used to convert AC voltage (85-264V) to a stable 24V DC output, providing power to Schneider Electric’s PLCs and other control systems.

2. What is the output power of the 140CPS11400C?

   • The module provides a maximum output power of 120W (5A at 24V DC).

3. What is the protection provided by the 140CPS11400C?

   • The module is equipped with overcurrent, overvoltage, and thermal protection, safeguarding both the power supply and the connected devices.

4. How is the 140CPS11400C mounted?

   • The power supply module is designed for DIN rail mounting, making it easy to install in industrial control panels.

5. What is the efficiency of the 140CPS11400C?

   • The 140CPS11400C has an efficiency of 92%, ensuring optimal energy usage and reduced operating costs.

6. What is the operating temperature range of the 140CPS11400C?

   • The 140CPS11400C operates within a temperature range of -25°C to 70°C, making it suitable for a wide range of industrial environments.

7. Can the 140CPS11400C be used outdoors?

   • While the module is designed for industrial use, it should be housed in a protective enclosure if used outdoors to prevent exposure to weather conditions.

8. What certifications does the 140CPS11400C have?

   • The 140CPS11400C is CE and UL certified, meeting global safety and performance standards.

9. What is the weight of the 140CPS11400C?

   • The 140CPS11400C weighs 0.92 kg.

10. What is the maximum output current of the 140CPS11400C?

    • The module provides a maximum output current of 5A at 24V DC.
