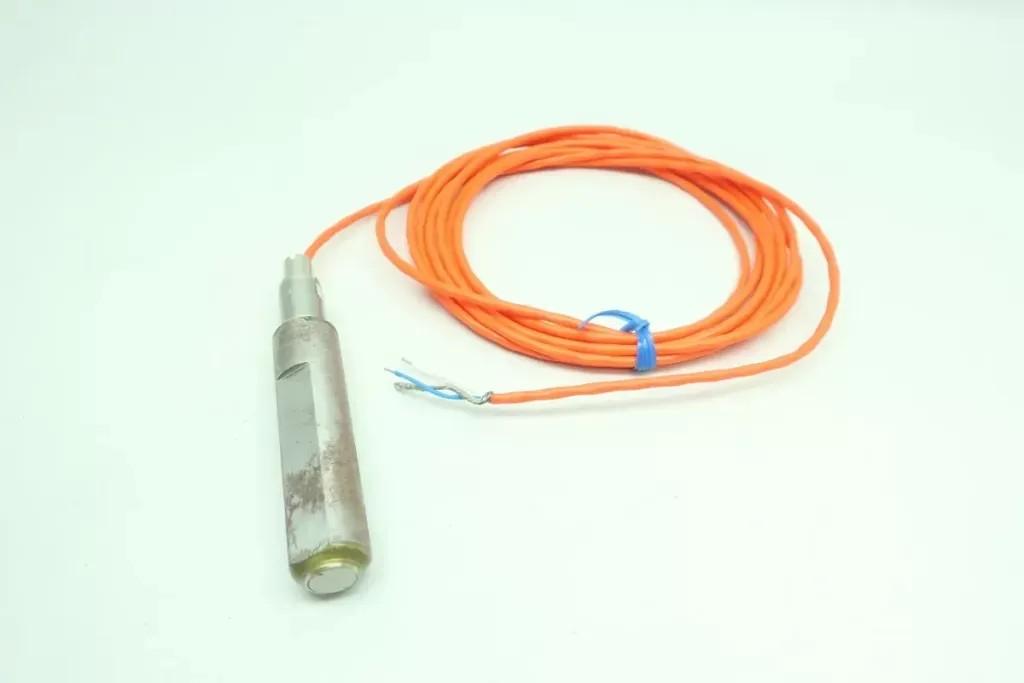

Epro PR9376/010-011 Hall Effect Speed/ Proximity Sensor
Manufacturer: Emerson
Product No.: EPRO PR9376
Part Number: PR9376/010-011
Condition： Brand NEW & in Stock
Product Type: Hall Effect Speed/ Proximity Sensor
Product Origin: Germany
Payment:T/T, Western Union
Dimensions: 16cm*16cm*12cm
Weight: 0.21kg
Warranty: 12 months
Product Description
Non-contact Hall effect sensor designed for speed or proximity measurements on critical turbomachinery applications such as steam, gas and hydro turbines,compressors, pumps, and fans.
EPRO PR9376/010-011 Hall Effect Speed/ Proximity Sensor
| Dynamic Performance | |
| Output | 1 AC cycle per revolution/gear tooth |
| Rise/Fall Time | 1 µs |
| Output Voltage (12 VDC at 100 Kload) | High >10 V / Low <1V |
| Air Gap | 1 mm (Module 1) |
| 1.5 mm (Module ≥2) | |
| Maximum Operating Frequency | 12 kHz (720,000 cpm) |
| Trigger Mark Limited to | Spur Wheel, Involute Gearing Module 1 |
| Material ST37 | |
| Measuring Target | |
| Target/Surface Material |
Magnetic soft iron or steel
(non stainless steel) |
| Environmental | |
| Reference Temperature | 25°C (77°F) |
| Operating Temperature Range | -25 to 100°C (-13 to 212°F) |
| Storage Temperature | -40 to 100°C (-40 to 212°F) |
| Sealing Rating | IP67 |
| Power Supply | 10 to 30 VDC @ max. 25mA |
| Resistance | Max. 400 Ohms |
| Material | Sensor – Stainless steel; Cable – PTFE |
| Weight (Sensor only) | 210 grams (7.4 oz) |
Compliance and Certifications
| CE |
2014/30/EU (EN 60947-5-2)
2014/35/EU 2011/65/EU (EN 63000) |
Ordering Information Sensor
|
Model
No. |
/ 0 Armored Cable X 0 – 0 | Cable Length X | 1 | |||||
| PR9376 |
0 Without
1 With |
0 3m
1 5m 2 10m |
Example: PR9376/000-001
PR9376 sensor with 3 meter non-armored cable, Open Cable End

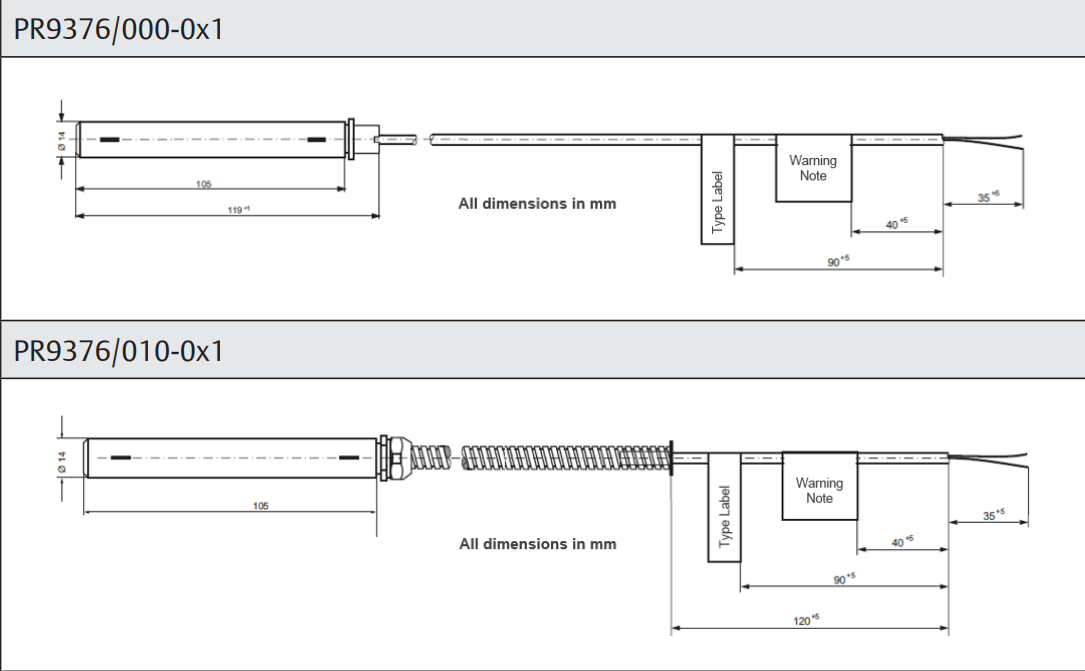

Dimensions
