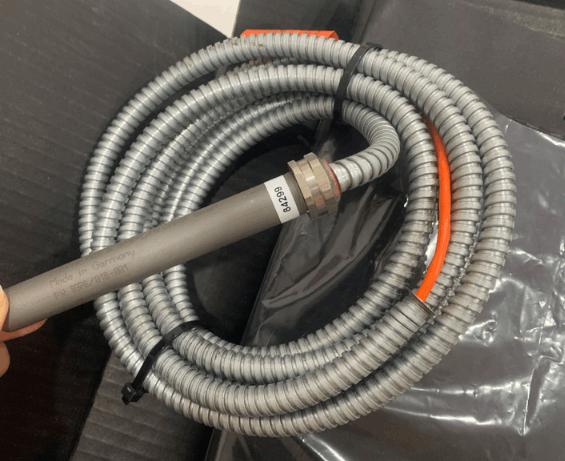

Epro PR9376/010-001 Hall Effect Speed/ Proximity Sensor
Item Number:PR9376/010-001
Brand:EPRO
Lead Time: In stock
Description: Hall Effect Speed/ Proximity Sensor
Payment: T/T
Product Description
EPRO PR9376/010-001 Hall Effect Speed/ Proximity Sensor uses the Hall Effect principle to accurately measure the speed of an object or detect proximity by sensing changes in the magnetic field. It has many advantages: the non-contact design avoids direct contact with the object being measured, greatly reduces wear and failure, and significantly extends the service life of the sensor, especially suitable for measuring high-speed rotating or moving parts.
Fuctions & Features
- Non-contact measurement: EPRO PR9376/010-001 adopts non-contact design, which avoids direct contact with the measured object, reduces wear and failure, and increases the service life of the sensor. It is especially suitable for measuring high-speed rotating or moving parts.
- Wide application scenarios: EPRO PR9376/010-001 can be used in a variety of turbomachinery applications, including steam, gas and water turbines, as well as compressors, pumps and fans, etc., to meet the measurement needs of different industrial fields.
- Fast response: The rise/fall time of EPRO PR9376/010-001 is only 1 microsecond, which can quickly respond to changes in the speed or position of the measured object, capture measurement data in real time and accurately, and ensure timely and accurate measurement.
- Stable output signal: Under the conditions of 12 VDC and 100 K load, the output voltage of EPRO PR9376/010-001 is stable, with a high voltage greater than 10 V and a low voltage less than 1 V, ensuring the clarity of the signal and facilitating subsequent signal processing and analysis.
Specifications
|
Category |
Specification |
|
Electrical Characteristics |
|
|
Output |
1 AC cycle per revolution/gear tooth |
|
Rise/Fall Time |
1 microsecond |
|
Output Voltage (12 VDC, 100 K load) |
High > 10 V, Low < 1 V |
|
10 to 30 VDC, 25 mA max |
|
|
Resistance |
400 ohms max |
|
Measurement Characteristics |
|
|
Air Gap |
1 mm for modulus 1, 1.5 mm for modulus ≥ 2 |
|
Maximum Operating Frequency |
12 kHz (equivalent to 720,000 rpm) |
|
Trigger Mark |
Limited to modulus 1 spur gears, involute gears, ST37 material |
|
Measurement Target |
Target/surface material is soft magnet or steel (not stainless steel) |
|
Environmental Characteristics |
|
|
Reference Temperature |
25°C (77°F) |
|
Operating Temperature Range |
-25°C to 100°C (-13°F to 212°F) |
|
Storage Temperature |
-40°C to 100°C (-40°F to 212°F) |
|
Sealing Rating |
IP67 |
|
Physical Properties |
|
|
Sensor Material |
Stainless steel |
|
Cable Material |
Polytetrafluoroethylene (PTFE) |
|
Sensor Weight |
210 g (7.4 oz) |
Loading comments...
