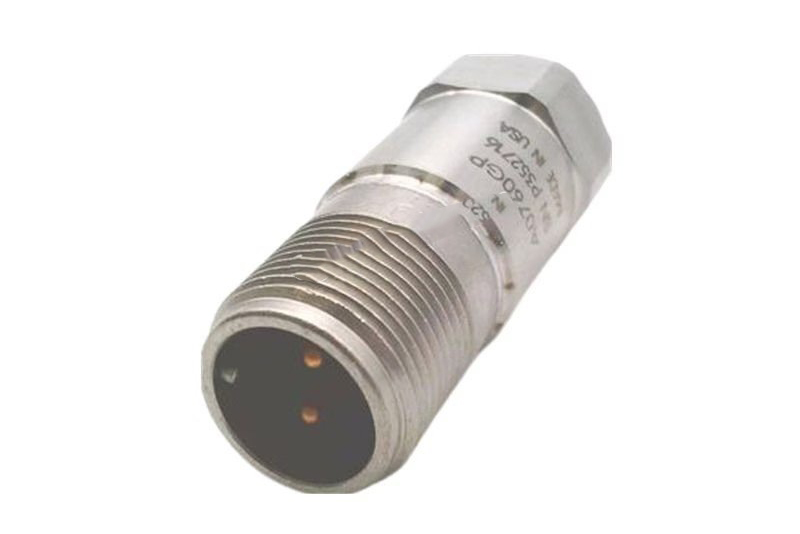

Epro A0760GP Premium Industrial Accelerometer
Product Number: A0760GP
Category: Industrial Accelerometer / Vibration Sensor
Sensor Type: Piezoelectric accelerometer
Measurement Type: Vibration acceleration
Application: Casing vibration, bearing vibration monitoring
Features: Premium industrial grade
Product Description
The EPRO A0760GP is a premium industrial accelerometer for accurate vibration monitoring in critical machinery. Engineers use it across various industries to ensure equipment reliability and prevent failures. Its rugged stainless steel housing and welded hermetic seal allow long-term use in harsh environments. Moreover, the wide frequency response and high sensitivity make it ideal for predictive maintenance and diagnostics using advanced tools like the AMS 2140.
Technical Specifications
Performance
- Sensitivity: 100 mV/g (±5%) or 10.2 mV/m/s²
- Measurement Range: ±50 g (±490 m/s²)
- Frequency Range (±3 dB): 0.5 to 10,000 Hz (30 to 600,000 cpm)
- Mounted Resonant Frequency: 25 kHz nominal
- Amplitude Linearity: ±1% (0-based straight line method)
- Transverse Sensitivity: ≤7%
- Broadband Resolution (1–10 kHz): 350 μg (3,434 μm/s²)
Electrical
- Excitation Voltage: 18 to 28 VDC
- Constant Current: 2 to 20 mA
- Output Impedance: <200 ohms
- Output Bias: 8 to 12 VDC
- Discharge Time Constant: ≥0.3 seconds
- Settling Time: ≤2 seconds
- Case Isolation: >10⁸ ohms
Mechanical
- Shock Limit: 5,000 g peak (49,050 m/s²)
- Operating Temperature Range: -54°C to +121°C (-65°F to +250°F)
- Sealing: Welded hermetic
- Weight: 51 grams (1.8 oz / 0.15 lbs)
- Mounting Thread: ¼-28 UNF-2B
- Mounting Torque: 2 to 5 lb-ft (2.7 to 6.8 Nm)
- Sensor Element / Geometry: Ceramic / Shear
- Case Material: Stainless steel
- Connector Type: MIL-C-5015, 2-pin (top-exit)
