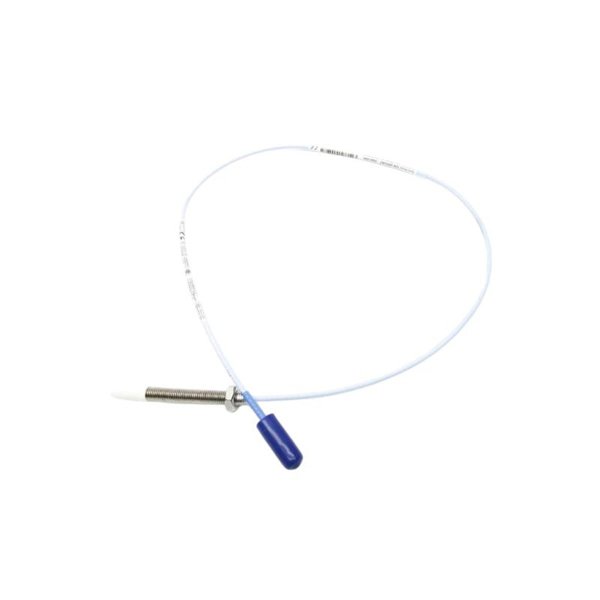

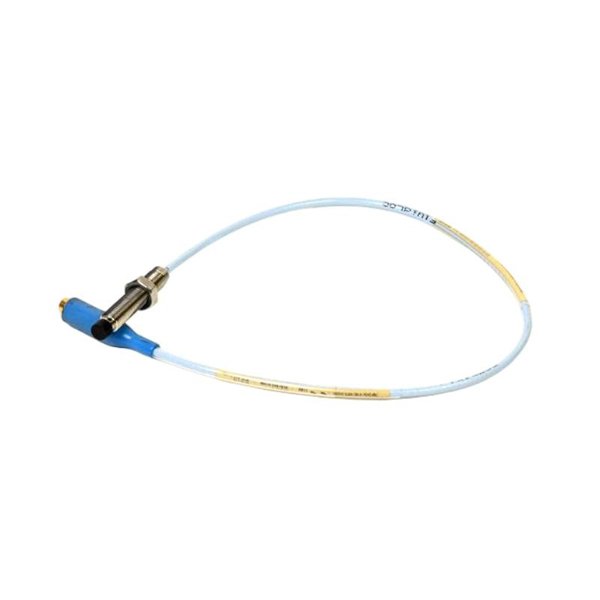

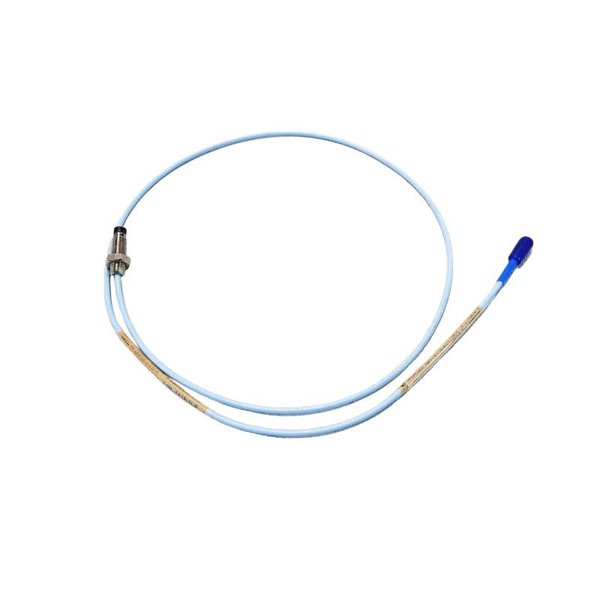

Bently Nevada 330171-00-20-05-02-05 3300 5mm Proximity Probe

The Bently Nevada 330171-00-20-05-02-05 3300 5mm Proximity Probe is a high-precision vibration monitoring sensor designed for industrial machinery and equipment. This proximity probe plays a crucial role in measuring shaft displacement, vibration, and other critical parameters in rotating machinery such as turbines, motors, and pumps.

This probe operates on the principle of eddy current sensing and is widely used in predictive maintenance applications for condition monitoring systems. The 5mm nominal gap ensures accurate measurement of the target object’s position, making it a reliable solution for early detection of faults and performance degradation in rotating assets. Its 0.5 meter total length and 0.162 kg weight make it ideal for installations in confined spaces, providing both ease of use and durability in harsh industrial environments.

Designed by Bently Nevada, a leader in condition monitoring and predictive maintenance technologies, this proximity probe is engineered to withstand the demands of industrial applications, offering long-term reliability and high performance.

Product Specifications

Product Applications

The Bently Nevada 330171-00-20-05-02-05 Proximity Probe is ideal for a wide range of industrial applications, particularly in vibration monitoring and predictive maintenance systems. Its main applications include:

• Turbines and Compressors: For monitoring shaft displacement and ensuring early detection of imbalances or misalignments in critical machinery.

• Motors and Pumps: Used to track shaft position and vibration to help identify wear or potential failure, ensuring safe and efficient operation.

• Rotating Equipment: Employed in a wide range of rotating machinery, where precise displacement and vibration monitoring are required for early fault detection.

• Industrial Gearboxes: Helps in detecting gear misalignment, backlash, or bearing wear by measuring the displacement of the gearbox shafts.

• Condition Monitoring Systems: Integrates with condition monitoring and predictive maintenance systems to provide real-time data on equipment health and performance.

• HVAC Systems: Used for monitoring motors and fans to ensure optimal performance and prevent overheating or failure due to excessive vibration.

Product Advantages

1. High Precision: The 5mm nominal gap allows for accurate measurement of shaft displacement, ensuring precise fault detection.

2. Reliable Performance: Designed to work with eddy current sensing, the probe delivers consistent and accurate results, even in harsh industrial environments.

3. Compact and Lightweight: With a total length of 0.5 meter and a weight of 0.162 kg, the probe is compact and easy to install in tight spaces.

4. Wide Temperature Range: The probe can operate in environments with temperatures ranging from -40°C to +85°C, making it suitable for use in diverse industrial settings.

5. Easy Integration: Features an M12 (5-pin) connector type, which simplifies installation and ensures compatibility with a wide range of systems.

6. Durable Construction: Built to withstand the rigors of industrial environments, ensuring a long service life and reliable performance.

7. Real-time Data: Provides real-time data for vibration monitoring and shaft displacement, helping to predict potential failures and reduce downtime.

8. Versatile Applications: It can be used across various industries, including power generation, manufacturing, and chemical processing.

9. Condition Monitoring Compatibility: Ideal for integrating with condition monitoring systems, facilitating predictive maintenance and helping to extend the lifespan of equipment.

10. High Sensitivity: Delivers high sensitivity measurements, detecting even the smallest changes in displacement, which is critical for early fault detection.

FAQ

1. What is the gap size for the Bently Nevada 330171-00-20-05-02-05?

The nominal gap for this proximity probe is 5mm.

2. What is the sensing principle of this probe?

The 330171-00-20-05-02-05 utilizes eddy current sensing for accurate displacement and vibration measurements.

3. What is the maximum operating temperature for this probe?

It operates effectively in temperatures from -40°C to +85°C.

4. How long is the Bently Nevada 330171-00-20-05-02-05 proximity probe?

The total length of the probe is 0.5 meter.

5. What is the weight of the Bently Nevada 330171-00-20-05-02-05?

The probe weighs 0.162 kg, making it compact and lightweight for easy installation.

6. What types of equipment is this probe used for?

This probe is commonly used for monitoring turbines, compressors, motors, pumps, and gearboxes.

7. What is the typical output type of this proximity probe?

It typically provides analog outputs (current or voltage) for easy integration with monitoring systems.

8. What is the range of displacement that can be measured by this probe?

The probe typically measures a nominal range of ±5 mm.

9. How is the Bently Nevada 330171-00-20-05-02-05 mounted?

It is designed for fixed mounting in various industrial machines and equipment.

10. What industries can benefit from this proximity probe?

This probe is suitable for industries such as power generation, manufacturing, chemical processing, and any industry with rotating machinery that requires precise monitoring of vibration and displacement.
