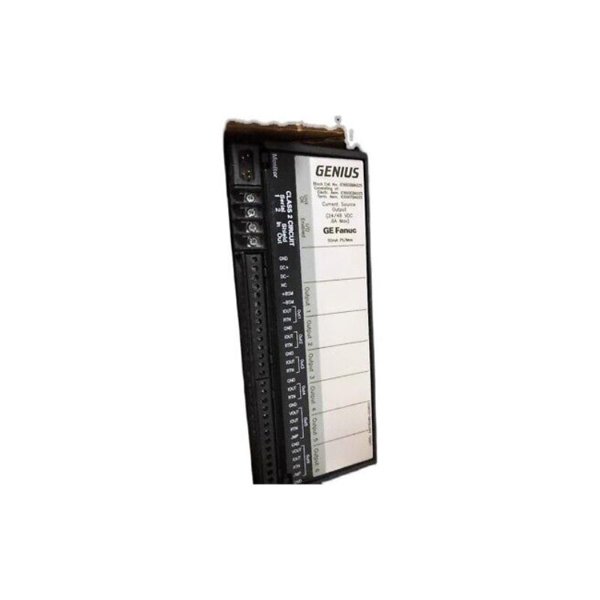

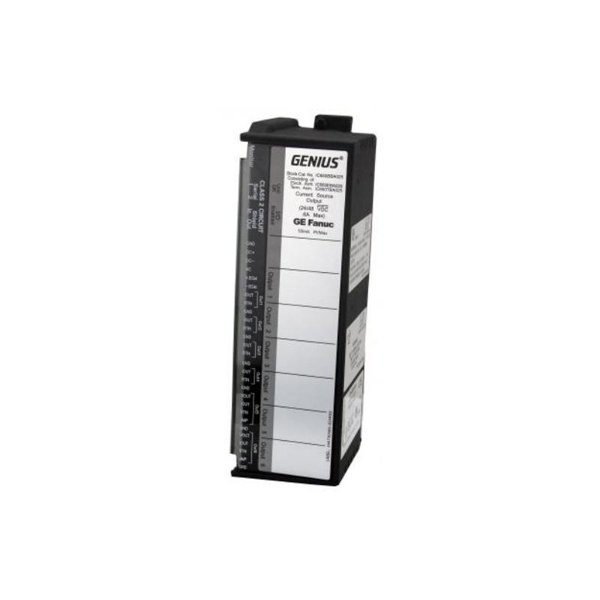

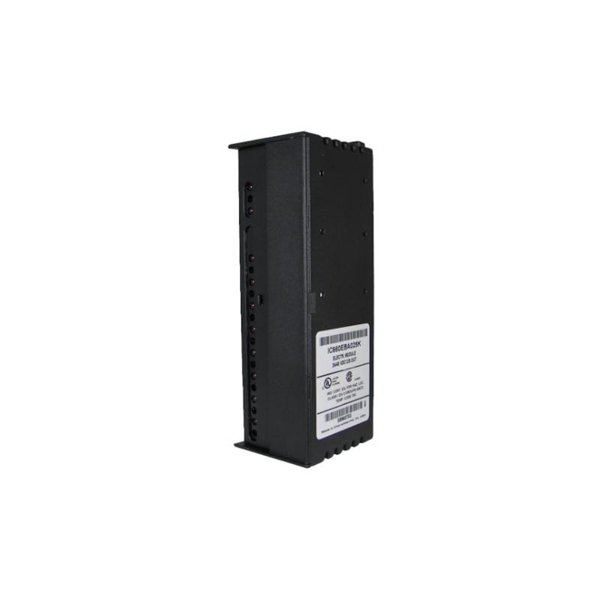

General Electric IC660EBA025 I/O Block Electronics

This I/O block is ideal for installations where a compact footprint and versatile I/O configurations are required. It supports both input and output functions, reducing component needs and simplifying panel layouts.

Product Features

• 16 configurable discrete I/O circuits

• Supports sourcing or sinking configuration

• Compatible with Genius Bus protocol

• Designed for field-mounting in harsh industrial environments

• Diagnostic LEDs for channel status and error indication

• Supports redundancy and high system availability

• DIN-rail or panel mount options available

• Non-volatile memory for retaining configurations during power loss

Technical Specifications

Product Applications

The GE IC660EBA025 is widely utilized in the following sectors:

• Industrial Automation: For connecting discrete sensors and actuators in automated assembly lines.

• Power Generation: To manage on-site equipment with reliable I/O communication.

• Water and Wastewater Treatment: In process monitoring systems to detect and actuate components like valves and pumps.

• Oil & Gas Industry: For hazardous area control panels requiring rugged I/O systems.

• Manufacturing Facilities: For equipment interlocks, safety circuits, and control signaling.

Product Advantages

• Flexibility: Each of the 16 channels can be independently configured as input or output, sourcing or sinking, eliminating the need for separate modules.

• Rugged Design: Built to withstand vibration, extreme temperatures, and electrical noise common in industrial settings.

• Field-Friendly Diagnostics: On-device LEDs make it easy to troubleshoot without needing software tools.

• Reduced Panel Space: Combines input and output in a single block, saving space and reducing wiring complexity.

• Reliable Communication: Operates seamlessly over the Genius Bus network for distributed control systems.

• Non-volatile Configuration: Retains custom settings even after power failure, ensuring operational continuity.

Frequently Asked Questions (FAQ)

Q1: What type of I/O does the IC660EBA025 support?

A1: It supports discrete I/O, with each of the 16 circuits configurable as either input or output.

Q2: Can I configure the block for both sourcing and sinking?

A2: Yes, each channel can be individually configured as sourcing or sinking depending on application needs.

Q3: What is the maximum current output per channel?

A3: Each output channel can provide up to 0.5 A.

Q4: How is the IC660EBA025 mounted?

A4: It can be mounted on a DIN rail or directly on a panel using screws.

Q5: Does the device retain configuration after power loss?

A5: Yes, it uses non-volatile memory to store configuration data.

Q6: Is the block compatible with Genius Bus?

A6: Yes, it is designed to integrate with GE’s Genius Bus protocol.

Q7: Are the I/O channels isolated?

A7: Yes, the channels are electrically isolated to protect the control system.

Q8: What tools are needed for configuration?

A8: Configuration can be done using a handheld monitor or compatible software tools.

Q9: Can this block be used in high-temperature environments?

A9: It supports operating temperatures up to 60°C, suitable for most industrial environments.

Q10: Are there status indicators for each channel?

A10: Yes, each channel has a dedicated LED indicator for quick diagnostics.
