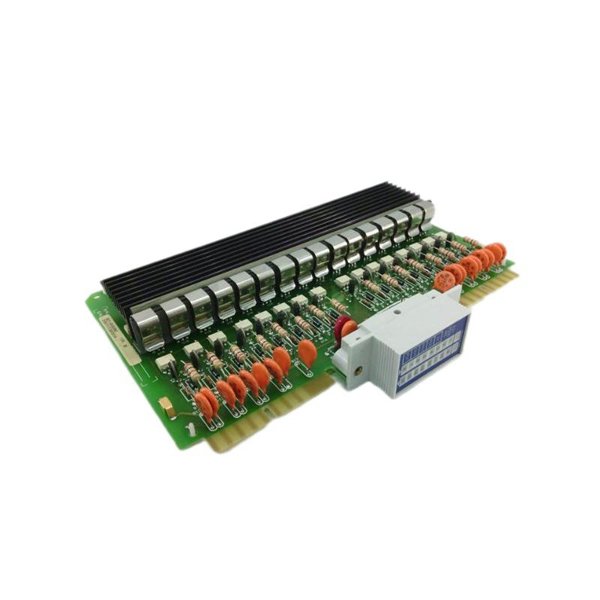

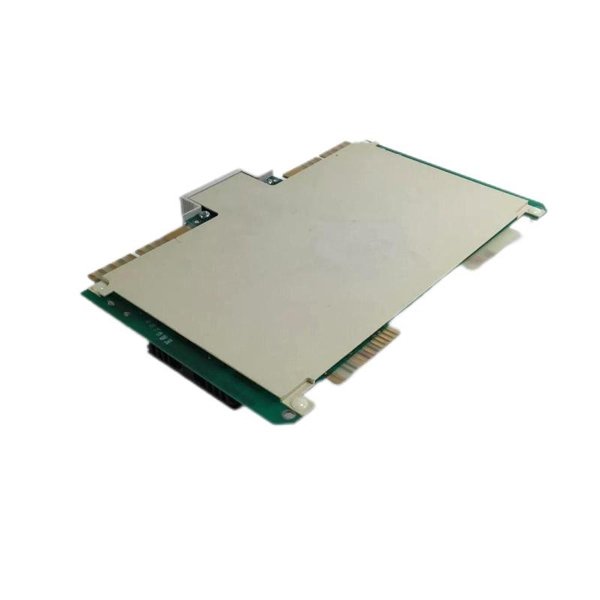

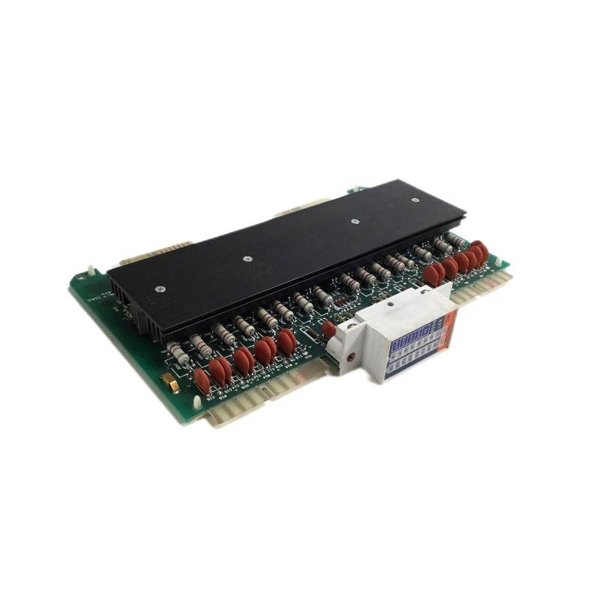

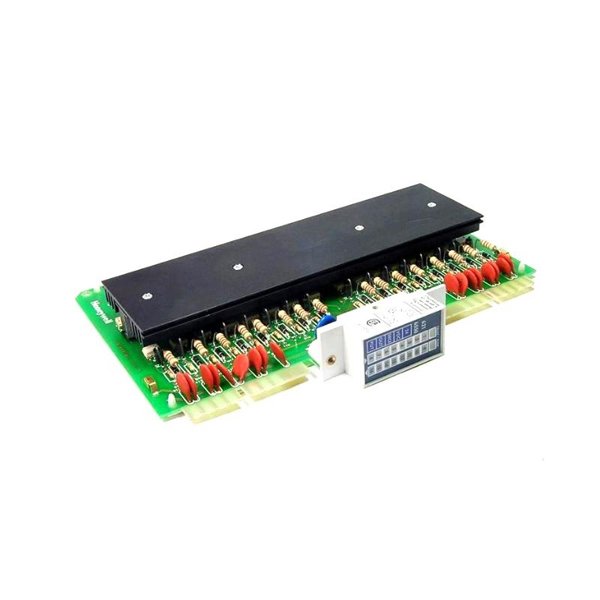

Honeywell 621-6550 Digital Output Module

The Honeywell 621-6550 Digital Output Module is designed to provide highly reliable and efficient control of external devices within Honeywell’s HC900 Process Automation Controller system. As a part of Honeywell’s control and monitoring system offerings, this module allows for seamless digital signal output to control a wide variety of field devices, including actuators, relays, and other industrial control equipment. The 621-6550 Digital Output Module features 16 channels of voltage-free (dry contact) relay outputs, making it ideal for switching control actions such as on/off operations, alarms, or automated process control tasks.

This module is designed to integrate seamlessly with other Honeywell HC900 series modules and provides industrial-grade reliability for demanding process control environments. Its advanced features and rugged design ensure long-term performance and accuracy in a variety of industries, such as manufacturing, oil and gas, chemical processing, and power generation.

Product Specifications

Product Applications

The Honeywell 621-6550 Digital Output Module is designed to serve applications that require reliable digital output control for industrial processes. Key applications include:

• Process Control Systems: Used for controlling actuators, valves, and other field devices in process automation.

• Alarm Systems: The module can control relays for triggering alarms in case of critical conditions.

• Industrial Automation: Interfaces with relay-based actuators for switching high-power equipment like motors or heaters.

• Manufacturing: Provides digital outputs to control production line machines and other automation systems.

• Safety Systems: Can be used in safety-critical systems to trigger outputs based on emergency conditions.

• Building Management Systems (BMS): Interfaces with HVAC systems, security systems, and other control systems in commercial buildings.

Product Advantages

• High Output Density: With 16 output channels, the module allows efficient use of space and reduces the need for additional components.

• Versatile Relay Outputs: The relay outputs are suitable for controlling various types of devices, including motors, lights, and alarms.

• Industrial-Grade Isolation: Offers optical isolation between the output channels and the control system, protecting the system from electrical noise and surges.

• Compact Design: The module’s small size (158 x 98 x 30 mm) allows easy installation in tight control panels and enclosures.

• LED Indicators: The status LEDs provide easy monitoring of the output channels, helping operators identify faults or issues.

• Wide Operating Temperature Range: Operates in environments with temperatures ranging from 0°C to 60°C, making it suitable for various industrial environments.

• Robust Performance: Designed to handle harsh industrial conditions and provide reliable outputs over long periods of time.

Frequently Asked Questions (FAQ)

1. What type of outputs does the 621-6550 module provide?

   The 621-6550 provides 16 digital output channels using dry contact relays that can control external devices like motors, lights, or alarms.

2. What is the maximum relay rating of the module?

   The relay can handle up to 2A at 30V DC and 2A at 250V AC.

3. Can the 621-6550 module be used to control high-voltage equipment?

   Yes, the module can control relays connected to high-voltage equipment, but the relay itself only handles low-voltage dry contact switching.

4. What is the power consumption of the 621-6550?

   The module typically consumes 3.5 W of power during operation.

5. How are the output channels monitored?

   The module provides LED indicators for each output channel, indicating whether the channel is active or in a fault condition.

6. Is the module compatible with other Honeywell control systems?

   Yes, the module is designed to integrate with Honeywell’s HC900 Process Automation Controller and can be used in a wide variety of process automation systems.

7. What is the operating temperature range of the 621-6550?

   The module operates within a temperature range of 0°C to 60°C.

8. Can the module be used in environments with high humidity?

   Yes, the module is rated for use in environments with 5% to 95% humidity (non-condensing).

9. Does the 621-6550 module have input isolation?

   Yes, the module has optical isolation between the output channels and the control system to protect against electrical interference.

10. Is the Honeywell 621-6550 compliant with industrial standards?

    Yes, the module complies with various industry standards, including CE, UL, and RoHS.
