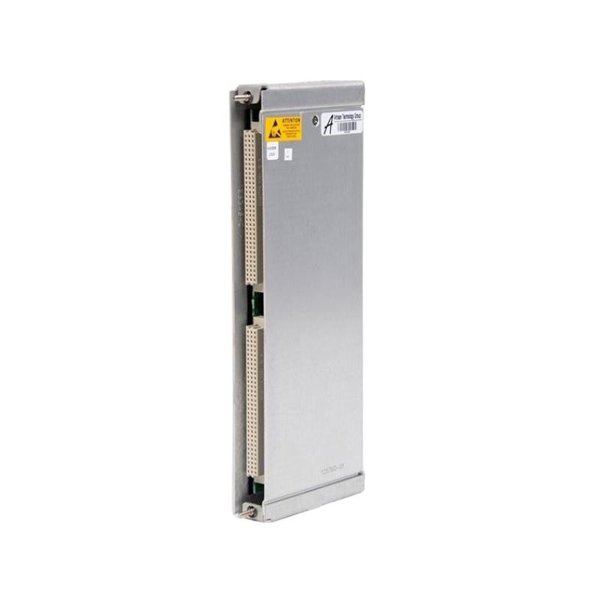

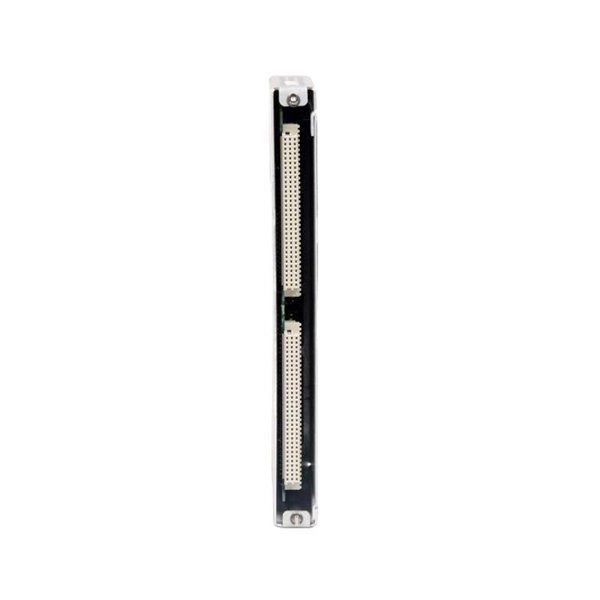

Bently Nevada 3500/45 135137-01 3500/45 Position Monitor I/O Module

The Bently Nevada 3500/45 135137-01 Position Monitor I/O Module is a critical component of the 3500 Machinery Protection System, designed to provide accurate position monitoring and protection for rotating machinery. It processes signals from proximity probes and transducers, delivering real-time shaft position and vibration data. This module ensures reliable integration with other 3500 system components, enabling effective machinery condition monitoring and predictive maintenance.

Key Features

• Provides precise position monitoring for critical machinery

• Supports multiple transducer and proximity probe types

• Configurable alarm and trip outputs

• Hot-swappable for minimal downtime

• Rack-mounted for 3500 series systems

• Real-time data output compatible with System 1®

• Robust design suitable for harsh industrial environments

Technical Specifications

Industry Applications

• Turbine shaft position monitoring

• Compressor and pump machinery protection

• Oil and gas, petrochemical, and refining plants

• Power generation equipment monitoring

• Integration with System 1® for condition-based maintenance

Frequently Asked Questions (FAQ)

Q1: How many input channels does this module have?

It has two independent transducer/proximity probe channels.

Q2: Can it provide alarm and trip outputs?

Yes, outputs are configurable per channel.

Q3: Is the module hot-swappable?

Yes, it can be replaced without shutting down the rack.

Q4: What types of transducers does it support?

It supports standard proximity probes and compatible position transducers.

Q5: What is the operating temperature range?

0°C to 65°C.

Q6: Can it integrate with System 1®?

Yes, it provides real-time data compatible with System 1®.

Q7: What are the module’s dimensions and weight?

It measures 241.3mm x 24.4mm x 99.1 mm and weighs approximately 0.2 kg.

Q8: Is it suitable for hazardous environments?

Yes, it meets CE, CSA, ATEX, and IECEx certifications.

Q9: Can it be used with all 3500 series racks?

Yes, it integrates seamlessly into the 3500 series rack system.

Q10: Can it process multiple signal types?

Yes, it handles inputs from standard proximity probes and compatible transducers.
