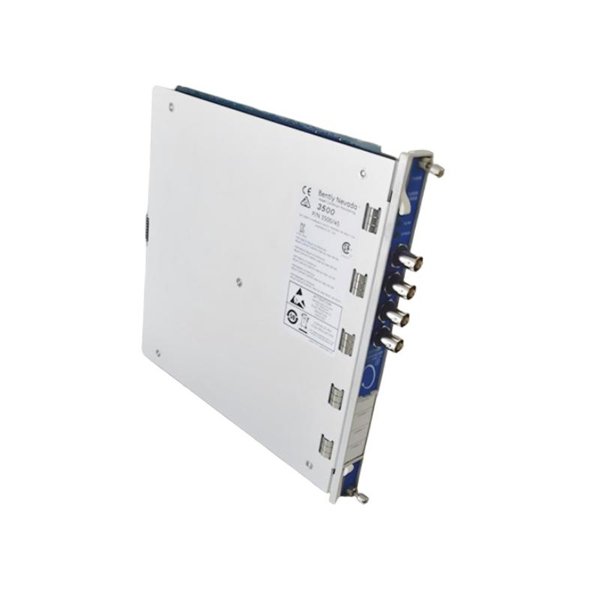

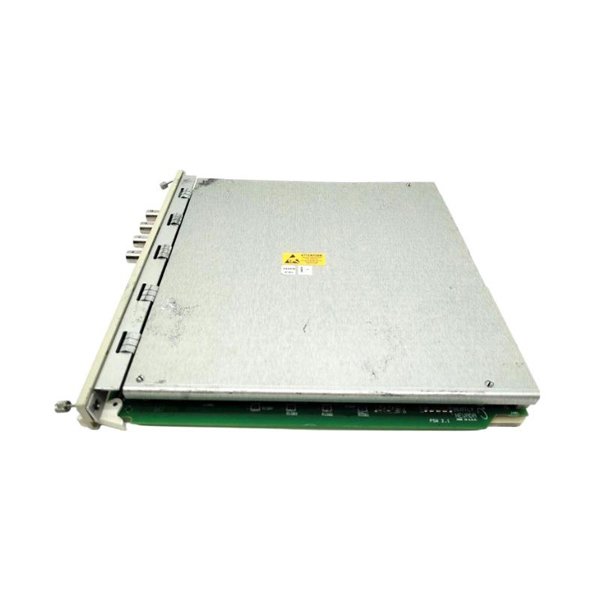

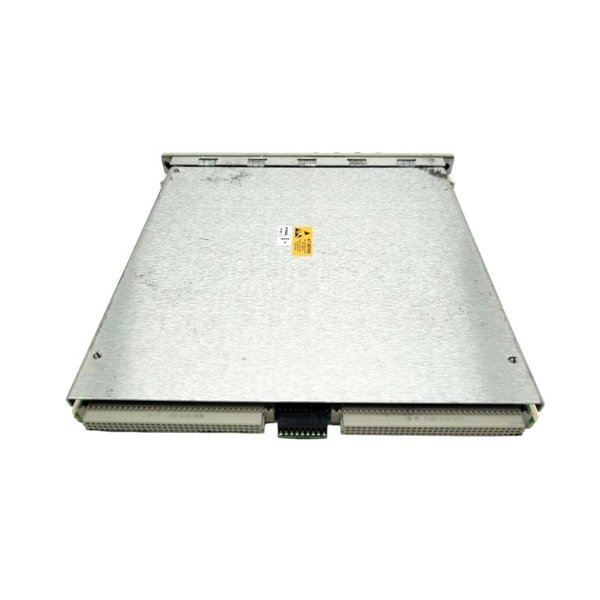

Bently Nevada 3500/42 140734-02 + 135489-01 Proximitor Seismic Monitor

The Bently Nevada 3500/42 140734-02 + 135489-01 Proximitor Seismic Monitor is an advanced vibration and seismic detection system designed to protect critical industrial machinery. As part of the trusted Bently Nevada 3500 series, the 3500/42 offers highly accurate monitoring of seismic and vibration activity in a wide range of industrial applications, ensuring that any potential problems are detected early. By identifying abnormal seismic events or vibrations, this system plays a vital role in preventing machinery failures and minimizing costly downtime.

Engineered to operate in the most demanding environments, the 3500/42 Proximitor Seismic Monitor is particularly effective in industries such as power generation, oil & gas, mining, and heavy manufacturing. This device helps monitor the health of turbines, generators, compressors, and other critical machinery, extending their lifespan and improving operational efficiency.

With its NEMA 4X-rated enclosure, the 3500/42 is designed to withstand extreme conditions, making it suitable for both outdoor and industrial environments. Additionally, it integrates seamlessly with other Bently Nevada monitoring systems, forming a comprehensive machinery health monitoring solution.

Product Specifications

Product Applications

The 3500/42 Proximitor Seismic Monitor is designed for continuous monitoring of industrial machinery in a variety of sectors. It is widely used for:

1. Power Plants: Monitoring vibrations and seismic disturbances in turbines, generators, and other vital equipment to ensure stable operations.

2. Oil & Gas: Detecting seismic disturbances in offshore rigs, onshore drilling operations, and refineries, ensuring that equipment continues to operate safely.

3. Mining: Tracking seismic activity in mining operations, providing early warnings of any vibration or seismic event that could affect equipment integrity.

4. Manufacturing: Detecting and analyzing vibrations in large industrial machines such as presses, rollers, and conveyor belts to ensure consistent performance and prevent downtime.

5. HVAC Systems: Monitoring large-scale HVAC systems to identify abnormal vibrations, ensuring that these systems continue to function efficiently without any issues.

Product Advantages

• Precision and Accuracy: The 3500/42 offers highly accurate seismic and vibration measurements, ensuring that any potential issues are detected early before they escalate into major problems.

• Ease of Integration: It integrates seamlessly with other Bently Nevada systems, creating a unified, comprehensive machinery health monitoring solution.

• Durable and Rugged Design: With a NEMA 4X-rated enclosure, the 3500/42 is built to withstand harsh environmental conditions, including high humidity, dust, and extreme temperatures.

• Real-Time Monitoring: The system provides immediate notifications when seismic or vibration anomalies are detected, enabling operators to respond quickly and avoid further damage.

• Minimal Maintenance: Designed to be low-maintenance, the 3500/42 ensures that industrial machinery continues to operate efficiently without frequent interventions.

• Long-Term Reliability: Built to operate over long periods, the device ensures that equipment remains protected and functional, extending the life of critical machinery.

FAQ (Frequently Asked Questions)

1. What is the purpose of the Bently Nevada 3500/42 Proximitor Seismic Monitor?

   • The 3500/42 monitors seismic activity and vibrations in machinery, detecting abnormal events that could lead to mechanical failure.

2. How is the 3500/42 powered?

   • The device operates on a 24 VDC power supply.

3. What type of output does the 3500/42 provide?

   • The 3500/42 produces a digital output via RS-485.

4. Is the 3500/42 suitable for outdoor use?

   • Yes, it is housed in a NEMA 4X-rated enclosure, making it suitable for use in outdoor and industrial environments.

5. What is the operating temperature range of the 3500/42?

   • The 3500/42 operates in temperatures ranging from -40°C to 70°C.

6. How is the 3500/42 mounted?

   • The device is designed for panel mounting, making installation easy and convenient.

7. Can the 3500/42 be integrated with other Bently Nevada products?

   • Yes, the 3500/42 integrates seamlessly with other Bently Nevada monitoring devices, creating a comprehensive machinery protection system.

8. What types of seismic sensors can be used with the 3500/42?

   • The 3500/42 works with seismic sensors that provide input signals such as 4-20 mA or 0-10 VDC.

9. Which industries benefit most from the 3500/42?

   • Power generation, oil & gas, mining, manufacturing, and HVAC industries all benefit from using the 3500/42.

10. What are the main benefits of using the 3500/42?

    • The device offers precise monitoring, real-time alerts, easy integration, durability, and long-term reliability, ensuring machinery health and performance.
