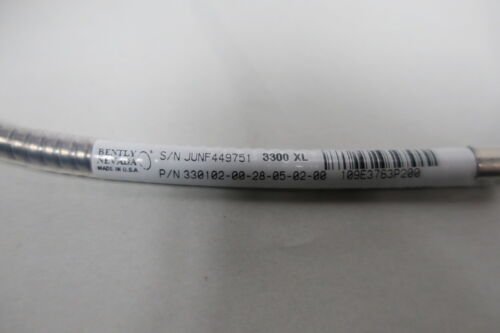

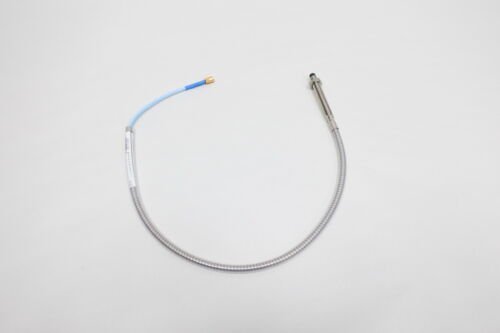

The Bently Nevada 330103-00-06-05-02-00 is a rugged, non-contacting 3300 XL 8 mm proximity probe specially designed for measuring the vibration of rotating shafts in harsh industrial environments. It utilizes a capacitance sensor to detect the presence of the shaft and offers various output options such as analog voltage, frequency, and pulse train for versatile monitoring applications.

Features

• Non-contacting measurement eliminates wear and tear on the shaft.
• Wide range of output types available for compatibility with a variety of vibration monitoring systems.
• Rugged construction for use in harsh environments.
• Simple installation and calibration.

Technical Specifications

• Shaft diameter: 8 mm
• Measuring range: 0 to 10000 RPM
• Accuracy: ±0.05% of reading
• Bandwidth: 10 Hz to 10 kHz
• Output: Analog voltage, frequency, or pulse train
• Power consumption: 10 mA
• Dimensions: 100 mm x 50 mm x 30 mm
• Weight: 100 g

• Unthreaded Length Option : 00 = 0mm
• Overall Case Length Option : 04 = 40mm
• Total Length Option : 05 = 0.5 metre (1.6 feet)
• Connector and Cable-Type Option : 02 = Miniature coaxial ClickLocTM connector, standard cable
• Agency Approval Option : 0 0 = Not required

For more parameters, please read the PDF of our 3300 XL 8 mm Proximity Probes: 330103
