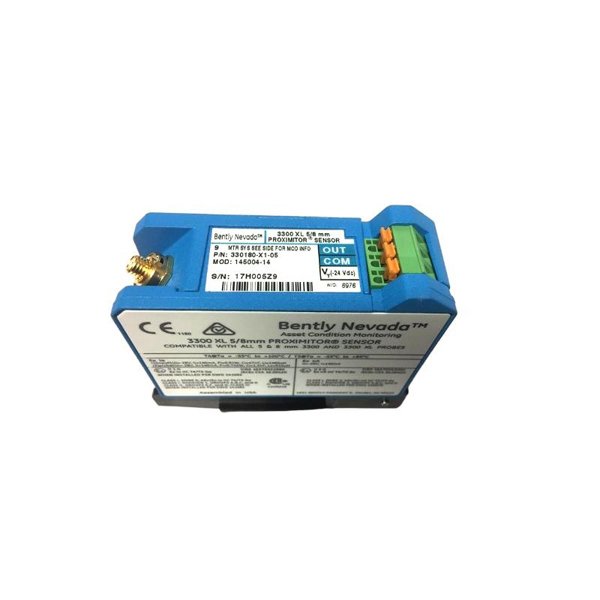

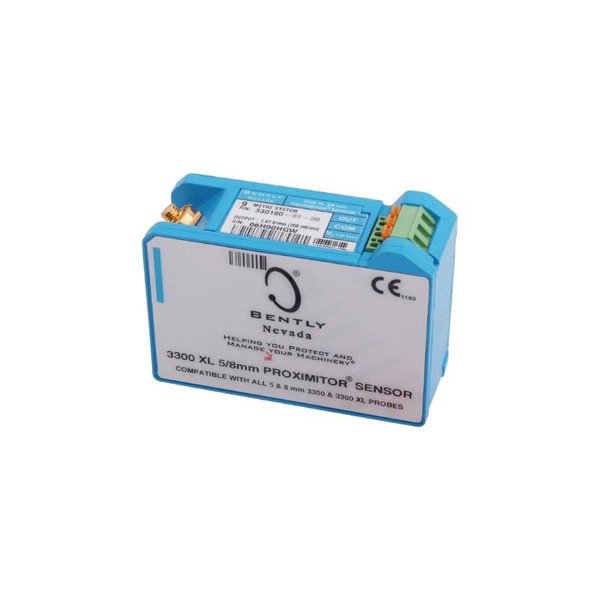

Bently Nevada 330180-X1-00 145004-100 3300 XL 8mm Proximity Sensor

The Bently Nevada 330180-X1-00 145004-100 3300 XL 8mm Proximity Sensor is a high-precision, industrial-grade sensor designed to monitor critical machinery health in industrial applications. This sensor is part of the Bently Nevada 3300 XL series, known for its robustness, accuracy, and longevity. Ideal for vibration and proximity monitoring, the sensor provides real-time data to ensure the safety and efficiency of rotating equipment such as motors, turbines, pumps, and compressors.

The sensor operates at 8mm from the target surface, making it an essential component for precise displacement measurement in condition monitoring systems. Its compact design of 81.3 × 35.1 × 63.5 mm and weight of 0.246 kg make it ideal for installation in tight spaces while still maintaining high operational performance.

The 3300 XL 8mm Proximity Sensor is particularly effective in extreme environments, where it is exposed to high temperatures, mechanical stress, and vibration. Its non-contact technology ensures reliable measurements and protection against wear and tear that could otherwise affect the performance of mechanical components over time.

Product Parameters

Product Applications

1. Condition Monitoring in Industrial Equipment: The 3300 XL 8mm Proximity Sensor is designed to monitor the condition of rotating equipment such as motors, turbines, pumps, and compressors. It provides real-time vibration and displacement measurements to detect misalignment, imbalance, and bearing wear, which helps to avoid costly downtimes.

2. Power Generation: In power plants, this proximity sensor is used to monitor critical assets like generators and steam turbines. Its high accuracy ensures that any faults are detected early, allowing operators to take preventive actions and minimize potential damage to expensive machinery.

3. Oil & Gas Industry: The 3300 XL 8mm Sensor is particularly useful in the oil and gas industry, where it helps monitor high-speed equipment under harsh conditions, such as pumps, compressors, and motors. It provides valuable data to improve operational safety and efficiency.

4. Aerospace & Military Applications: In aerospace and military sectors, the sensor ensures the health and operational reliability of mission-critical equipment, such as engines, rotors, and compressor blades, where precision and durability are crucial for both performance and safety.

Product Advantages

1. High-Precision Measurement: The 8mm measurement range ensures highly accurate proximity sensing with minimal interference from environmental factors, allowing for precise displacement measurements and enhanced machine health monitoring.

2. Durable and Reliable: Built to withstand extreme temperatures from -40°C to +85°C, the sensor offers unmatched durability in harsh industrial environments. The IP67 rating ensures protection against dust and water ingress, making it suitable for use in wet and dirty conditions.

3. Non-Contact Technology: Utilizing non-contact sensing technology, this sensor minimizes wear and tear, extending the lifespan of the equipment it monitors. It provides continuous, reliable measurements without the risk of physical damage that other sensors might incur over time.

4. Compact Design: With its small size of 81.3 × 35.1 × 63.5 mm and lightweight of 0.246 kg, the sensor is easy to integrate into tight spaces and existing systems without compromising on performance. Its small form factor enhances flexibility and simplifies installation in constrained areas.

Frequently Asked Questions (FAQ)

1. What is the measurement range of the Bently Nevada 3300 XL 8mm Proximity Sensor?

   • The sensor measures a distance of 8mm from the target.

2. What are the dimensions of the Bently Nevada 3300 XL 8mm Proximity Sensor?

   • The sensor has dimensions of 81.3 × 35.1 × 63.5 mm.

3. What is the weight of the Bently Nevada 3300 XL 8mm Proximity Sensor?

   • The weight of the sensor is 0.246 kg.

4. What is the operating temperature range of the sensor?

   • The sensor operates in temperatures from -40°C to +85°C.

5. How does the Bently Nevada 3300 XL sensor work?

   • The sensor uses non-contact proximity sensing technology to measure displacement or vibration, offering reliable data for machinery health monitoring.

6. What are the common applications of this proximity sensor?

   • It is commonly used in condition monitoring systems, power plants, oil & gas industries, and aerospace applications.

7. What is the protection rating of the Bently Nevada 3300 XL 8mm Proximity Sensor?

   • The sensor has an IP67 protection rating, meaning it is dustproof and can withstand immersion in water up to 1 meter.

8. Can the sensor be used in extreme environments?

   • Yes, it is designed to withstand harsh conditions, with an operating temperature range of -40°C to +85°C and high resistance to mechanical stress and vibration.

9. What output type does the Bently Nevada 3300 XL 8mm Proximity Sensor provide?

   • The sensor provides a DC Voltage output for easy integration into control systems.

10. How is the sensor mounted?

    • The sensor is designed for direct mounting, making installation straightforward in various industrial setups.
