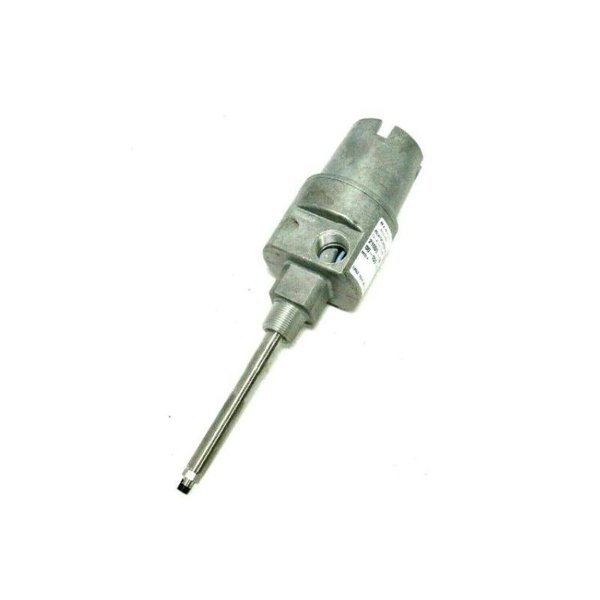

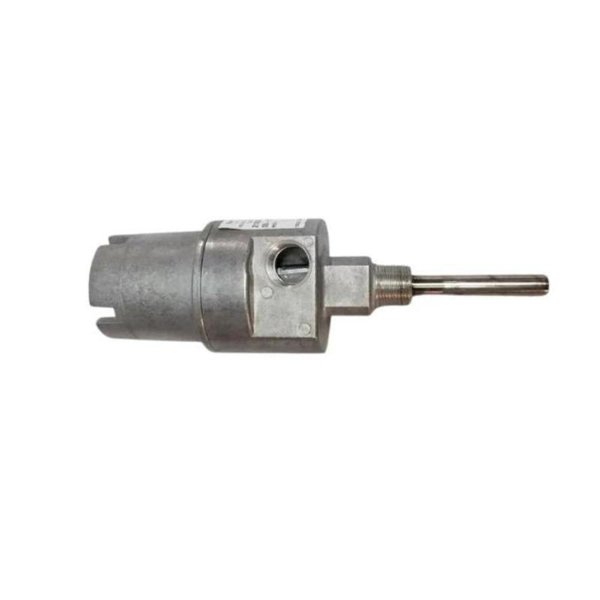

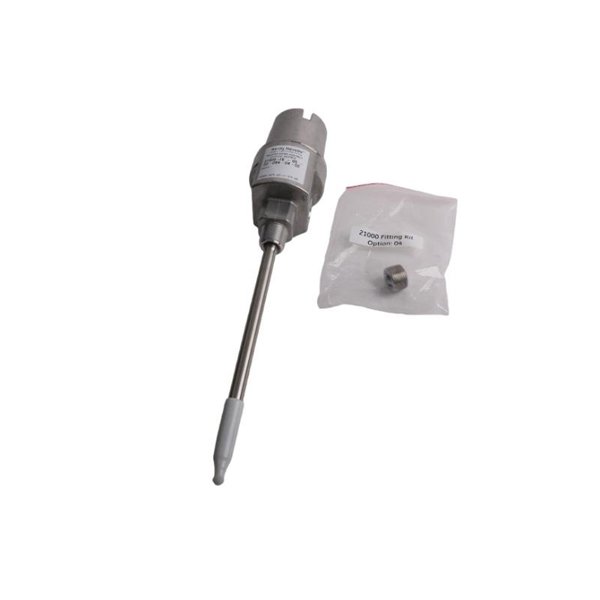

Bently Nevada 24701-28-10-00-040-00-02 Proximity Probe Housing Assembly

The Bently Nevada 24701-28-10-00-040-00-02 is a high-performance proximity probe housing assembly designed for use with the 3300XL series vibration monitoring system. This housing assembly is engineered to provide robust protection for the proximity probe, ensuring accurate measurement of shaft position and vibration within industrial machinery. The 3300XL series is widely recognized for its reliability in critical machinery protection and condition monitoring applications.

Constructed from high-quality materials, the housing assembly offers enhanced durability and protection against environmental factors such as dirt, dust, and moisture. Its design ensures the probe operates at peak performance while maintaining long-term reliability in harsh industrial environments.

Product Specifications

Applications

The Bently Nevada 24701-28-10-00-040-00-02 proximity probe housing assembly is used primarily in vibration monitoring systems to protect the proximity probe in industrial machinery. Some of the key applications include:

1. Vibration Monitoring Systems: Essential for safeguarding proximity probes in vibration monitoring systems used in turbines, compressors, pumps, and other critical machinery.

2. Condition Monitoring: Used in continuous condition monitoring systems to detect early signs of mechanical issues, preventing costly downtime and extending the lifespan of machinery.

3. Machinery Protection: Plays a vital role in machinery protection systems, providing accurate feedback on shaft displacement and vibration for automated shutdown or maintenance alerts.

4. Rotating Machinery: Commonly used in rotating equipment such as motors, generators, and gearboxes for real-time monitoring of shaft position and vibration levels.

5. Industrial Plants and Power Generation: Frequently found in industrial plants, oil and gas refineries, power generation facilities, and other settings where equipment reliability is critical.

6. Oil and Gas: Plays a key role in the oil and gas industry, ensuring machinery is operating within safe parameters to avoid catastrophic failures.

Product Advantages

1. Robust Construction: Made from high-grade stainless steel, this housing assembly offers superior protection against harsh environments, including high temperatures and corrosive substances.

2. Enhanced Durability: With an IP67 rating, the housing provides protection against dust and water ingress, ensuring the probe remains operational even in extreme conditions.

3. Accurate Measurement: The housing assembly ensures that the proximity probe is securely housed, providing accurate and reliable shaft position and vibration measurements.

4. Wide Temperature Range: With an operating temperature range of -40°C to +100°C, the assembly is suitable for use in both cold and hot industrial environments.

5. Easy Installation: Designed with a flange mounting option, the assembly allows for easy and secure installation in various machinery setups.

6. Long-Term Reliability: The housing is engineered for long-term reliability, helping to extend the lifespan of the proximity probe and reducing maintenance costs over time.

7. Cost-Effective Maintenance Solution: Protects the proximity probe, reducing the likelihood of damage and improving the efficiency of predictive maintenance strategies.

8. Corrosion Resistance: The stainless steel material offers excellent resistance to corrosion, ensuring the housing can withstand harsh industrial chemicals and environments.

FAQs

1. What is the diameter of the housing body of the Bently Nevada 24701-28-10-00-040-00-02?

   The housing body diameter is 78.2 mm.

2. What is the weight of the Bently Nevada 24701-28-10-00-040-00-02 housing assembly?

   The weight of the assembly is 1.8 kg.

3. What material is the Bently Nevada 24701-28-10-00-040-00-02 housing made from?

   The housing is made from stainless steel, providing excellent durability and resistance to corrosion.

4. What is the environmental protection rating of the housing assembly?

   The housing has an IP67 rating, which provides protection against dust and water ingress.

5. What is the operating temperature range of this housing assembly?

   The operating temperature range is from -40°C to +100°C.

6. Can the Bently Nevada 24701-28-10-00-040-00-02 housing be used in high-vibration environments?

   Yes, the housing is designed to protect the proximity probe in high-vibration environments commonly found in rotating machinery.

7. How is the housing assembly mounted?

   The housing assembly is mounted using a flange mounting type for easy and secure installation.

8. Is the Bently Nevada 24701-28-10-00-040-00-02 compatible with all Bently Nevada proximity probes?

   It is specifically compatible with the 3300XL series proximity probes.

9. What is the purpose of this housing assembly in vibration monitoring systems?

   The housing assembly protects the proximity probe, ensuring accurate measurement of shaft position and vibration in industrial machinery.

10. In which industries is the Bently Nevada 24701-28-10-00-040-00-02 most commonly used?

    This housing assembly is commonly used in industrial plants, power generation, oil and gas, and other heavy industries that rely on vibration monitoring for machinery protection.
