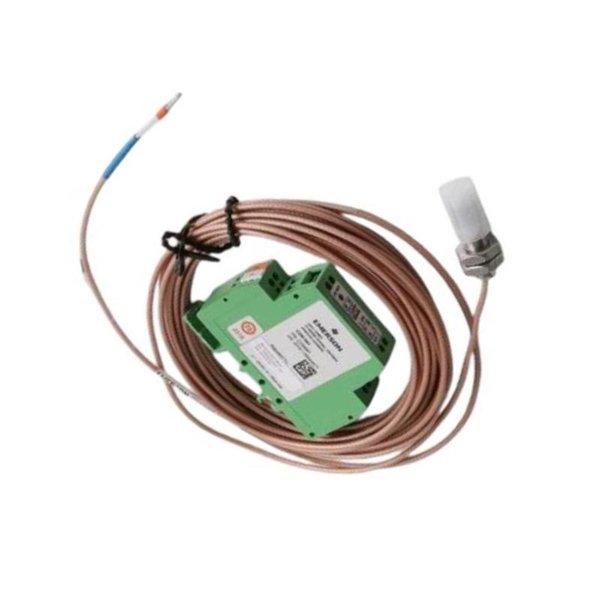

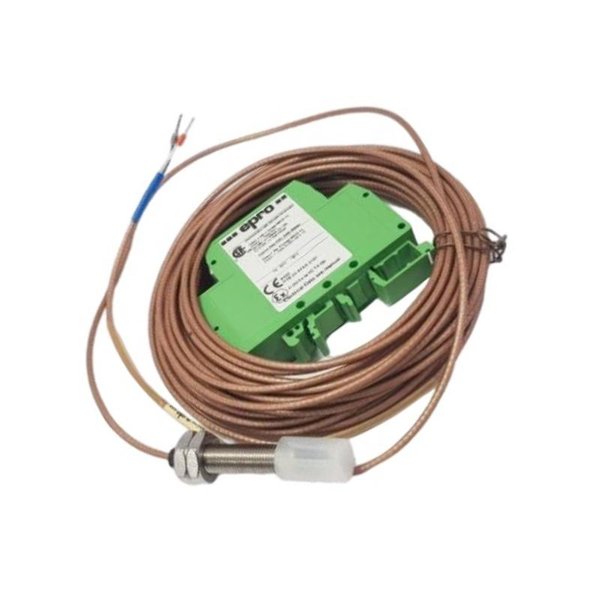

Epro PR6423/002-031+CON041 8mm Eddy-Current Sensor

The Epro PR6423/002-031+CON041 is a high-precision 8 mm eddy-current sensor supplied as a complete solution with the CON041 signal converter. It provides non-contact measurement of shaft displacement and vibration in rotating machinery, delivering reliable and accurate data for condition monitoring and machinery protection.

Key Features

• Complete solution: PR6423 8 mm sensor with CON041 signal converter

• Non-contact shaft displacement and vibration measurement

• High linearity and measurement accuracy

• Stainless-steel probe housing for durability

• Resistant to oil, dust, and contaminants

• Compatible with Epro monitoring systems and third-party controllers

• Reliable performance in high-temperature and high-humidity environments

Technical Specifications

Industry Applications

• Power Generation – turbine and generator shaft monitoring

• Oil & Gas – compressors, pumps, and rotating equipment

• Petrochemical & Chemical – continuous machinery condition monitoring

• Manufacturing – predictive maintenance for motors and drives

• Steel & Mining – heavy-duty shaft monitoring

Advantages

• Provides a complete sensing + conversion solution in one package

• High accuracy with stable signal output

• Rugged design resistant to oil, dust, and moisture

• Easy integration with Epro and third-party monitoring systems

• Supports predictive maintenance to reduce downtime

• Reliable performance in harsh industrial environments

Frequently Asked Questions (FAQ)

Q1: What does “+CON041” indicate?

It means the PR6423 sensor is supplied with the CON041 signal converter for conditioning and output standardization.

Q2: What is the tip diameter of this sensor?

8 mm.

Q3: What is the probe length?

31 mm.

Q4: What is the measurement range?

Typically up to 2 mm depending on system configuration.

Q5: What is the sensitivity?

8 mV/µm nominal.

Q6: What is the operating temperature range?

-35 °C to +180 °C for the probe.

Q7: Is it suitable for high-humidity or oily environments?

Yes, it supports up to 100% condensing humidity and is resistant to oil and dust.

Q8: Which monitoring systems is it compatible with?

It is compatible with Epro CON041 and other industrial monitoring systems.

Q9: What are the physical dimensions?

Sensor head diameter 8 mm.

Q10: Which industries commonly use this sensor?

Power Generation, Oil & Gas, Petrochemical, Manufacturing, Steel & Mining.
