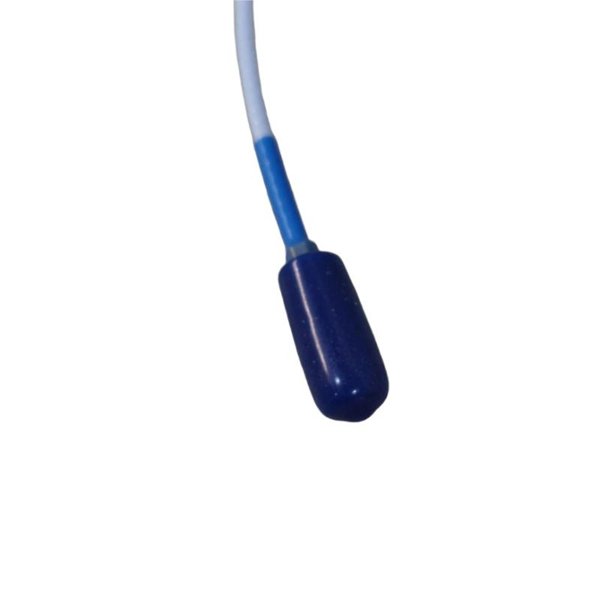

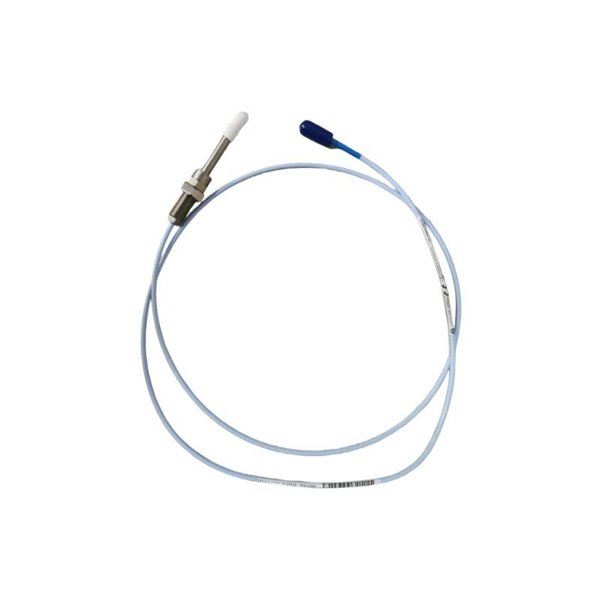

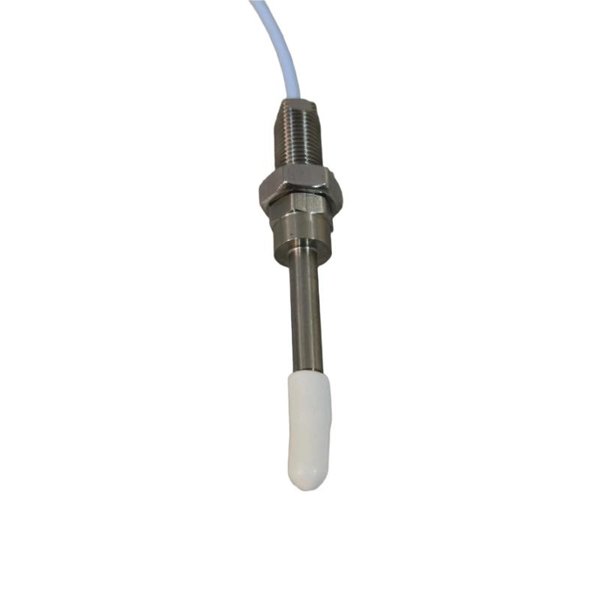

Bently Nevada 330171-00-28-05-02-00 3300 5mm Proximity Probe

The Bently Nevada 330171-00-28-05-02-00 3300 5mm Proximity Probe is a high-precision sensor designed to measure displacement, vibration, and other critical parameters of rotating machinery. As part of the 3300 series, this probe is commonly used in industrial environments to monitor the health of key equipment like turbines, motors, and pumps.

The 5mm gap allows for highly accurate measurement of shaft displacement, ensuring reliable and timely detection of potential faults or failures. The probe works based on the eddy current principle, offering consistent and accurate data even under extreme conditions. With a total length of 0.5 meters and a weight of 0.162 kg, the probe is compact, lightweight, and easy to integrate into various control systems.

The 3300 series probes are designed for use with Bently Nevada‘s advanced machinery condition monitoring systems. These systems are integral for predictive maintenance, providing real-time data and helping to prevent unplanned downtime by detecting faults at an early stage.

Product Specifications

Product Applications

The Bently Nevada 330171-00-28-05-02-00 5mm Proximity Probe is used for vibration and displacement monitoring in rotating machinery. Its applications include:

• Turbines: Monitors the position and displacement of turbine shafts, providing critical data for early fault detection.

• Compressors: Tracks shaft movement and vibration, helping to detect imbalances or misalignments.

• Motors and Pumps: Used for monitoring the condition of motor shafts and pumps, identifying wear or misalignment before a failure occurs.

• Rotating Equipment: Ideal for use with any machinery that relies on rotating shafts, such as fans and gearboxes.

• Condition Monitoring Systems: Integrated into predictive maintenance systems to ensure equipment is operating within normal parameters and to predict future maintenance needs.

• Manufacturing and Power Generation: Widely used in power plants and manufacturing plants for the real-time monitoring of key industrial machinery.

Product Advantages

1. Precise Measurement: The 5mm nominal gap provides highly accurate shaft displacement and vibration measurement, essential for fault detection.

2. Eddy Current Technology: Utilizing eddy current sensing, the probe delivers consistent, reliable results even in challenging industrial environments.

3. Compact and Lightweight: With a total length of 0.5 meter and weight of 0.162 kg, it is easy to install and integrates into tight spaces in control panels or machinery.

4. Wide Temperature Range: Designed to operate in temperatures ranging from -40°C to +85°C, the probe is suitable for a wide range of industrial environments.

5. Easy Integration: The M12 (5-pin) connector allows for seamless integration with other condition monitoring equipment, simplifying installation.

6. Durability: Built to withstand harsh environments, the probe is robust and provides long-lasting performance.

7. Real-time Monitoring: Provides real-time vibration and displacement data, enabling immediate response to any deviations or abnormal conditions.

8. High Sensitivity: The probe delivers high sensitivity, detecting even the smallest changes in shaft position, which is vital for predictive maintenance.

9. Preventive Maintenance: Supports predictive maintenance strategies by providing valuable data to help detect wear, misalignment, and imbalance before a breakdown occurs.

10. Versatile Use: This proximity probe is used across various industries including oil & gas, power generation, mining, and manufacturing, making it highly versatile.

FAQ

1. What is the gap size of the Bently Nevada 330171-00-28-05-02-00 proximity probe?

The nominal gap is 5mm, providing highly accurate measurements of displacement.

2. What sensing principle does the Bently Nevada 330171-00-28-05-02-00 use?

It uses eddy current sensing technology to detect shaft displacement and vibration.

3. What is the operating temperature range of this proximity probe?

The probe operates within a temperature range of -40°C to +85°C.

4. How long is the Bently Nevada 330171-00-28-05-02-00 probe?

The total length of the probe is 0.5 meter.

5. What is the weight of this proximity probe?

The probe weighs 0.162 kg, making it lightweight and easy to handle.

6. What types of equipment can the Bently Nevada 330171-00-28-05-02-00 be used with?

It is suitable for use with turbines, compressors, motors, pumps, and gearboxes.

7. What is the output type of the Bently Nevada 330171-00-28-05-02-00?

The output type is analog, either current or voltage, depending on the system configuration.

8. How sensitive is the Bently Nevada 330171-00-28-05-02-00 probe?

The probe offers high sensitivity, ensuring precise measurement of small changes in shaft displacement.

9. Can the Bently Nevada 330171-00-28-05-02-00 be mounted in any control system?

Yes, it features fixed mounting and integrates easily with most industrial control systems.

10. How does the Bently Nevada 330171-00-28-05-02-00 help with predictive maintenance?

The probe provides real-time data on shaft displacement and vibration, enabling early fault detection and reducing unplanned downtime.
