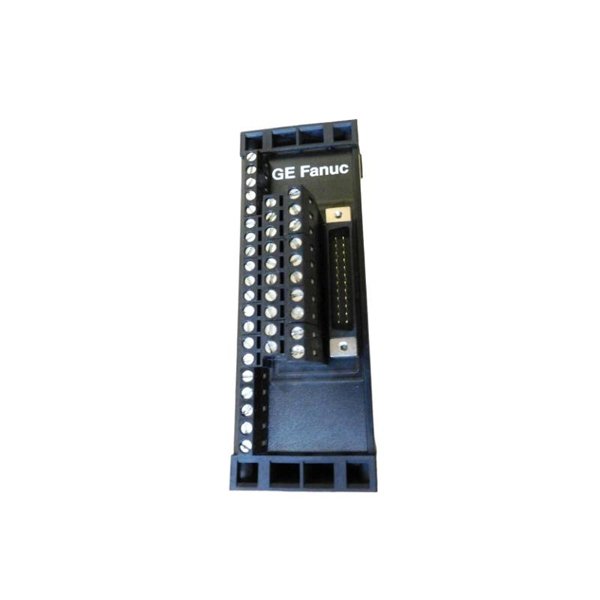

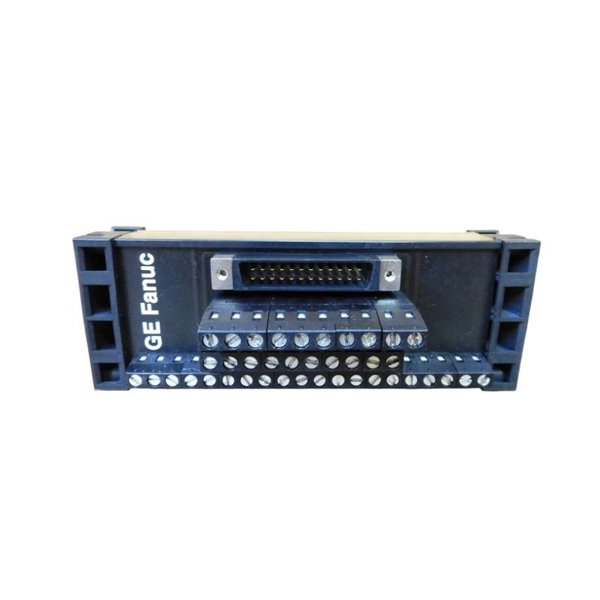

General Electric IC693ACC332 TBQC Base

The GE IC693ACC332 TBQC Base is an essential component for GE’s Series 90-30 Programmable Logic Controller (PLC) systems. It serves as a terminal block base that offers convenient and secure connectivity for I/O modules. The TBQC Base allows the modular integration of various input and output (I/O) modules, providing flexibility and scalability for complex automation systems.

Designed to meet the demands of industrial environments, the IC693ACC332 is engineered for rugged use, ensuring optimal performance even in harsh conditions. With its high level of modularity, it provides excellent expandability for customized automation solutions. This base is highly reliable and easy to install, making it an ideal solution for a wide range of automation applications, including process control, factory automation, and safety systems.

The GE IC693ACC332 TBQC Base is part of the IC693 series, which is a widely used product family known for its robustness, scalability, and cost-effectiveness in industrial control systems.

Product Specifications

The following table outlines the key specifications of the GE IC693ACC332 TBQC Base:

Applications of the GE IC693ACC332 TBQC Base

The GE IC693ACC332 TBQC Base is widely used in various industrial applications where flexible I/O connectivity is crucial. Its primary use cases include:

• Factory Automation: It is commonly employed in factory automation systems for controlling processes like assembly lines, packaging, and material handling.

• Process Control: In process industries such as chemical, pharmaceutical, and oil & gas, this base enables the integration of I/O modules for controlling sensors, actuators, and pumps.

• Building Management Systems (BMS): The TBQC Base is suitable for use in BMS, providing integration of I/O modules for monitoring HVAC systems, lighting, security, and energy management.

• Energy Systems: It plays a key role in the automation of power generation, distribution, and energy monitoring systems, offering precise control and real-time feedback.

• Safety and Emergency Shutdown Systems: Ideal for critical safety applications, it can be integrated with emergency shutdown systems and alarm devices to ensure reliable operation and safety protocols.

• SCADA Systems: The TBQC Base is often used in Supervisory Control and Data Acquisition (SCADA) systems for remote control and monitoring of industrial processes.

Advantages of the GE IC693ACC332 TBQC Base

1. Modular Design: The IC693ACC332 TBQC Base supports modular integration, allowing users to add or remove I/O modules as needed, enhancing flexibility and scalability.

2. Quick and Easy Installation: The quick-connect terminal blocks ensure fast wiring and simplify the installation process, reducing setup time.

3. Compact Design: With its compact size, the base module fits into systems with limited space, offering a space-saving solution without compromising functionality.

4. High Reliability: Built for industrial environments, it is designed to operate reliably under harsh conditions, including temperature fluctuations and vibrations.

5. Compatibility: This base is fully compatible with the GE IC693 series, allowing seamless integration with various I/O modules, CPUs, and other automation equipment.

6. Cost-Efficient: It provides a high-performance solution at a cost-effective price, offering excellent value for money in industrial control systems.

7. Durability: Designed to withstand demanding industrial environments, the TBQC Base ensures long-term operational reliability with minimal maintenance.

8. Reduced Downtime: The fast wiring and secure connections reduce the likelihood of failure, ensuring minimal downtime in automation systems.

9. Versatility: The TBQC Base supports a variety of I/O modules, making it a versatile solution for different types of industrial control systems.

10. Low Power Consumption: It operates with a low power consumption of 3.5 W, contributing to overall energy efficiency in automation systems.

Frequently Asked Questions (FAQ)

1. What is the GE IC693ACC332 TBQC Base used for?

   • It is used as a terminal block base for connecting and integrating I/O modules in GE’s IC693 series PLC systems.

2. How do I mount the IC693ACC332 Base?

   • The base is mounted on a standard DIN rail, which is a widely used mounting method for industrial control systems.

3. What are the weight and dimensions of the IC693ACC332 TBQC Base?

   • The base weighs 0.14 kg and has dimensions of 117.86 x 57 x 45 mm.

4. Can the IC693ACC332 be used in outdoor applications?

   • The module is designed for indoor use in controlled environments. Exposure to extreme outdoor conditions may affect its performance.

5. What is the operating temperature range for this base?

   • The operating temperature range is -20°C to +60°C, making it suitable for most industrial environments.

6. Is the IC693ACC332 TBQC Base compatible with other GE PLC models?

   • Yes, the base is compatible with all IC693 I/O modules and other components from the GE Series 90-30 PLC system.

7. What is the power consumption of the GE IC693ACC332 Base?

   • The module consumes 3.5 W of power, which is relatively low for a module of this functionality.

8. How does the quick-connect terminal block work?

   • The quick-connect feature allows for easy and fast wiring, reducing installation time and improving reliability.

9. What is the humidity range for the IC693ACC332 Base?

   • The module can operate in environments with humidity levels ranging from 5% to 95% (non-condensing).

10. Can I use the IC693ACC332 for large-scale automation systems?

    • Yes, it is ideal for both small and large automation systems, as it supports the integration of multiple I/O modules and can be expanded as needed.
