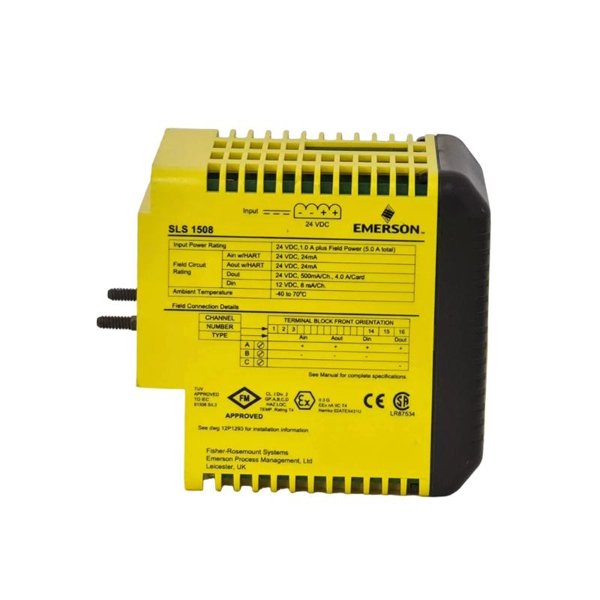

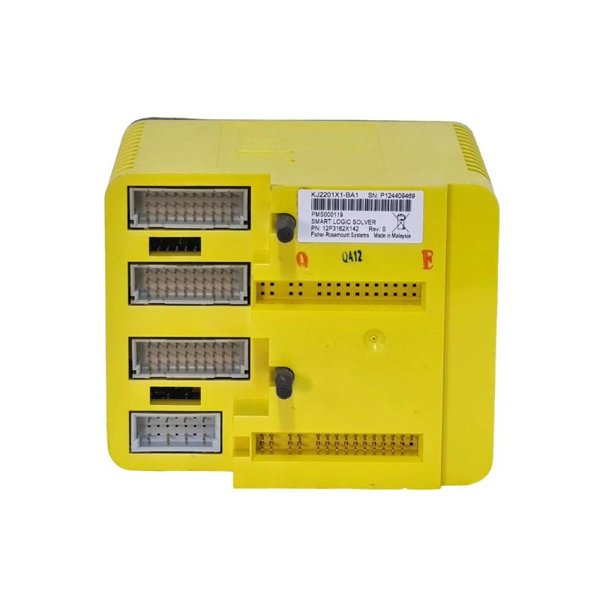

Emerson SLS1508 KJ2201X1-BA1 Smart Logic Solver

The Emerson SLS1508 KJ2201X1-BA1 Smart Logic Solver is a high-integrity safety logic solver module designed to meet the strict requirements of safety instrumented systems (SIS). Developed as part of Emerson’s DeltaV™ SIS platform, it provides advanced logic processing and seamless integration for critical process safety applications.

This module ensures reliability and performance for safety-critical processes in oil & gas, petrochemical, refining, and power generation industries. With TÜV certification up to SIL 3, the SLS1508 combines flexible logic control, redundant communication, and fail-safe operation to deliver the highest levels of functional safety.

Its robust construction, advanced diagnostics, and compact design allow operators to implement safety instrumented functions (SIFs) with confidence. It can be deployed for emergency shutdown systems (ESD), fire and gas detection systems (F&G), burner management, and other high-risk process automation applications.

Product Specifications

Applications

The Emerson SLS1508 KJ2201X1-BA1 Smart Logic Solver is widely applied in process safety and industrial automation systems, particularly where reliability and risk reduction are critical. Key applications include:

• Emergency Shutdown Systems (ESD): Provides reliable shutdown of processes in hazardous situations.

• Fire and Gas Detection Systems (F&G): Ensures rapid response and mitigation during fire or gas release events.

• Burner Management Systems (BMS): Safeguards combustion processes by enforcing safe operating conditions.

• Pipeline Safety Control: Monitors and isolates sections during leaks or pressure surges.

• Chemical Process Safety: Enforces safe reaction conditions in chemical and petrochemical plants.

• Power Generation Systems: Provides protection logic for boilers, turbines, and generators.

Advantages

1. High Safety Integrity: Certified up to SIL 3 for compliance with the most demanding safety standards.

2. Redundant Architecture: Ensures continuous operation with automatic switchover in case of hardware fault.

3. Fast Logic Processing: Guarantees deterministic response with low scan times for time-critical safety actions.

4. Flexible Integration: Compatible with Emerson DeltaV SIS and open protocols like Modbus and Ethernet/IP.

5. Advanced Diagnostics: Real-time fault detection, predictive alerts, and event logging enhance reliability.

6. Compact Design: Small footprint for easier installation in dense rack environments.

7. Scalable System: Can be expanded to support multiple logic solvers in larger safety architectures.

8. Reduced Maintenance: Self-testing and modular design minimize downtime and maintenance requirements.

FAQ

1. What safety certification does the SLS1508 KJ2201X1-BA1 carry?

   It is TÜV certified for SIL 3 compliance according to IEC 61508 and IEC 61511 standards.

2. How many logic channels does the module provide?

   The module provides 8 independent safety logic channels for executing safety instrumented functions.

3. What is the typical logic scan time of this solver?

   The deterministic logic scan time is less than 50 milliseconds, ensuring fast safety responses.

4. Can the module operate in a redundant configuration?

   Yes, it supports dual redundant architecture with automatic switchover in case of a failure.

5. What communication protocols are supported?

   It supports DeltaV SISnet, Modbus, and Ethernet/IP for seamless system integration.

6. Does the module perform online diagnostics?

   Yes, it includes built-in self-tests and continuous online diagnostics for fault detection.

7. What is the power supply requirement for the SLS1508?

   It requires a 24 V DC nominal power supply, with redundant supply capability.

8. Is the module suitable for harsh industrial environments?

   Yes, it features conformal coating, vibration resistance, and operates between -20 °C to +60 °C.

9. Can it be integrated with non-Emerson safety systems?

   Yes, it can integrate with third-party systems through Modbus or Ethernet/IP protocols.

10. How does the module handle system faults?

    It automatically isolates the faulty component, switches to a redundant unit, and logs the fault for operator review.
