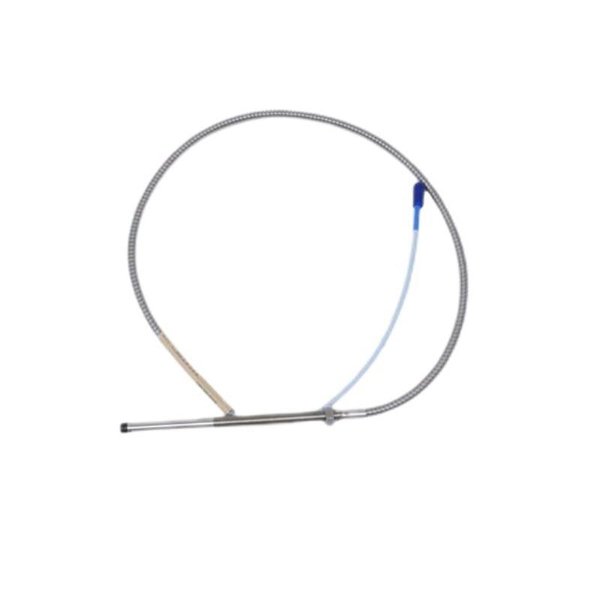

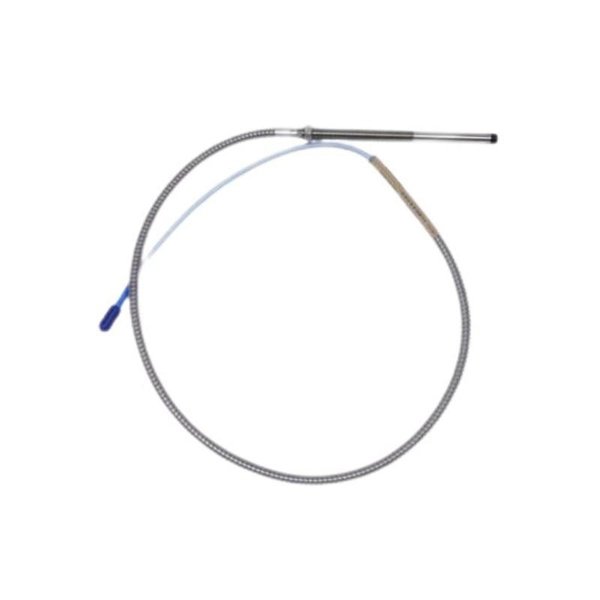

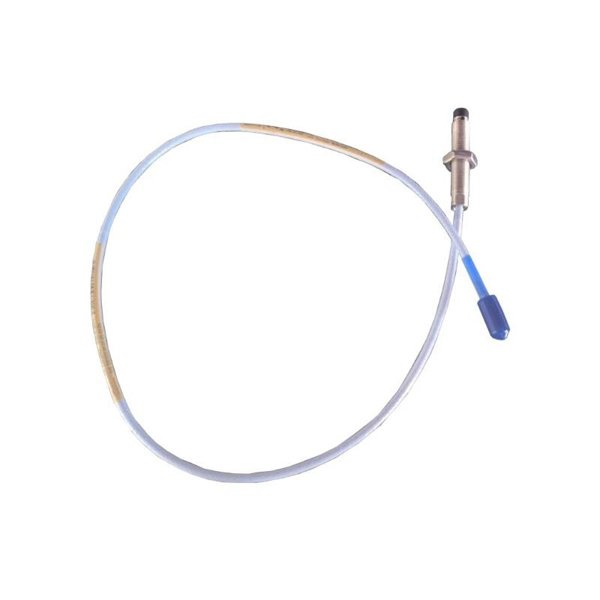

Bently Nevada 330103-00-05-05-02-BR 3300 XL 8 mm Proximity Probe

The Bently Nevada 330103-00-05-05-02-BR is a precision-engineered 8 mm proximity probe from the 3300 XL series, specifically designed to monitor shaft vibration and position in rotating machinery. Known for its durability and accuracy, this probe is widely used in power plants, oil & gas facilities, and heavy industrial settings. The model includes a 5-meter cable, shell-style “02” connector, and the “BR” suffix, which typically denotes a Brazil-specific configuration or localization.

This non-contact probe delivers reliable displacement measurements, forming a critical part of a Bently Nevada condition monitoring and protection system. Its robust design, high linearity, and EMI-resistant construction make it an essential tool for asset health diagnostics and predictive maintenance.

Key Features

• 8 mm sensing tip for industry-standard proximity measurements

• 5-meter integral coaxial cable

• Shell-style “02” connector for secure and standardized connectivity

• “BR” suffix indicates Brazil-specific variant or configuration

• Compatible with Bently Nevada 3300 XL Proximitor® systems

• Rugged stainless steel body for harsh industrial environments

• Shielded cable for superior signal integrity

• IP67 rating for protection against dust and moisture

• Accurate over a wide range of temperatures and vibration levels

Technical Specifications

Industry Applications

• Power Generation – Steam and gas turbines, generators

• Oil & Gas – Compressors, pumps, and rotating machinery in upstream and downstream operations

• Petrochemical – Critical rotating assets in refineries and chemical plants

• Mining & Minerals – Crushers, conveyors, and heavy-duty motors

• Marine Engineering – Propulsion systems and gearbox monitoring

• Manufacturing – CNC machines, motors, gearboxes, and spindles

Product Advantages

• High Accuracy – Provides consistent and precise shaft displacement readings

• EMI Protection – Shielded cable design reduces electromagnetic interference

• Compact and Durable – Slim profile with stainless steel housing for harsh environments

• Plug-and-Play Integration – Seamlessly connects with Bently Nevada systems

• Temperature Resilience – Operates reliably from arctic to desert environments

• IP67 Rated – Fully protected against dust ingress and water immersion

• Easy Installation – Threaded body supports quick, secure mounting

• Localized Compliance – BR configuration aligns with Brazil’s operational standards

Frequently Asked Questions (FAQ)

1. Q: What does the “BR” suffix in the model number indicate?

   A: It usually designates a Brazil-specific configuration, often related to local standards or certifications.

2. Q: What is the length of the cable on this probe?

   A: 5 meters (fixed, non-detachable).

3. Q: Which connector shell is used in this model?

   A: Shell style “02” for standard 3300 XL system compatibility.

4. Q: What systems is this probe compatible with?

   A: It is designed for Bently Nevada 3300 XL Proximitor® and monitoring systems.

5. Q: Can this probe withstand outdoor conditions?

   A: Yes, it is IP67 rated for dust and water protection.

6. Q: What is the operating temperature range?

   A: From –40°C to +120°C.

7. Q: Is this probe shielded against EMI?

   A: Yes, the coaxial cable is shielded to prevent electromagnetic interference.

8. Q: What is the sensing range?

   A: Typically from 0.15 mm to 5.00 mm.

9. Q: What is the tip diameter of the probe?

   A: 8 mm, which is standard across the 3300 XL series.

10. Q: Is recalibration required?

    A: Factory calibrated; field recalibration is not typically needed but system checks are recommended.
