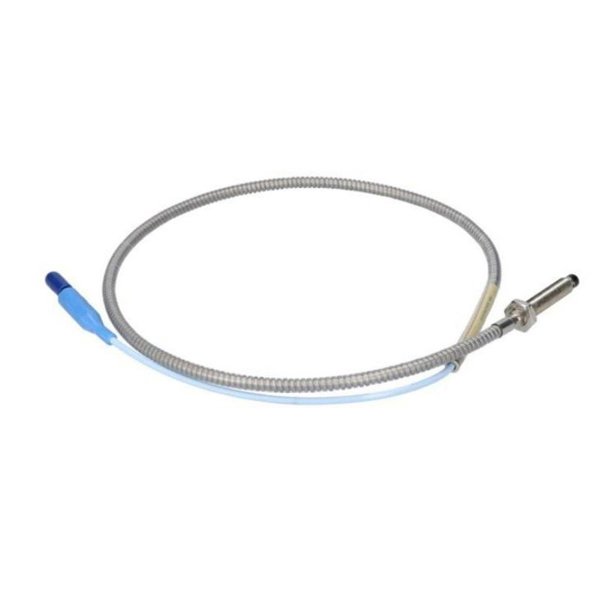

Bently Nevada 330104-00-07-90-02-00 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330104-00-07-90-02-00
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:9.0 meters
Weight:2.907 kg
Views:44
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330104-00-07-90-02-00 is part of the 3300 XL 8 mm Proximity Transducer System, designed to measure vibration and position in fluid-film bearing machines. It includes a proximity probe, extension cable, and Proximitor sensor. This model delivers high accuracy and conforms to API 670 standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330104-00-07-90-02-00 |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Thread Type | M10 x 1 |
| Cable Type | Standard with ClickLoc connector |
| Cable Length | 9.0 meters |
| System Output | 200 mV/mil (7.87 V/mm) |
| Linear Range | 0.25 mm to 2.3 mm (10 mils to 90 mils) |
| Frequency Response | 0 – 10 kHz (+0, -3 dB) |
| Minimum Target Diameter | 15.2 mm |
| Operating Temperature | -52°C to +177°C (standard); up to +218°C (ETR) |
| Weight | 2.907 kg (total system weight for 9 m cable) |
| Total Length | 9.0 meters |
| Probe Material | Stainless Steel (AISI 304) |
| Tip Material | Polyphenylene sulfide (PPS) |
| Connector Type | ClickLoc gold-plated coaxial |
| Compliance | CE, RoHS, ATEX, IECEx, CSA, FCC, SIL 2/3 |
Applications
-
Vibration monitoring on rotating machinery
-
Shaft position measurements
-
Overspeed and Keyphasor referencing
-
Fluid-film bearing monitoring
-
Turbo machinery diagnostics in power, oil & gas industries
Key Advantages
-
API 670 compliant for mechanical and performance standards
-
Full component interchangeability
-
Extended temperature range option available
-
No tools required for connector installation (ClickLoc)
-
High immunity to RFI/EMI—ideal for harsh industrial environments
-
Strong mechanical build with TipLoc and CableLoc enhancements
Frequently Asked Questions (FAQ)
Q1: What is the primary function of this proximity probe?
A1: It measures vibration and axial/radial position relative to a conductive target surface.
Q2: What is the output scale factor?
A2: 200 mV/mil (7.87 V/mm), with ±6.5% error for the 9-meter system.
Q3: Is this model compliant with API 670?
A3: Yes, it meets API 670 for linear range, temperature, and mechanical specs.
Q4: Can I mix XL and non-XL components?
A4: Yes, but overall system performance is reduced to that of non-XL components.
Q5: What’s the minimum target diameter for reliable readings?
A5: 15.2 mm, with reduced accuracy below this.
Q6: Can it operate in high-temperature environments?
A6: Yes. ETR versions support up to +260°C cable and +218°C probe tip temperatures.
Q7: Does it require special tools for connector assembly?
A7: No. The ClickLoc connectors are finger-tight and self-locking.
Q8: Is the probe tip resistant to chemical exposure?
A8: It’s molded in PPS, suitable for industrial use, but extreme pH can degrade it.
Q9: What certifications does it carry?
A9: CE, RoHS, ATEX, IECEx, SIL 2/3, CSA, and FCC.
Q10: Can I mount it on a DIN rail?
A10: The associated Proximitor sensor supports DIN rail and panel mounting.
