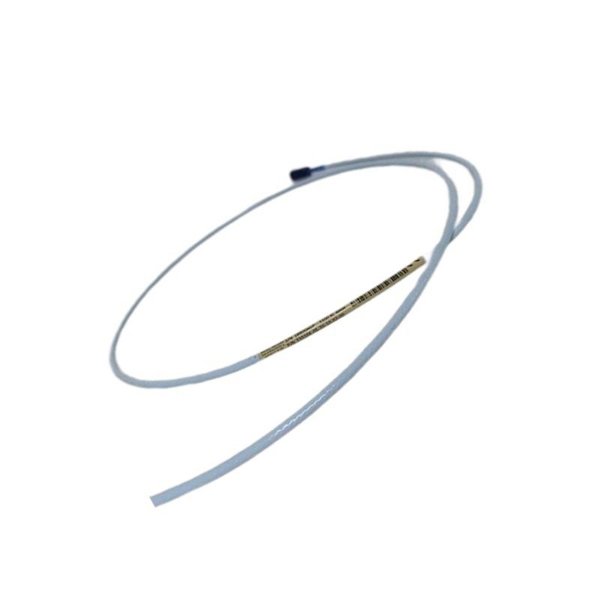

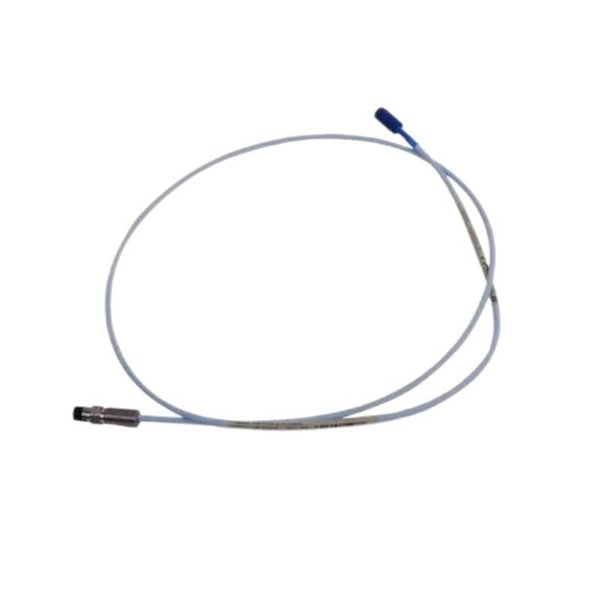

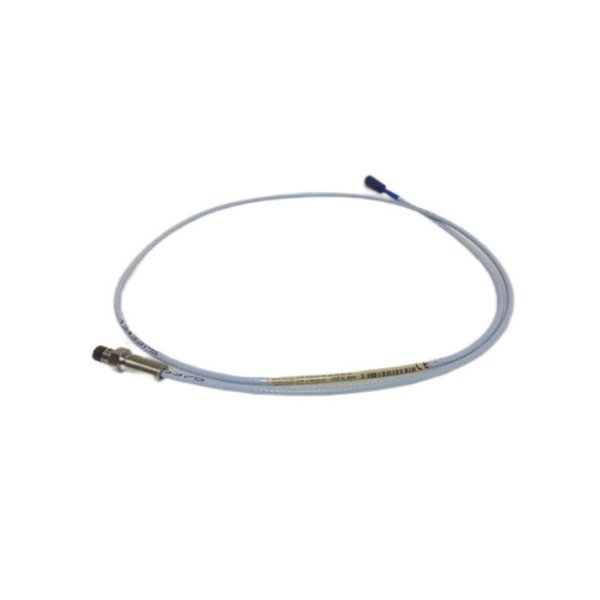

Bently Nevada 330101-00-18-10-02-CN 3300 XL 8 mm Proximity Probe

The Bently Nevada 330101-00-18-10-02-CN is a precision 3300 XL 8 mm proximity probe designed to offer highly accurate and reliable shaft displacement and vibration measurements in industrial machinery. This advanced probe plays a critical role in monitoring the health of rotating equipment such as turbines, compressors, pumps, and motors. The probe is engineered to provide accurate and timely measurements that help in identifying potential mechanical issues such as misalignment, imbalance, and bearing wear, allowing for proactive maintenance and minimizing unplanned downtime.

This proximity probe is particularly designed with an 8 mm sensing gap and comes with a 1.0 meter cable length, making it an ideal choice for diverse industrial applications. With a total weight of just 0.323 kg, it is compact and easy to install in tight spaces. Additionally, the 3300 XL series probes are designed to provide consistent performance even in harsh environments, making them reliable for long-term use.

Product Specifications

Product Applications

The 3300 XL 8 mm proximity probe is commonly used in a variety of applications where precise vibration and shaft displacement measurements are critical. Its applications include:

• Turbines: Ensures real-time monitoring of shaft displacement to detect early signs of imbalance or misalignment, thus preventing potential damage to the turbine.

• Compressors: Measures displacement to identify mechanical issues such as bearing wear, misalignment, or imbalance, ensuring the smooth operation of the compressor.

• Pumps: Monitors shaft movement and vibration in pumps to detect issues before they lead to failures, optimizing pump performance.

• Motors: Used to measure displacement in motors to identify misalignment or other potential mechanical issues that could disrupt motor operation.

• Generators: Helps in monitoring the health of generators by detecting excessive vibrations or shaft displacement that could lead to operational failure.

• Industrial Fans and Blowers: Monitors the mechanical condition of rotating machinery in fans and blowers, ensuring continuous and reliable performance.

In all of these applications, the 3300 XL 8 mm proximity probe serves as an essential tool in predictive maintenance strategies, allowing for early detection of faults and reducing the likelihood of costly downtime.

Product Advantages

1. High Accuracy: The 8 mm sensing gap ensures precise measurement of shaft displacement and vibration.

2. Compact and Lightweight: With a 1.0 meter cable length and weighing just 0.323 kg, it is easy to install and use in confined spaces.

3. Durability: The probe is constructed with stainless steel, offering durability and resistance to wear and corrosion, even in demanding environments.

4. Wide Temperature Range: The probe operates efficiently in environments with temperatures ranging from -40°C to +121°C, making it suitable for a variety of industrial settings.

5. Reliable Output: It delivers AC voltage signals, which ensures reliable and continuous data transmission for condition monitoring systems.

6. Flexible Mounting: The probe supports threaded or flanged mounting options, making it adaptable for different installation scenarios.

7. Environmental Protection: With an IP65 rating, the probe is dust-tight and protected against water ingress, making it suitable for harsh industrial environments.

8. Integration with Monitoring Systems: The probe is compatible with Bently Nevada’s 3300 XL monitoring systems, enabling seamless integration for real-time monitoring.

9. Prevention of Equipment Failure: By detecting mechanical issues early, the probe helps prevent catastrophic equipment failures, extending the lifespan of machinery.

10. Cost Savings: By enabling predictive maintenance, the probe helps reduce the need for expensive repairs and unexpected downtime.

FAQs

1. What is the sensing gap of the 3300 XL proximity probe?

   The sensing gap is 8 mm.

2. What is the total length of the probe?

   The total length of the probe is 1.0 meter.

3. How much does the probe weigh?

   The probe weighs 0.323 kg.

4. What is the temperature range for the probe?

   The probe can operate in temperatures ranging from -40°C to +121°C.

5. What type of output signal does the probe provide?

   The probe provides an AC voltage output signal.

6. What material is the probe tip made of?

   The probe tip is made from stainless steel for durability and corrosion resistance.

7. How is the probe mounted?

   The probe can be mounted using either threaded or flanged installation methods.

8. Can this probe be used with other monitoring systems?

   While it is designed for use with Bently Nevada 3300 XL systems, it can also be compatible with other systems if appropriate adapters or interfaces are used.

9. What is the environmental rating of the probe?

   The probe has an IP65 rating, which means it is protected from dust and water ingress.

10. How does the probe contribute to predictive maintenance?

    The probe helps detect early signs of faults like misalignment, imbalance, and bearing wear, enabling maintenance teams to address issues before they lead to costly downtime or failure.
