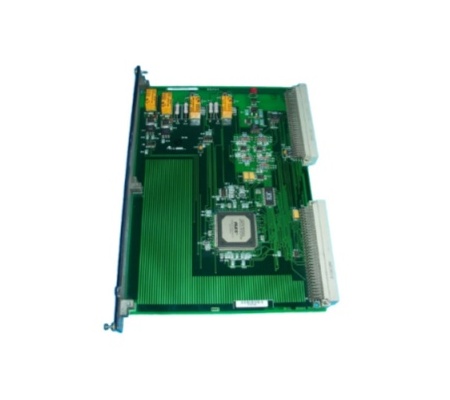

General Electric IS200BICLH1AFF IGBT Drive/Source Bridge Interface Board

The GE IS200BICLH1AFF IGBT Driver/Source Bridge Interface Board acts as an interface between the control system and the insulated gate bipolar transistor bridge used to drive power systems, motors, turbines, or other high power devices. It manages the control signals for the IGBTs and can also be used in high efficiency motor drives, variable speed drives, inverters.

The IS200BICLH1AFF board interfaces with the IGBT modules. The Mark VI or Mark VIe control system sends control signals to the IGBT bridge and manages the high-voltage power output to the motor, actuator, or other electrically driven device.

The board converts the low-power control signals from the control system into high-power signals that can be used to drive the IGBT modules.

It provides the gate drive signals required to control the IGBT switches, ensuring precise voltage and current regulation.

Frequently asked questions about the product are as follows:

-What does the IS200BICLH1AFF board do?

It enables precise control of power systems, motors, or turbines. It provides the necessary gate drive signals to the IGBT modules and regulates the power delivered to the motor or other high-power device.

-What types of systems use the IS200BICLH1AFF?

The board is used in turbine control, motor drive systems, power generation, renewable energy, industrial automation, and electric vehicles.

-How does the IS200BICLH1AFF protect the system from faults?

If a fault occurs, the board communicates with the control system to take corrective action, such as initiating a shutdown procedure to protect the equipment.
