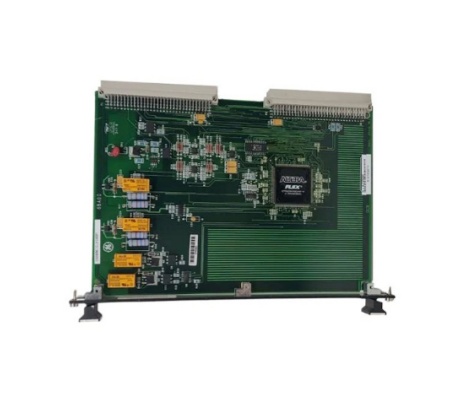

The GE IS200BICLH1BAA IGBT Driver/Source Bridge Interface Board is a device that interfaces with insulated gate bipolar transistor bridges in high power applications. It also provides the necessary interfaces to support efficient switching, fault protection, and precise control.

The IS200BICLH1BAA is responsible for sending control signals from the control system to the IGBT bridge, enabling efficient power switching and regulation in a variety of applications.

The gate drive signals control the switching of the IGBTs. It converts the low-power control signals from the Mark VI system into the high-power signals required to switch the IGBT devices.

Pulse Width Modulation control is used to regulate the power delivered to a motor, turbine or other high-power device. By modulating the width of the voltage pulses, PWM control can fine-tune motor speed, torque and overall system efficiency.

Frequently asked questions about the product are as follows:

-What does the IS200BICLH1BAA board do?

Provides gate drive signals, regulates power output, and monitors the status of IGBT modules to ensure high-power devices such as motors and turbines operate efficiently.

-How does the IS200BICLH1BAA board protect the system?

Monitors for overvoltage, overcurrent, and overtemperature conditions. If a fault is detected, the system can initiate a shutdown or other protective measures.

-What types of systems use the IS200BICLH1BAA board?

Turbine control, motor drives, power generation, renewable energy, industrial automation, and electric vehicles.
