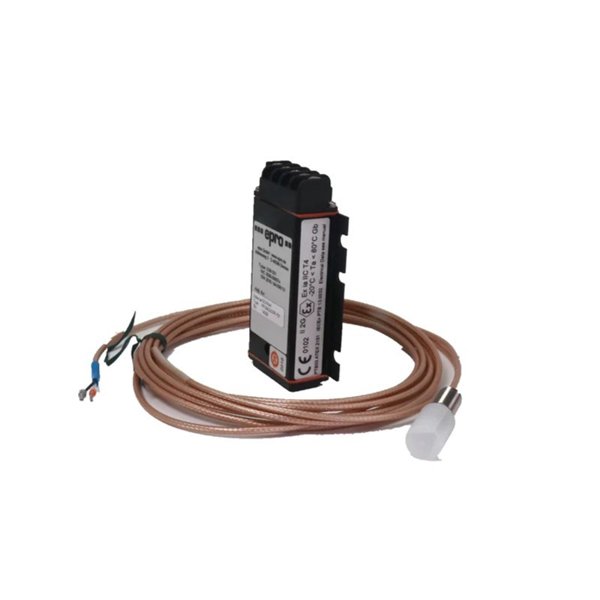

Epro PR6424/106-021 16mm Eddy Current Sensor

The Epro PR6424/106-021 is a high-performance 16mm Eddy Current Sensor designed to measure displacement, position, and proximity with extreme precision. Operating based on the principle of eddy current measurement, this sensor uses a magnetic field to detect the displacement of a conductive target. The result is a non-contact, highly accurate measurement system that is immune to external environmental factors such as temperature variations, vibrations, and electromagnetic interference.

The PR6424/106-021 is ideal for use in applications such as rotating machinery monitoring, precision positioning in automation systems, and bearing health assessment. Its compact design (with a 16mm sensor head diameter) and robust construction make it a perfect solution for precise displacement measurements in confined spaces or harsh industrial environments.

Technical Specifications

Product Applications

The Epro PR6424/106-021 16mm Eddy Current Sensor is used in various industrial applications where precise displacement measurement is crucial:

• Rotating Machinery Monitoring: The sensor is employed for detecting misalignment and displacement of rotating components such as shafts, turbines, and motors, helping to prevent mechanical failures.

• Bearing Health Monitoring: It is ideal for monitoring the displacement of bearings, helping to detect early signs of wear or damage by measuring axial and radial displacements.

• Proximity Sensing: The sensor is used in applications that require proximity detection, ensuring that parts maintain the correct position in automated systems.

• Positioning in Robotics: In robotics, the sensor provides high-precision displacement measurements for accurate positioning and motion control of robotic arms or other moving parts.

• Process Control in Manufacturing: It ensures accurate displacement feedback in manufacturing processes, where precise positioning of components is critical to maintaining product quality and process stability.

Its flexibility and compact design make it indispensable for applications where space is limited, but high precision is required.

Product Advantages

• High Precision: The PR6424/106-021 offers a resolution of 0.1 µm and an accuracy of ±0.1% of full scale, ensuring extremely accurate and reliable measurements in critical applications.

• Compact Design: The 16mm sensor head diameter allows for easy integration into compact spaces while maintaining high performance and accuracy.

• Wide Measurement Range: With a measurement range of 0 to 10 mm, this sensor can be applied to various displacement measurement tasks across different industries.

• Versatile Output Options: The sensor provides both analog and digital outputs, making it compatible with a wide range of industrial systems and allowing flexible integration.

• Temperature Resilience: With a temperature range of -20°C to 85°C, the PR6424/106-021 can operate effectively in environments subject to both high and low temperatures.

• Environmentally Immune: The sensor is designed to be resistant to temperature fluctuations, vibrations, and magnetic fields, ensuring consistent performance under harsh environmental conditions.

FAQ

1. What is the measurement range of the Epro PR6424/106-021 sensor?

The Epro PR6424/106-021 sensor has a measurement range of 0 to 10 mm, allowing it to measure a wide range of displacements accurately.

2. What output types does the PR6424/106-021 sensor support?

The PR6424/106-021 sensor supports both analog and digital outputs, offering flexibility for use in various industrial systems.

3. What is the resolution of the PR6424/106-021 sensor?

The sensor offers a high resolution of 0.1 µm, providing extremely precise displacement measurements.

4. What is the accuracy of the PR6424/106-021 sensor?

The PR6424/106-021 sensor has an accuracy of ±0.1% of full scale, ensuring highly accurate measurements.

5. What is the operating temperature range for the PR6424/106-021 sensor?

The PR6424/106-021 operates within a temperature range of -20°C to 85°C, making it suitable for a wide range of industrial environments.

6. What is the housing material of the PR6424/106-021 sensor?

The PR6424/106-021 sensor is housed in stainless steel, providing durability and protection in harsh environments.

7. How does the PR6424/106-021 sensor detect displacement?

The sensor uses eddy current technology, where a magnetic field is generated and interacts with a conductive target, allowing the sensor to measure changes in inductance caused by displacement.

8. What power supply is required for the PR6424/106-021 sensor?

The PR6424/106-021 requires a power supply of 15-30 VDC, which is common for industrial sensors.

9. What industries can benefit from the PR6424/106-021 sensor?

The sensor is used in industries such as manufacturing, aerospace, automotive, robotics, and process control, where precise displacement measurement is critical.

10. What type of connector does the PR6424/106-021 sensor use?

The PR6424/106-021 sensor uses an M12 connector for easy integration with control and monitoring systems.
