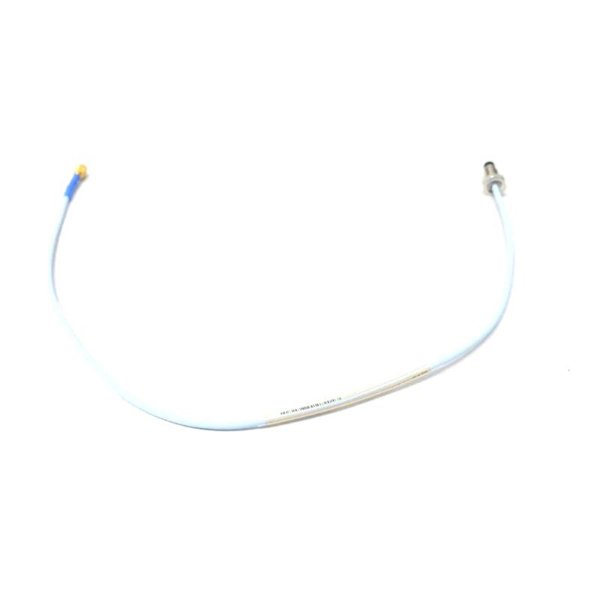

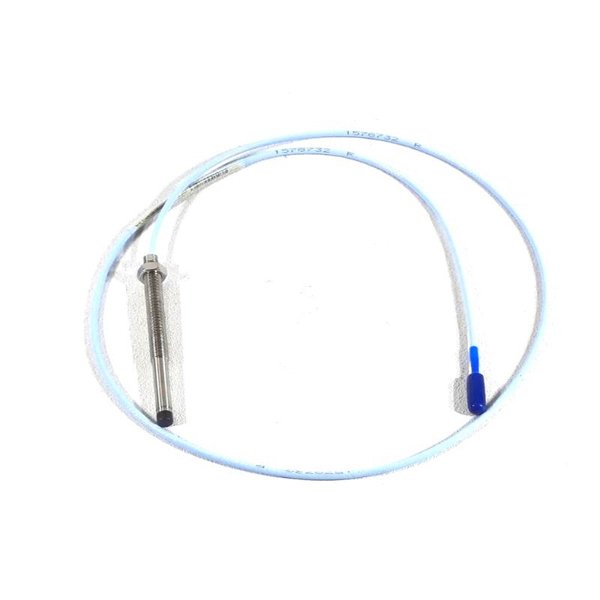

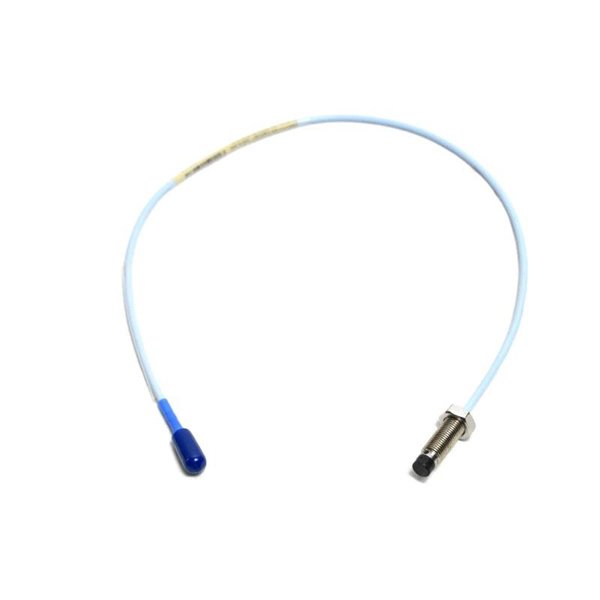

Bently Nevada 330101-00-72-10-12-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330101-00-72-10-12-05 is part of the 3300 XL 8 mm Proximity Probe series. It is designed for precise, reliable non-contact vibration and displacement measurements in critical machinery monitoring systems. The probe is optimized for use with 3300 XL Proximitor sensors and extension cables, offering enhanced durability in harsh industrial environments.

Product Features

• Non-contact vibration monitoring

• Compatible with 3300 XL Proximitor Sensor

• Rugged construction for industrial use

• EMI/RFI protection

• High reliability and long service life

Technical Specifications

Applications

• Steam and gas turbines

• Compressors and pumps

• Gearboxes and motors

• Industrial fans and blowers

• Machinery with rotating shafts

Advantages

• Reliable performance in high-temperature environments

• High linearity and repeatability

• Resistant to moisture and contamination

• Easy integration with Bently Nevada monitoring systems

• Proven long-term field performance

Frequently Asked Questions (FAQ)

Q1: What is the sensing range of the 330101-00-72-10-12-05 probe?

A1: It typically offers a sensing range of 2 mm when used with a 3300 XL Proximitor Sensor.

Q2: Is this probe compatible with all Bently Nevada systems?

A2: It is specifically designed for use with the 3300 XL series Proximitor sensors and extension cables.

Q3: Can the probe operate in high-temperature environments?

A3: Yes, it supports operation from -35°C to +120°C.

Q4: What materials are used in the probe construction?

A4: The case is made of stainless steel for corrosion resistance and mechanical durability.

Q5: Is it suitable for wet or dirty environments?

A5: Yes, the probe is designed to be resistant to moisture and contaminants.

Q6: How is the probe connected to the system?

A6: It uses a 90° miniature coaxial connector to connect with an extension cable and Proximitor.

Q7: What is the thread size for mounting?

A7: It uses a 3/8-24 UNF-2A thread with 72 mm thread length.

Q8: Can I replace only the probe without changing the entire system?

A8: Yes, the probe can be replaced independently if it’s compatible with the existing Proximitor and cable.

Q9: What are the recommended applications for this probe?

A9: It’s suitable for turbines, compressors, motors, and other rotating machinery.

Q10: How long is the probe’s cable?

A10: The cable length for this model is 1.0 meter.
