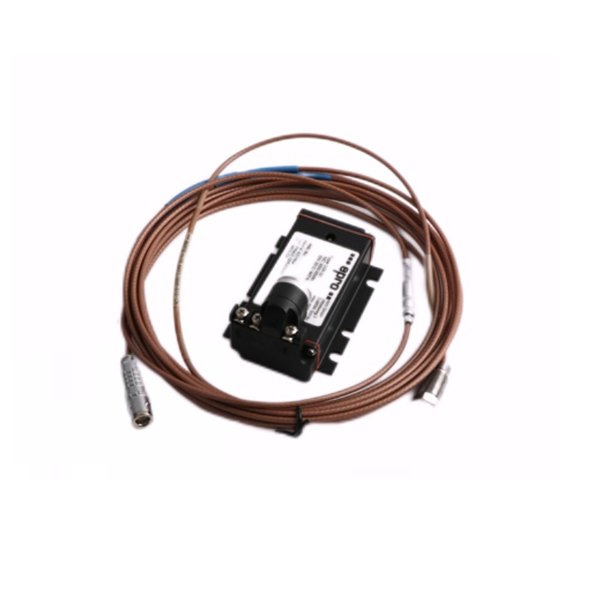

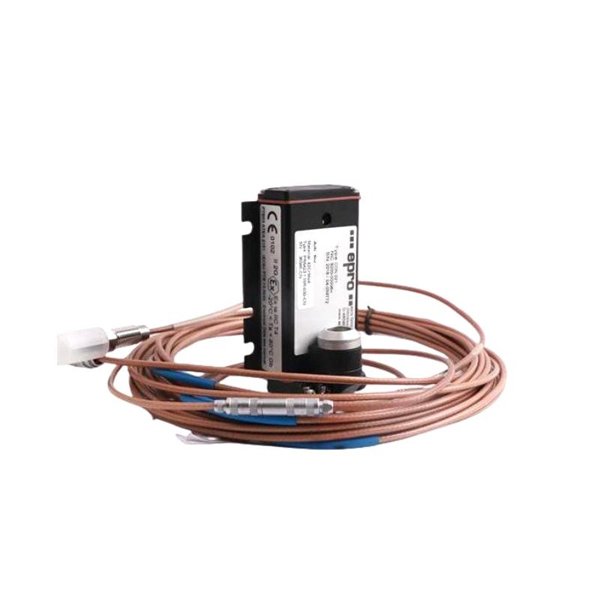

Epro PR6423/011-010 8mm Eddy Current Sensor

The Epro PR6423/011-010 is a non-contact, proximity-type eddy current displacement sensor designed for accurate and reliable measurement of the distance between a sensor and a conductive target surface. Built with precision and durability, this model is widely used in critical industrial monitoring applications such as vibration, axial displacement, and rotational speed measurement in turbomachinery.

With an 8 mm tip diameter, this sensor delivers excellent linearity, temperature stability, and noise immunity. It is designed for integration with the Epro CON0xx series converter modules, typically in condition monitoring and protection systems like those found in rotating equipment, including turbines, compressors, pumps, and motors. It offers superior performance under extreme industrial conditions such as high vibration, oil mist, or temperature fluctuations.

Technical Specifications

Applications

The Epro PR6423/011-010 sensor is tailored for applications in which precise shaft positioning or vibration measurement is crucial for machine health. It is commonly used in:

• Steam and Gas Turbines: For monitoring axial thrust or radial vibration of shafts.

• Centrifugal Compressors: Detects imbalance or misalignment in rotating machinery.

• Pumps and Motors: Ensures early fault detection in shaft movement.

• Gearboxes and Generators: Assists in preventive maintenance and reduces unplanned downtime.

• Condition Monitoring Systems: Integrated in systems like Epro MMS or other vibration monitoring platforms.

Its rugged design ensures it performs even in aggressive conditions such as oil exposure, electromagnetic noise, and vibration-intensive zones.

Advantages

• High Sensitivity & Accuracy: Offers linear output across a wide range, allowing for precise shaft position and vibration monitoring.

• Compact & Durable Construction: The stainless-steel body resists corrosion, oil, and moisture ingress.

• Wide Temperature Range: Can be installed in high-heat environments, ideal for turbines and engines.

• Plug & Play Integration: Compatible with standard CON011 and CON021 converters from Epro.

• Long Lifecycle: Engineered for extended operational life even in harsh industrial settings.

• Certified Safety Options: Available with ATEX-compliant versions for hazardous area use.

These benefits make the PR6423/011-010 sensor a preferred choice for critical rotating equipment diagnostics.

Frequently Asked Questions (FAQ)

1. What does the PR6423/011-010 sensor measure?

   It measures non-contact displacement (e.g., shaft vibration or axial movement) using eddy current technology.

2. What is the difference between this sensor and other PR6423 models?

   This model has an 8 mm tip and a 1-meter cable, while other variants differ in tip size, cable length, or connector type.

3. Is it compatible with all Epro converters?

   It is specifically designed for use with CON011 and CON021 converter modules.

4. Can this sensor operate in high-temperature areas?

   Yes, its temperature range goes up to +180°C, making it suitable for turbine environments.

5. Does it need special mounting?

   No, it uses a standard thread mount and fits well into typical sensor brackets for radial or axial installation.

6. Is the cable replaceable?

   The cable is factory-integrated for signal integrity; custom lengths can be pre-ordered.

7. How often should the sensor be calibrated?

   Calibration is typically recommended during installation and verified during regular maintenance cycles.

8. Can I use this sensor in explosive environments?

   Yes, certified versions are available for ATEX Zone 1 or Zone 2 areas.

9. Is this sensor suitable for water-exposed areas?

   It is IP65 rated, offering dust-tight protection and resistance to low-pressure water jets.

10. What maintenance is required for this sensor?

    Generally, none. It is maintenance-free under normal conditions.
