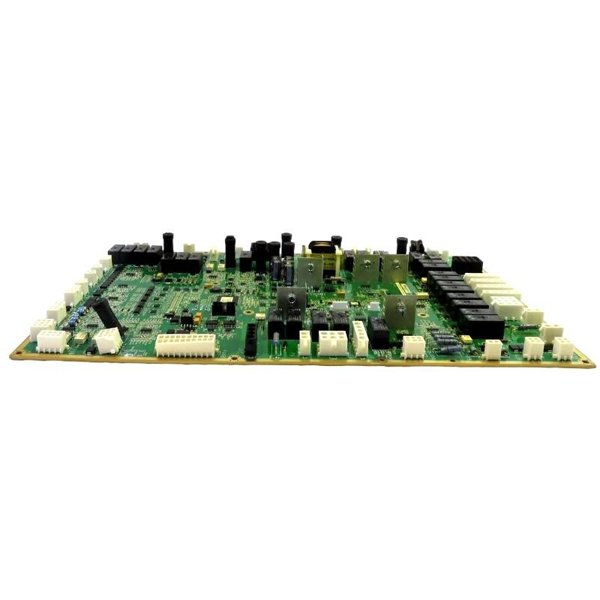

General Electric IS200WETBH1ABA Analog Output Module

The GE IS200WETBH1ABA is a high-performance Analog Output Module that belongs to the WETB (Wide-range Electronic Transducer – B) family under the Mark VIe control system platform by General Electric (GE). This module is designed for converting and conditioning analog input signals from field instruments and providing electrically isolated, accurately scaled analog outputs to the control processors. It ensures optimal signal fidelity, protection, and adaptability in critical industrial applications.

The IS200WETBH1ABA is often integrated within the EX2100 and Mark VIe I/O architecture, making it a key part of GE’s control solutions for turbine control, generator excitation, and complex process control systems. This module offers reliable operation in harsh electrical environments and delivers precision signal processing capabilities for both current and voltage analog outputs.

Product Specifications

Product Applications

The IS200WETBH1ABA is utilized in a broad range of industrial and energy applications, where analog output precision and reliability are essential:

• Gas and Steam Turbine Control Systems

  Delivers analog signals to actuators, servos, and control valves as part of the closed-loop turbine regulation process.

• Generator Excitation Systems (EX2100)

  Used to control field excitation via analog output commands to voltage regulators and power electronics.

• Industrial Process Automation

  Transmits analog setpoints and commands to field devices, including VFDs, control valves, and signal converters.

• SCADA and DCS Integration

  Provides analog feedback signals to higher-level supervisory systems in remote control architectures.

• Oil & Gas Applications

  Operates in environments with high electrical noise, vibration, and temperature fluctuation, ensuring process continuity.

• Redundant Safety Systems

  Suitable for dual-channel, fault-tolerant systems where analog output integrity is mission-critical.

Product Advantages

• Precision Analog Output Delivery

  Outputs high-resolution analog signals (±10V or 4–20mA), enabling accurate actuator or controller response.

• Built-in Isolation and Safety

  Each output is isolated to prevent ground loops and protect downstream devices.

• Diagnostic Capabilities

  Integrated diagnostics allow for real-time signal health monitoring, aiding in proactive maintenance and reliability.

• Flexible Output Configurations

  Supports voltage or current output formats, configurable based on application needs.

• Seamless GE System Integration

  Fully compatible with GE Mark VIe and EX2100 controllers, allowing quick commissioning.

• Rugged Industrial Design

  Built to operate in harsh industrial environments, maintaining performance over a wide temperature range.

FAQ

1. What analog output ranges does the IS200WETBH1ABA support?

   It supports configurable output ranges, typically 4–20 mA and ±10V, suitable for most industrial devices.

2. Are the analog outputs electrically isolated?

   Yes, all analog output channels are isolated to prevent signal interference and ensure safety.

3. Can output formats be configured on a per-channel basis?

   Yes, each channel can be individually configured for current or voltage output via ToolboxST.

4. Does the module support redundant control paths?

   Yes, it can operate in redundant systems with automatic failover capabilities.

5. What type of diagnostics are built into the module?

   The module includes fault detection circuits, signal quality monitoring, and onboard LED indicators.

6. How is this module programmed or calibrated?

   It is configured through GE ToolboxST software, allowing calibration and diagnostics via Ethernet.

7. Is the output rate or update frequency adjustable?

   Output update frequency is managed by the controller, and the module supports high-speed updates.

8. What is the load driving capacity of the analog outputs?

   The module is capable of driving standard industrial loads up to 500 ohms for current outputs.

9. Is there any protection against short circuits or overloads?

   Yes, the module includes protection features such as current limiting and thermal cutoffs.

10. How does this module communicate with the controller?

    Communication is handled via GE’s proprietary backplane protocol in the Mark VIe system.
