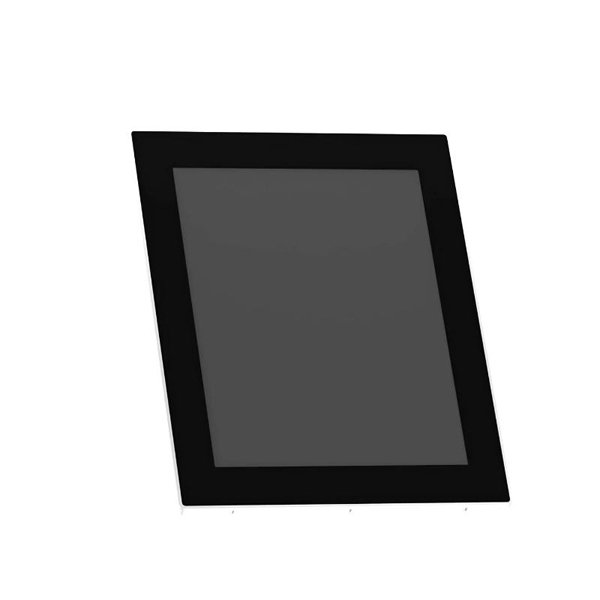

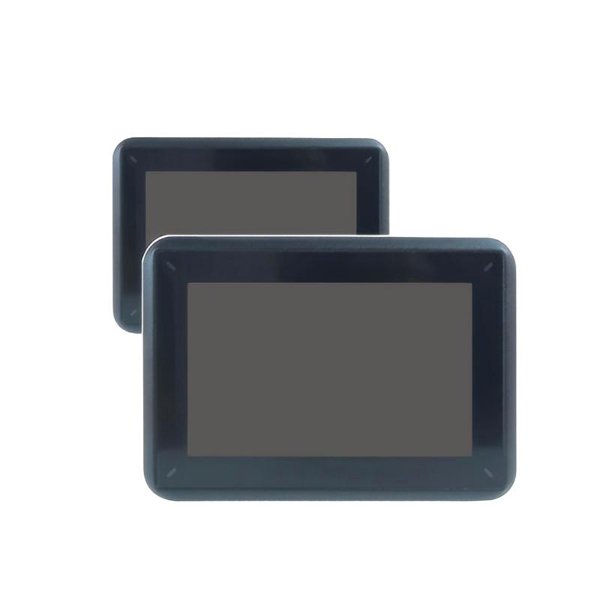

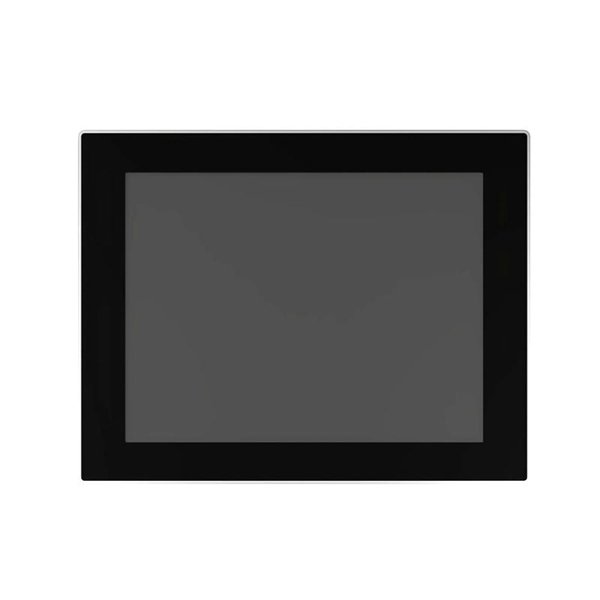

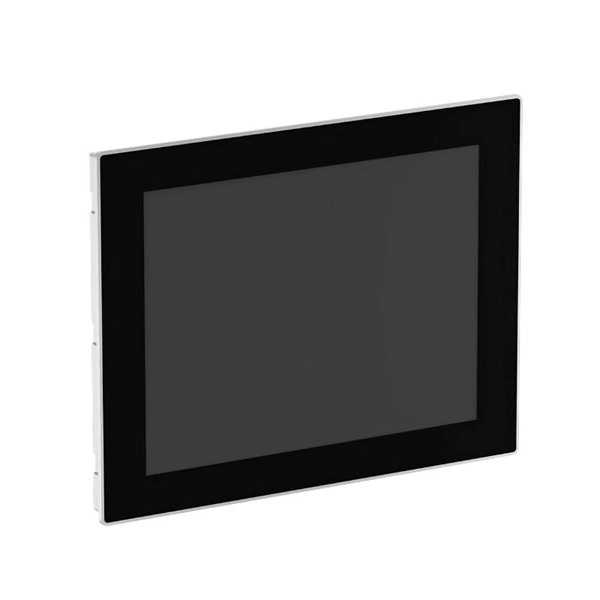

ABB CP6415 1SAP541510R0001 Control Panel
Manufacturer:ABB
Product Number:CP6415 1SAP541510R0001
Product Type:Control Panel
Origin:Sweden
Dimensions:47 x 307 x 392 mm
Weight:3.19 kg
Views:35
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB CP6415 (1SAP541510R0001) is a high-performance 15-inch touchscreen control panel designed for use in industrial automation applications where intuitive human-machine interface (HMI) interaction is required. Part of ABB’s advanced CP600 HMI series, this control panel combines a wide-format high-resolution display with flexible connectivity, high processing power, and robust construction to withstand demanding environments.
The CP6415 supports fast and responsive operation with its ARM-based processor, multi-protocol communication support, and compatibility with ABB’s Panel Builder 600 software. Its IP66-rated front panel ensures resistance to dust, moisture, and mechanical stress, making it ideal for deployment in manufacturing, utilities, energy, and infrastructure systems. The unit is engineered to deliver both high reliability and user-friendly operation in mission-critical automation systems.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | CP6415 |
| Part Number | 1SAP541510R0001 |
| Display Type | TFT LCD with LED backlight |
| Display Size | 15 inches (diagonal) |
| Resolution | 1024 × 768 pixels (XGA) |
| Touchscreen Type | Resistive touchscreen |
| Processor | ARM Cortex-A8, 600 MHz |
| RAM | 256 MB |
| Flash Memory | 512 MB |
| External Interfaces | 1 × Ethernet (RJ45), 2 × USB Host, 1 × RS-232, 1 × RS-485 |
| Supported Protocols | Modbus TCP, Modbus RTU, Ethernet/IP, OPC UA |
| Input Voltage | 24 VDC ±20% |
| Power Consumption | Approximately 15 W |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Humidity Range | 10% to 90% RH, non-condensing |
| Mounting Type | Panel-mounted (flush mount) |
| Front Panel Protection | IP66 |
| Rear Panel Protection | IP20 |
| Dimensions (H × W × D) | 47 x 307 x 392 mm |
| Weight | 3.19 kg |
| Software Compatibility | Panel Builder 600, AC500 PLC platforms |
| Certifications | CE, UL, RoHS, cULus |
| Manufacturer | ABB Ltd. |
Applications
The ABB CP6415 control panel is designed for industrial-grade HMI applications across a wide range of industries. With its large, high-resolution display and multi-interface design, it supports detailed data visualization and complex control operations.
-
Industrial Manufacturing: Machinery control, assembly line monitoring, robotics interaction
-
Power Generation and Utilities: HMI interface for substation automation, SCADA visualization
-
Oil & Gas: Display interface for process instrumentation, safety systems, and compressors
-
Food and Beverage: Touchscreen interface for batch control and recipe management
-
HVAC and Building Automation: Graphical user interface for monitoring temperature and energy systems
-
Water and Wastewater: Control panel for pump stations, filtration, and process monitoring
Its panel-mount design and IP66 front protection make it a preferred solution for harsh or regulated environments.
Product Advantages
-
Large and Clear Visual Interface: The 15″ XGA display allows for detailed monitoring and control of complex systems.
-
Industrial-Grade Durability: IP66 protection on the front ensures resistance against dust, oil, and water spray.
-
Flexible Communications: Supports Ethernet, USB, RS-232/485 for multiple field protocols and devices.
-
User-Friendly Programming: Seamlessly integrates with ABB’s Panel Builder 600 for easy HMI development.
-
Long Service Life: Designed for 24/7 continuous operation in automation and control systems.
-
Touchscreen Reliability: Proven resistive touchscreen ensures consistent performance under glove or stylus use.
-
Compact Mounting: Despite its large display, the flush-mount depth of only 50 mm suits tight enclosures.
-
Energy Efficient: Low power consumption helps minimize heat dissipation and operating costs.
Frequently Asked Questions (FAQ)
1. What is the primary function of the CP6415 panel?
It acts as a human-machine interface (HMI), allowing operators to monitor and control industrial systems visually and interactively.
2. Can it be connected to non-ABB PLCs?
Yes, it supports open protocols like Modbus TCP and RS-485, allowing connection to third-party controllers.
3. What software is used to program this HMI?
The CP6415 is programmed using ABB’s Panel Builder 600 software.
4. Is it suitable for outdoor environments?
The front panel is IP66-rated, but for full outdoor use, it must be installed inside a weather-sealed enclosure.
5. What kind of touchscreen does it use?
It uses a resistive touchscreen, which works well with gloves and styluses.
6. What power supply is required?
It operates on a 24 VDC ±20% power supply.
7. How many communication ports does it have?
It includes Ethernet, two USB ports, RS-232, and RS-485 for various communication needs.
8. What certifications does the CP6415 hold?
It is CE, UL, RoHS, and cULus certified for industrial and global use.
9. What operating conditions is it designed for?
It supports 0°C to +50°C for operation, and up to 90% humidity non-condensing.
10. How does it differ from smaller CP600 panels?
The CP6415 offers a larger screen, higher resolution, and more visibility for data-rich applications.
