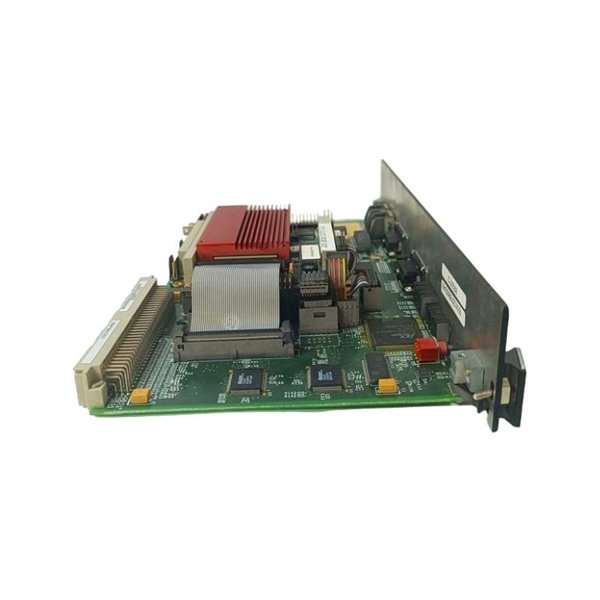

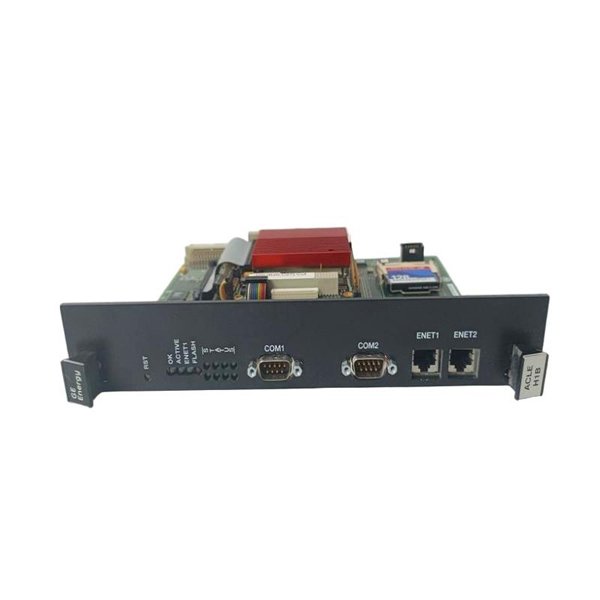

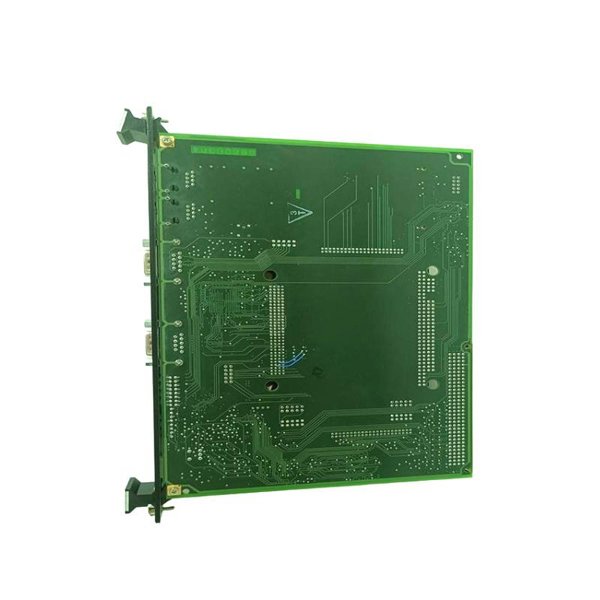

General Electric IS215PMVPH1AA I/O Module

The GE IS215PMVPH1AA I/O Module is a high-performance Input/Output processing module specifically designed for use within GE’s Mark VIe and Mark VI control systems, widely implemented in advanced gas turbine, steam turbine, and balance of plant control applications.

Part of the proven Speedtronic™ family of industrial automation and control solutions, the IS215PMVPH1AA acts as an interface between the control system and field devices, efficiently handling process variable inputs and outputs while ensuring fast, reliable communication with the controller and I/O network.

Engineered for operation in harsh industrial environments, this module delivers high integrity signal processing and robust diagnostics, contributing to superior system availability and safety. It is widely used in power generation, oil & gas, petrochemical, and industrial process automation where GE’s Mark VIe and Mark VI platforms are deployed.

With advanced features such as high-speed signal handling, fault detection, and redundant network support, the IS215PMVPH1AA is a critical component for the performance and reliability of large-scale industrial control applications.

Product Specifications

Applications

• Process variable acquisition and I/O control for gas turbines

• Steam turbine process monitoring and control

• Balance of Plant (BoP) auxiliary equipment control

• Industrial generator protection and monitoring

• Distributed I/O interfacing in power generation

• Process control in oil & gas refining and pipelines

• Automation in chemical processing plants

• Control of metals & mining equipment

• High-speed monitoring in marine propulsion systems

• Critical signal acquisition in pharmaceutical manufacturing

Product Advantages

• High channel density: Up to 16 configurable channels in a compact module

• Wide signal compatibility: Supports analog, RTD, thermocouple, and control signal processing

• Advanced diagnostics: Provides clear, actionable channel-level and system-level diagnostics

• Redundant network support: Enhances system uptime and fault tolerance

• Field upgradable firmware: Supports easy upgrades to meet evolving control requirements

• Robust industrial design: Proven reliability in vibration-prone and temperature-extreme environments

• Global certifications: CE, UL, CSA approved for global deployment

• Fast response: Supports high-speed signal acquisition for demanding applications

• Flexible mounting: Suitable for DIN rail or direct rack mounting within GE Mark VIe chassis

• Optimized for Mark VIe and Mark VI systems: Seamless integration with GE’s advanced turbine and plant control solutions

Frequently Asked Questions (FAQ)

1. What is the function of the IS215PMVPH1AA module?

   It acts as an I/O module for acquiring process variable input signals and transmitting control outputs to the GE Mark VIe and Mark VI systems.

2. How many input channels are provided?

   The module supports up to 16 configurable input/output channels.

3. Which systems is this module compatible with?

   It is fully compatible with GE Mark VIe and Mark VI control systems.

4. What types of input signals does it support?

   The module can process 4-20 mA, 0-10 V, RTDs, and thermocouple input signals.

5. Does it support redundant networks?

   Yes — it supports redundant IONet and Arcnet networks for high system reliability.

6. Is the firmware upgradable?

   Yes — firmware updates can be performed via the Mark VIe controller.

7. Is the module suitable for hazardous areas?

   It is certified to CE, UL, and CSA standards but should be installed in appropriate enclosures for hazardous area applications.

8. How is diagnostics information provided?

   Both channel-level and module-level diagnostics are available through the control system.

9. What is the typical power consumption of the module?

   The module consumes less than 8 W under normal operation.

10. In which industries is this module typically used?

    It is widely used in power generation, oil & gas, petrochemical, chemical processing, metals & mining, and related industrial automation sectors.
