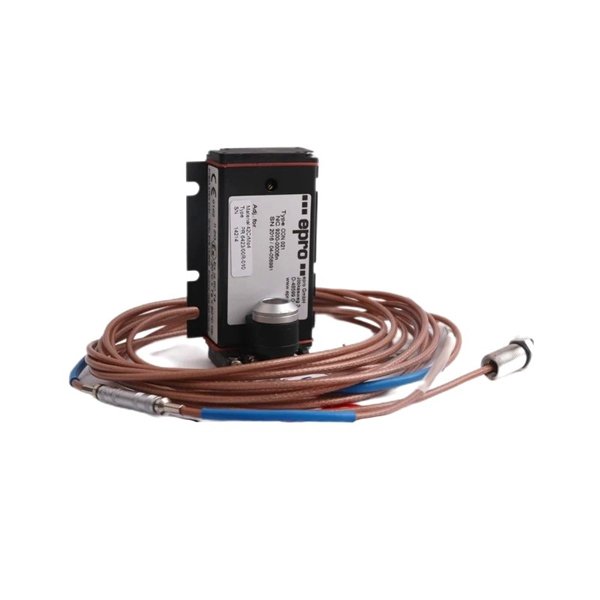

Epro PR6424/115-000 16mm Eddy Current Sensor

The Epro PR6424/115-000 is a 16mm eddy current sensor designed for precision measurement in a wide range of industrial applications. It utilizes the eddy current principle to measure displacement, position, and vibration without making contact with the target. This non-contact feature helps avoid wear and tear on both the sensor and the target, increasing the longevity and reliability of your systems.

With a diameter of just 16mm, this sensor is compact and ideal for use in tight spaces, making it highly versatile for dynamic and static measurements in machinery, rotating equipment, and test systems. It is ideal for use in vibration monitoring, proximity sensing, and position feedback applications.

Technical Specifications

Product Applications

The Epro PR6424/115-000 16mm eddy current sensor is highly versatile and can be used in a wide range of applications, including:

• Vibration Monitoring: Used to monitor vibrations in rotating machinery, helping detect issues early in critical components like motors, turbines, and pumps.

• Position Feedback: Provides high-precision position feedback in automated and robotic systems.

• Proximity Sensing: Measures the proximity between machine parts, ensuring they remain within specified tolerances.

• Dimensional Measurement: Used in industrial processes for precise dimensional measurements.

• Test and Calibration Systems: Utilized in laboratories and test systems for precise calibration of other equipment.

• Dynamic Applications: Perfect for high-speed, dynamic measurement scenarios where accuracy and reliability are essential.

Product Advantages

• Non-Contact Measurement: The sensor’s eddy current technology allows for non-contact measurement, avoiding wear and ensuring longevity of both the sensor and target.

• Compact Size: The 16mm diameter probe makes it ideal for use in confined spaces or where larger sensors would not fit.

• High Accuracy: The sensor offers ±0.5% linearity of full scale, ensuring highly accurate readings in industrial applications.

• Wide Operating Temperature Range: The sensor operates in temperatures ranging from -20°C to +80°C, making it suitable for a wide variety of industrial environments.

• Robust Design: It is designed for industrial environments, with a robust build that ensures consistent performance in challenging conditions.

• Fast Response Time: The sensor offers a response time of less than 1ms, providing real-time measurements.

• Versatile Output Options: Supports analog outputs (either 0-10V or 4-20mA), making it easy to integrate into various monitoring and control systems.

FAQ

1. What is the maximum measurement range of the Epro PR6424/115-000 sensor?

The maximum measurement range of the sensor is up to 10 mm, suitable for most displacement and position measurement applications.

2. What type of output signal does this sensor provide?

The sensor provides an analog output in either 0-10V or 4-20mA, depending on the model.

3. How accurate is the Epro PR6424/115-000 sensor?

The sensor offers ±0.5% linearity of full scale, ensuring high precision and reliable measurements.

4. Can this sensor be used for dynamic measurements?

Yes, this sensor is ideal for dynamic applications and can measure high-speed displacements with real-time feedback.

5. What temperature range can this sensor operate in?

The sensor operates in temperatures ranging from -20°C to +80°C, making it suitable for various industrial and environmental conditions.

6. What materials are compatible with the Epro PR6424/115-000 sensor?

The sensor works with conductive metals as target materials, making it versatile for different industrial applications.

7. Can this sensor be used in confined spaces?

Yes, with its compact 16mm diameter probe, this sensor is perfect for use in tight spaces where larger sensors would not fit.

8. What is the power supply requirement for this sensor?

The Epro PR6424/115-000 requires a 15V to 24V DC power supply to operate.

9. Is the sensor suitable for vibration monitoring?

Yes, the sensor is designed for vibration monitoring and is ideal for monitoring rotating equipment such as motors and turbines.

10. How fast is the response time of this sensor?

The response time of the sensor is less than 1 ms, allowing for real-time displacement and position measurement.
