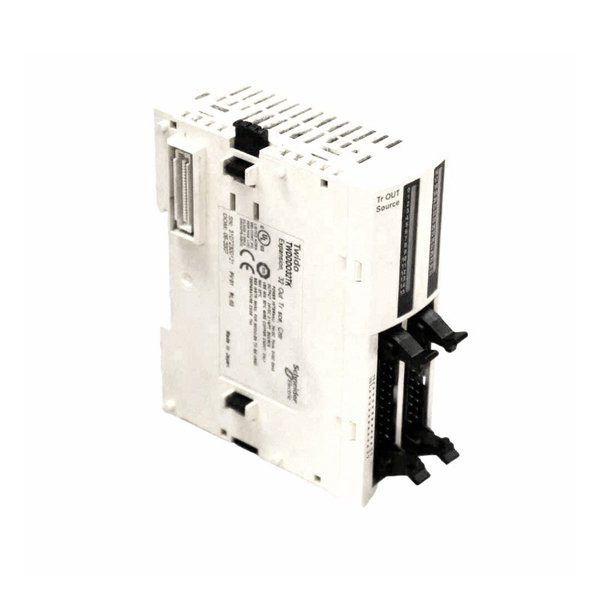

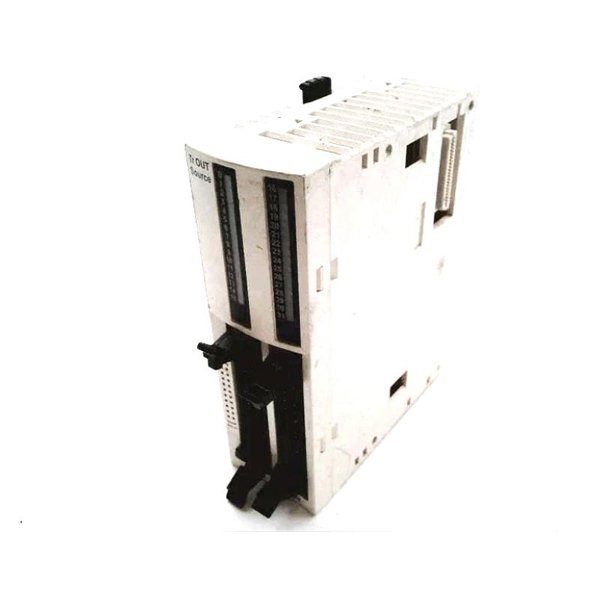

Schneider TWDDDO32TK Discrete Output Module

The Schneider TWDDDO32TK is a compact and efficient discrete output module, designed for use in the Twido programmable logic controller (PLC) system. It provides 32 transistor outputs, ideal for applications requiring fast, reliable switching of digital signals. The module offers excellent performance in industrial automation and control environments.

Product Features

• 32-channel discrete output module

• Transistor outputs (sourcing type)

• Suitable for 24 VDC applications

• Compact size for space-constrained installations

• Fast switching response for real-time control

• Designed for Twido PLC series

Technical Specifications

Applications

• Factory automation

• Machine control systems

• Packaging machinery

• Process control

• Conveyor systems

• HVAC systems with digital output control

Advantages

• High-density output in a compact form

• Fast transistor switching improves system response

• Simple integration with Twido controllers

• Reduced wiring thanks to multiple outputs

• Reliable operation in industrial environments

• Easy DIN rail mounting

Frequently Asked Questions (FAQ)

Q1: What type of output does the TWDDDO32TK module support?

A1: It supports 32 sourcing-type transistor outputs.

Q2: What is the rated voltage for the outputs?

A2: The outputs are rated for 24 VDC operation.

Q3: Is the module compatible with other PLC brands?

A3: It is specifically designed for Schneider Twido PLCs.

Q4: Can it handle inductive loads?

A4: Yes, with external protection such as flyback diodes.

Q5: Is there output channel isolation?

A5: Yes, channels are electrically isolated from the PLC logic.

Q6: How is the module mounted?

A6: It mounts on a DIN rail for easy installation.

Q7: What is the maximum current per output channel?

A7: Each output can handle up to 0.1 A.

Q8: Can the module be used in safety-related systems?

A8: It is not certified for safety applications like SIL or PL-rated systems.

Q9: Does it require an external power supply?

A9: Yes, a 24 VDC power source is required for output operation.

Q10: Is the module hot-swappable?

A10: No, power should be removed before replacing or installing the module.
