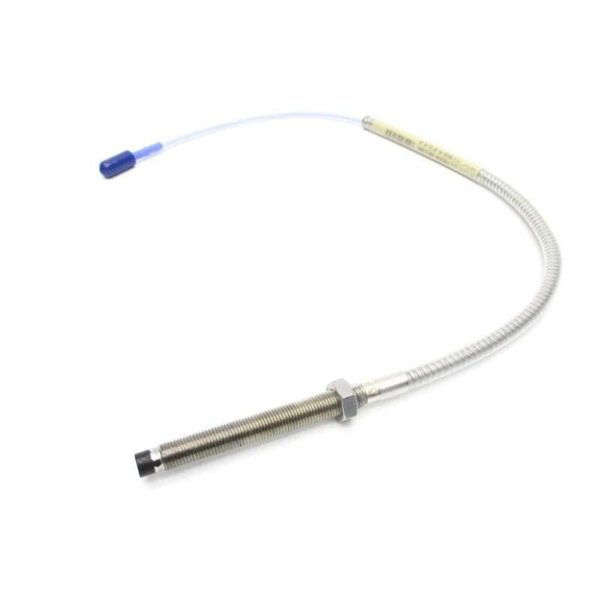

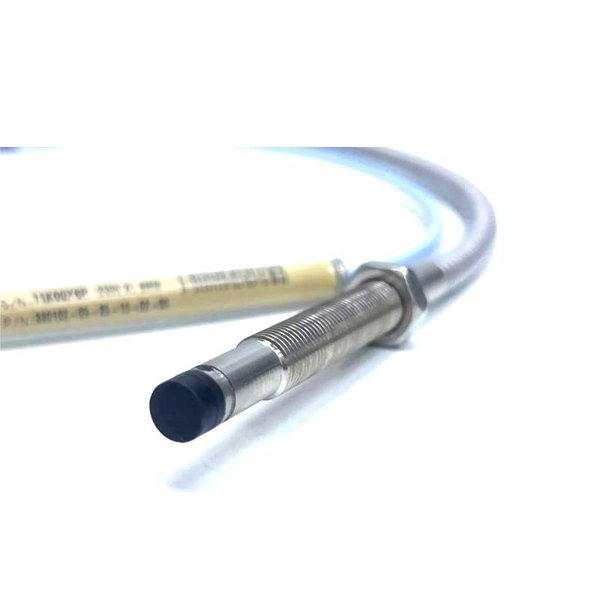

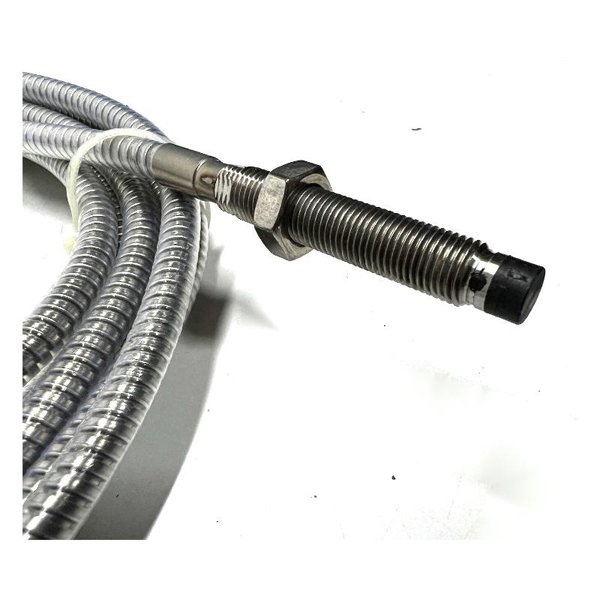

Bently Nevada 330102-00-40-10-11-00 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330102-00-40-10-11-00
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:44
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330102-00-40-10-11-00 3300 XL 8 mm Proximity Probe is a robust, armored eddy-current transducer designed for high-reliability vibration and position monitoring. It is part of the 3300 XL system, which includes a probe, extension cable, and Proximitor Sensor. This model delivers accurate static and dynamic measurements on fluid-film bearing machinery, supporting API 670 compliance and full interchangeability.
Technical Specifications
| Parameter | Value |
|---|---|
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Tip Diameter | 8.0 mm |
| Thread Size | 3/8-24 UNF |
| Cable Type | Armored, with ClickLoc connectors |
| Temperature Range (Probe) | -52°C to +177°C (standard) |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | ~1.27 mm (50 mils) |
| Compliance | API 670, CE, SIL2/SIL3 capable |
Applications
-
Radial vibration and axial position monitoring of turbines, compressors, pumps
-
Keyphasor reference and speed detection
-
Suitable for harsh industrial environments requiring armored cables and robust construction
Advantages
-
Fully API 670 compliant
-
Backward-compatible with non-XL systems
-
High immunity to RFI/EMI, suitable for fiberglass enclosures
-
SpringLoc terminal strips for easy wiring
-
ClickLoc gold-plated connectors for secure and tool-free installation
-
Optional extended temperature range and FluidLoc cables available
Frequently Asked Questions
Q1: What is the main use of the 330102-00-40-10-11-00 probe?
A1: It measures vibration and position in rotating machinery with high accuracy.
Q2: Is this probe compliant with API 670?
A2: Yes, it fully complies with API 670 requirements.
Q3: What does “armored” mean in this context?
A3: The cable is enclosed in stainless steel armor for increased durability and protection.
Q4: Can it be used in hazardous areas?
A4: Yes, it has ATEX, IECEx, and CSA approvals for hazardous areas when installed properly.
Q5: What is the recommended gap setting?
A5: Approximately 1.27 mm (50 mils) from the target surface.
Q6: Is it backward-compatible with older Bently Nevada systems?
A6: Yes, it can replace non-XL 3300 8mm components without modification.
Q7: Can it operate in high-temperature environments?
A7: The standard probe operates up to 177°C, with optional ETR probes rated higher.
Q8: How is the probe connected?
A8: Via gold-plated ClickLoc connectors that click when properly tightened.
Q9: Does it require field calibration?
A9: No, components are fully interchangeable and factory-calibrated.
Q10: What is the typical linear range?
A10: 2 mm (80 mils) linear measurement range.
