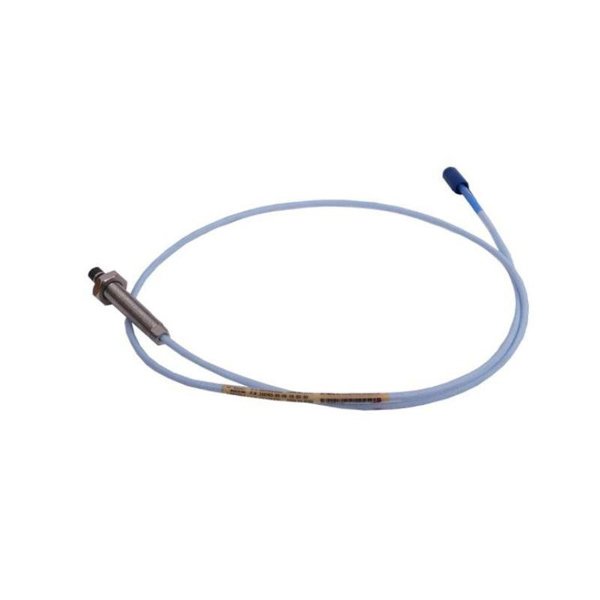

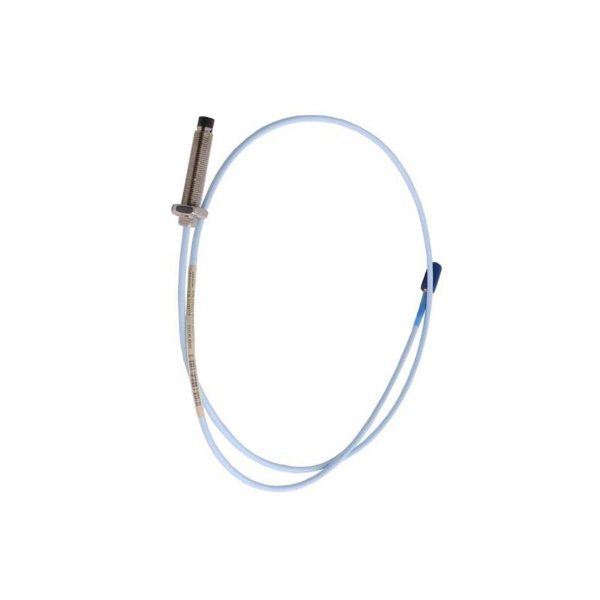

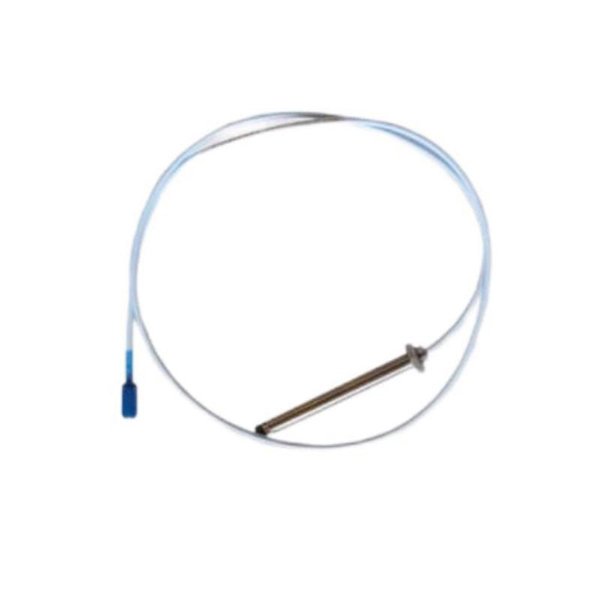

Bently Nevada 330103-00-13-10-12-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330103-00-13-10-12-05 is an 8 mm non-contact proximity probe from the robust 3300 XL series, featuring a 10 m integral cable and a 90° angled connector. Housed in stainless steel and sealed to IP68, it delivers high-fidelity shaft vibration and displacement monitoring for critical rotating machinery in demanding industrial environments.

Key Features

• 8 mm probe tip ensures precise, repeatable measurements

• 10 m integrated triaxial, low-noise cable

• 90° angled connector for efficient cable routing

• 5/8‑18 UNF threaded body for secure installation

• Stainless steel housing resists corrosion and wear

• IP68 protection against dust, water, and oil

• Designed to withstand high shock (5,000 g) and vibration (50 g)

• Factory-calibrated—plug-and-play with 3300 XL systems

• Operates reliably across extreme temperature ranges

• Complies with API 670 and CE standards

Technical Specifications

Industry Applications

Ideal for installations needing long cable runs and 90° connectors:

• Steam and gas turbine monitoring

• Oil & gas compressor and pump systems

• Petrochemical mixers and agitators

• Mining crusher and conveyor shaft monitoring

• Marine propulsion systems

• HVAC and industrial blower installations

• Pulp & paper roller monitoring

• Water treatment pump and motor systems

Product Advantages

1. 10 m cable provides versatile installation layouts

2. 90° angled connector aids cable management in tight panels

3. Stainless steel housing withstands harsh and corrosive settings

4. IP68 sealing ensures resistance against moisture and oil

5. Non-contact sensing eliminates mechanical wear

6. Factory calibration ensures high accuracy from day one

7. High shock/vibration resistance suits heavy-duty applications

8. Seamless compatibility with 3300 XL hardware and software

9. API 670 compliance meets critical machinery requirements

10. Provides reliable signal transmission over long distances

Frequently Asked Questions (FAQ)

1. What is the connector orientation?

   It features a 90° angled connector.

2. How long is the cable?

   The integrated cable is 10 meters.

3. What mounting thread does it use?

   5/8‑18 UNF‑2A threaded.

4. Is it suitable for wet, oily environments?

   Yes, IP68 rated when properly installed.

5. Which industries typically use this probe?

   Power, petrochemical, mining, marine, HVAC, pulp & paper, water.

6. Does it require on-site calibration?

   No, factory-calibrated for immediate use.

7. What temperature range can it handle?

   –35 °C to +177 °C (–31 °F to +351 °F).

8. How robust is it?

   Shock rated to 5,000 g and vibration up to 50 g.

9. Can it support extension cables?

   Comes with 10 m cable—extensions are not recommended.

10. What level of accuracy does it provide?

    Typically ±0.07 mm (±2.8 mils).
