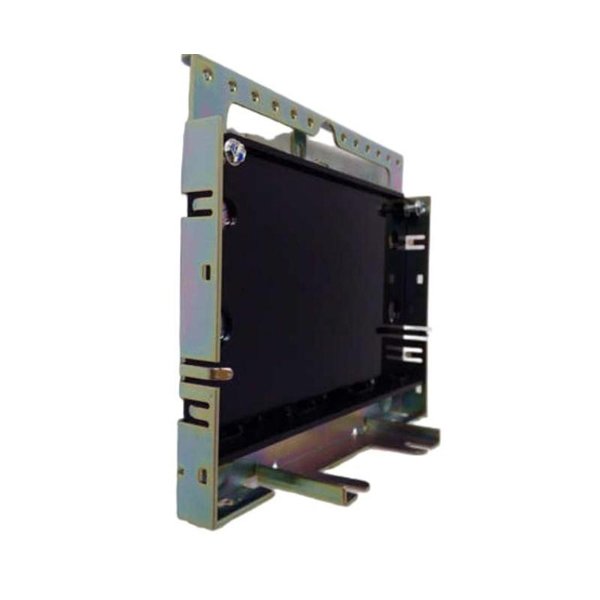

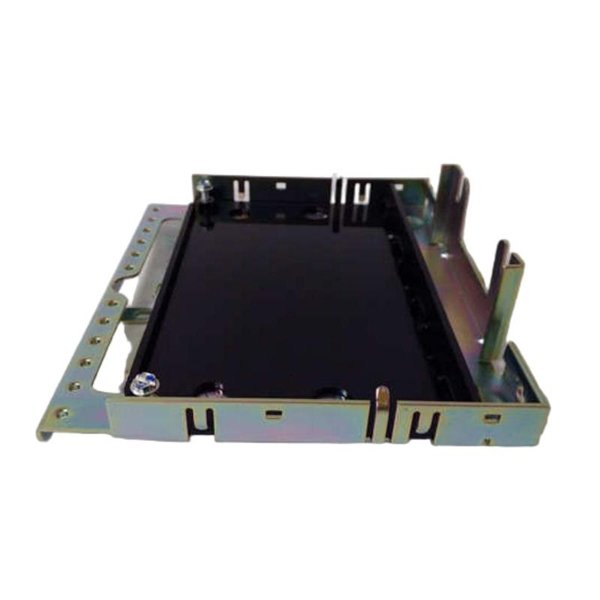

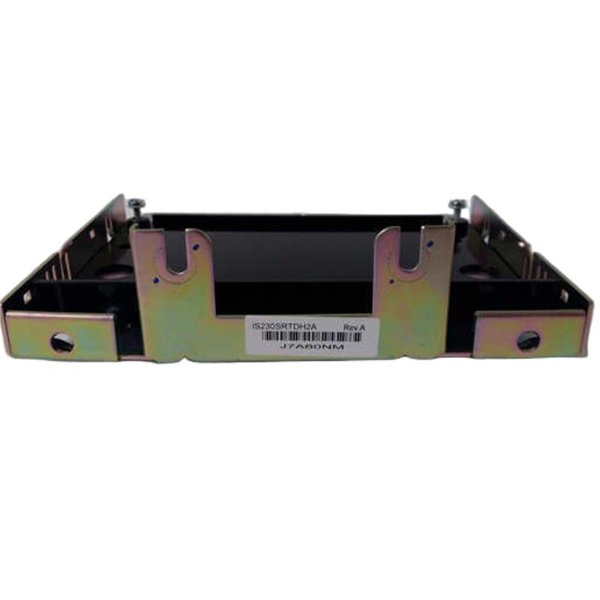

General Electric IS230SRTDH2A DIN rail Modules

The GE IS230SRTDH2A is a high-reliability terminal board module, typically applied in GE Mark VIe distributed control systems. Designed with a focus on robust signal transmission and system safety, this model is integral in processing RTD (Resistance Temperature Detector) inputs. The IS230SRTDH2A module offers multiple channels to accurately collect temperature data from industrial equipment, helping operators maintain optimal operating conditions and system stability.

Built under GE’s rigorous quality standards, this terminal board combines durability, consistent performance, and compatibility within complex industrial environments. Its design facilitates straightforward installation, reduced wiring complexity, and effective integration into larger turbine control systems or process control solutions.

Product Parameters

Product Applications

The GE IS230SRTDH2A is widely used in:

• Gas and steam turbine control systems

• Power generation plants

• Petrochemical facilities

• Process automation and control

• Heavy machinery temperature monitoring

• Industrial HVAC systems requiring precision temperature sensing

Its primary role is converting RTD temperature signals into reliable data for the control system, ensuring that overheating, undercooling, or thermal drift are immediately detected and addressed.

Product Advantages

• High accuracy: Provides precise RTD signal acquisition, crucial for sensitive industrial processes.

• Strong compatibility: Seamless integration with Mark VIe and similar GE systems.

• Compact design: Saves valuable panel space and reduces installation complexity.

• Reliability: Built to perform under harsh industrial conditions, with durable components and robust design.

• Ease of maintenance: Clear labeling and modular structure support quick troubleshooting and replacement.

• Reduced downtime: Improves system response to temperature anomalies, helping prevent costly equipment failures.

FAQ

Q1: What is the main use of the GE IS230SRTDH2A?

A1: It’s primarily used to interface RTD temperature sensors with GE Mark VIe control systems, converting analog temperature signals for precise monitoring.

Q2: Can it handle other sensor types?

A2: This model is specifically designed for RTD sensors; it does not directly process thermocouple or voltage inputs.

Q3: Is the module hot-swappable?

A3: In most configurations, replacing the terminal board requires system shutdown to maintain signal integrity and safety.

Q4: How do I install it?

A4: The IS230SRTDH2A mounts on a DIN rail or panel, connects to the system via pre-defined harnesses, and must be configured within the control system software.

Q5: What kind of maintenance does it need?

A5: Periodic checks for loose wiring, dust accumulation, and corrosion; functionality verification during scheduled maintenance.

Q6: Is it certified for hazardous environments?

A6: It meets typical industrial standards; for classified areas, check the specific batch or request explosion-proof variants.

Q7: What temperature sensors are compatible?

A7: It works with standard industrial RTDs, such as Pt100 sensors, commonly used in process control.

Q8: What is the module’s lifespan?

A8: When properly installed and maintained, it can last well over 5 years, depending on operating conditions.

Q9: Does it support redundant configurations?

A9: Yes; it’s often used in redundant or fault-tolerant control architectures to increase reliability.

Q10: Where can I buy replacement parts?

A10: Through authorized GE distributors, industrial automation resellers, or trusted surplus equipment suppliers.
