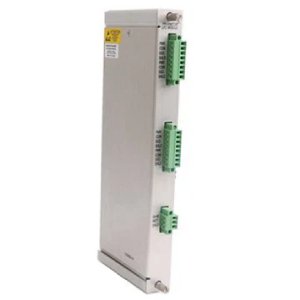

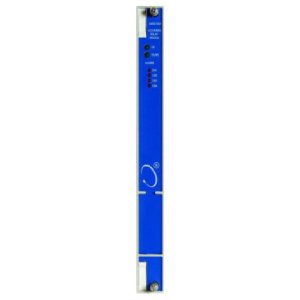

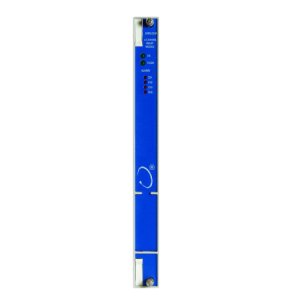

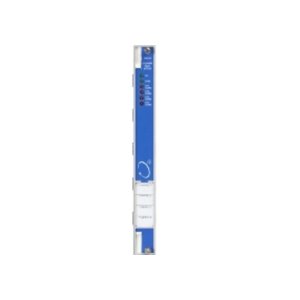

Bently Nevada 3500/32M 4-Channel Relay Module

The Bently Nevada 3500/32M 4-Channel Relay Module is a highly advanced module that provides four relay outputs to users. This module is a full-height module that can be placed in any slot to the right of the Transient Data Interface Module. With its flexible design, users can easily customize the module to meet their specific application needs.

One of the key advantages of the 3500/32M 4-Channel Relay Module is its ability to provide independent programming for each of its four relay outputs. Users can program each output to perform voting logic based on their specific requirements. Additionally, the module includes Alarm Drive Logic for each relay output, making it easy to program alarm conditions that trigger specific actions or responses.

Programming for the Alarm Drive Logic is achieved using AND and OR logic, which allows users to define complex relationships between inputs and outputs. This flexibility is critical for applications where multiple sensors or inputs must be monitored and analyzed for specific alarm conditions.

Users can program the Alarm Drive Logic to use a variety of inputs, including Alert and Danger statuses, Not-OK conditions, or individual PPLs from any monitor channel or any combination of monitor channels in the rack. With this level of customization, the 3500/32M 4-Channel Relay Module is capable of providing highly accurate and precise alarm responses in a wide range of monitoring applications.

The 3500 Rack Configuration Software is used to program the Alarm Drive Logic, and the software is designed to be intuitive and user-friendly. This allows users to easily create and modify programming logic for their specific application needs.

Another important feature of the 3500/32M 4-Channel Relay Module is its ability to integrate seamlessly with other modules in the 3500 monitoring system. Users can mix and match modules to create a customized monitoring solution that meets their specific needs.
