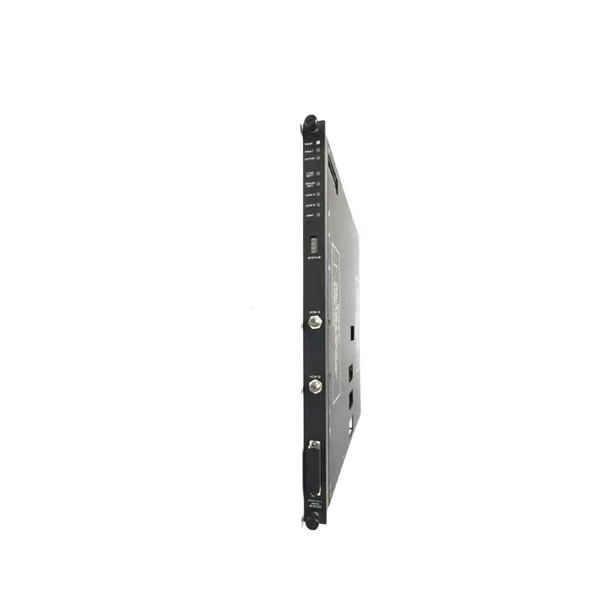

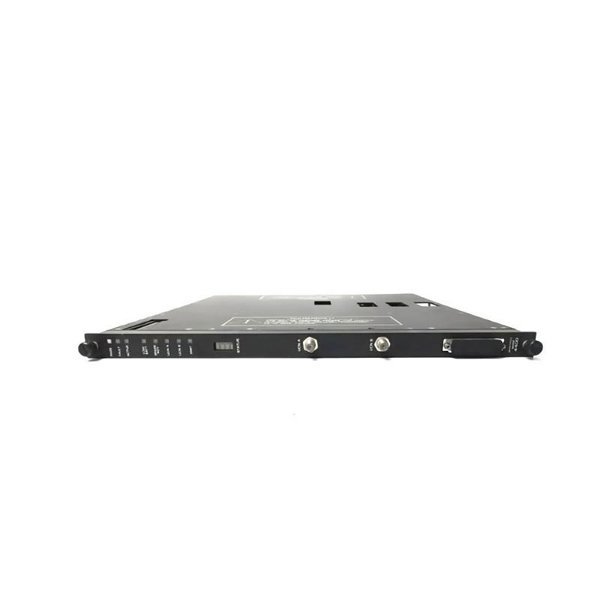

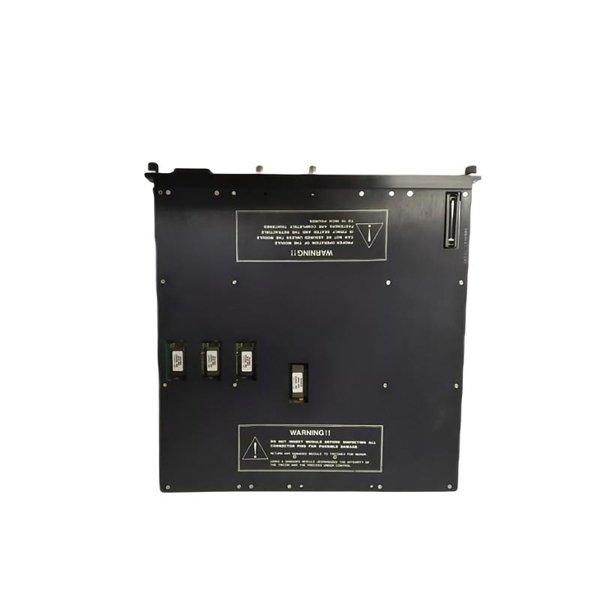

Triconex 4400 Communication Module

The Triconex 4400 Communication Module is an integral component of the Triconex Tricon® safety instrumented system (SIS) architecture developed by Schneider Electric. Designed for fault-tolerant, high-availability process control and safety-critical applications, the 4400 provides secure and reliable communication between the Tricon main processor and a wide array of external systems and third-party interfaces.

Capable of handling multiple industrial communication protocols, including Modbus, OPC, TCP/IP, and serial communications, the 4400 ensures seamless data exchange across control systems, asset management platforms, human-machine interfaces (HMIs), SCADA, and historian databases. It plays a crucial role in enabling SIL 3-rated safety system integration, offering both flexibility and resilience.

The 4400 module supports redundant communication paths, hot-swapping capabilities, and comprehensive diagnostic functions, making it ideally suited for continuous operation in industries such as oil & gas, chemical processing, refining, power generation, and water treatment.

Product Specifications

Applications

The Triconex 4400 Communication Module is widely used in demanding industrial environments where safety, reliability, and communication integrity are paramount. Key application areas include:

• Emergency Shutdown Systems (ESD): Ensures rapid, reliable communication with DCS and SIS systems during critical shutdown events.

• Fire & Gas Systems (F&G): Maintains real-time communication between detection and response mechanisms.

• Turbine and Rotating Machinery Protection: Interfaces between protection logic and operator interface panels or SCADA.

• Distributed Control System Integration: Facilitates seamless data exchange between Tricon SIS and DCS platforms.

• Pharmaceutical Batch Processing: Ensures real-time data collection and validation against GxP compliance.

• Nuclear and Conventional Power Generation: Delivers safety signal communications for high-integrity operations.

Advantages

• Versatile Protocol Support: Communicates effectively across multiple standard industrial protocols, enabling integration into mixed-vendor environments.

• High Availability: Built with TMR (Triple Modular Redundancy) architecture, ensuring continued operation even in case of single component failure.

• Hot-Swapping Functionality: Enables module replacement without interrupting system operations—critical for 24/7 facilities.

• Advanced Diagnostics: Embedded error detection and watchdog timers ensure fast fault identification and system protection.

• Rugged Design: Designed to operate under wide temperature and humidity ranges with industrial-grade EMC protection.

• Cybersecurity Ready: Firmware and protocol handling are designed with modern ICS cybersecurity guidelines in mind (ISA/IEC 62443).

• Modular Scalability: Multiple 4400 modules can be installed and configured depending on system needs.

Frequently Asked Questions (FAQ)

1. Q: What is the main role of the Triconex 4400 module?

   A: It enables communication between the Tricon controller and external systems like DCS, HMIs, SCADA, and historian servers.

2. Q: Is the 4400 suitable for SIL 3 safety systems?

   A: Yes, it is certified to comply with SIL 3 per IEC 61508 standards.

3. Q: What communication protocols does the 4400 support?

   A: It supports Modbus RTU, Modbus TCP/IP, RS-232, RS-485, and OPC protocols.

4. Q: Can the module be replaced while the system is running?

   A: Yes, the 4400 is hot-swappable.

5. Q: What industries typically use the 4400 module?

   A: Industries include oil & gas, petrochemical, nuclear power, pharmaceuticals, and wastewater treatment.

6. Q: How many communication modules can I use in a single system?

   A: Up to 8 modules can be used in a single Tricon chassis depending on system configuration.

7. Q: What are the available diagnostics features?

   A: Onboard diagnostics include communication error tracking, LED indicators, and loopback testing.

8. Q: What power does the 4400 module consume?

   A: Approximately 5.5 watts under nominal operating conditions.

9. Q: Is it compatible with legacy Triconex systems?

   A: Yes, it is compatible with Tricon v9 and later systems.

10. Q: What environmental conditions can the 4400 operate in?

    A: It supports 0°C to 60°C operating temperature and 5% to 95% humidity (non-condensing).
