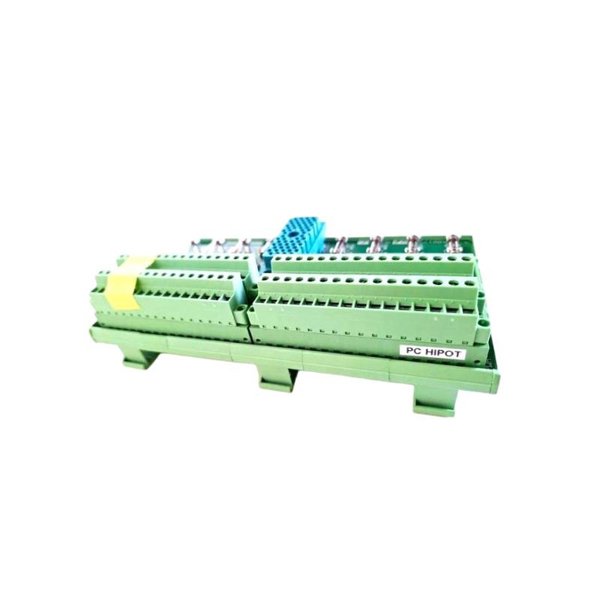

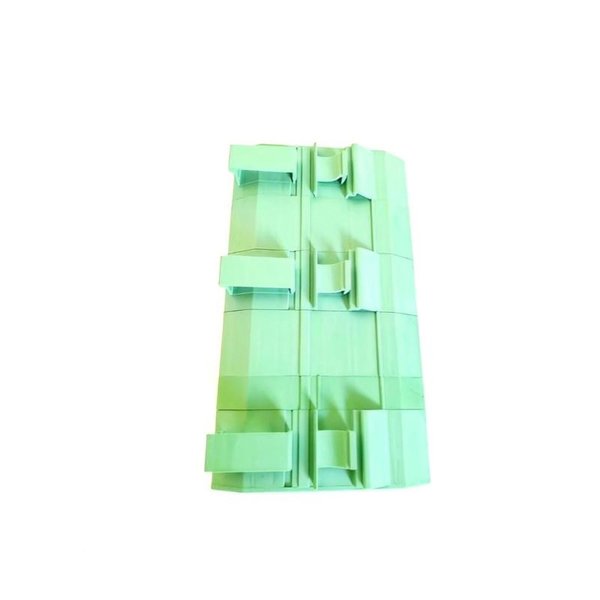

Triconex 9668-110NJ Termination Board

The Triconex 9668-110NJ is a high-performance termination board designed for integration with Triconex Safety Instrumented Systems (SIS). It provides reliable and secure connections between Triconex controller modules and field devices, ensuring the safe and efficient operation of critical industrial processes. Manufactured by Triconex, a brand under Schneider Electric, this board is engineered to meet the rigorous demands of industries such as oil and gas, power generation, and chemical processing.

Product Specifications

Product Applications

The Triconex 9668-110NJ is utilized across various industries for its reliability and safety features:

• Oil & Gas: Controls actuators and valves in emergency shutdown systems and process control.

• Power Generation: Interfaces digital signals for turbine trip and protection systems.

• Chemical Processing: Manages digital outputs for safety interlocks and automated processes.

• Pharmaceutical Manufacturing: Provides secure signal termination for batch process automation.

• Nuclear Power: Critical digital output interfacing in safety-related control systems.

• Refineries: Ensures precise and reliable output signal termination for flare control and other safety functions.

Product Advantages

• High Reliability: Designed for safety instrumented systems, meeting stringent SIL 3 requirements.

• Robust Construction: Durable materials and solid build quality ensure long-term operational stability.

• Ease of Installation: Standard rack mounting facilitates integration into existing control environments.

• Simplified Maintenance: Clearly labeled terminals and organized wiring simplify troubleshooting and maintenance.

• Fault Isolation: Terminal design supports easy fault detection and isolation without disturbing the entire system.

• Wide Compatibility: Supports digital output signals from various Triconex modules and interfaces smoothly with field devices.

• Optimized Dimensions: Compact design balances space-saving with accessibility.

• Stable Electrical Performance: Maintains signal integrity under industrial environmental stresses.

• Certified Safety Standards: Compliance with international safety guidelines ensures adherence to industry standards.

• Global Support: Backed by Schneider Electric’s worldwide service and support network.

Frequently Asked Questions (FAQ)

1. What is the primary function of the Triconex 9668-110NJ?

   It serves as a termination board, facilitating secure connections between Triconex controllers and field devices.

2. How many terminals does this board support?

   It supports 121 terminals.

3. Can the board be mounted on a standard rack?

   Yes, it is designed for rack mounting.

4. What is the voltage rating of the board?

   The board is rated for 30 VDC.

5. What is the operating temperature range of the board?

   The board operates reliably between -20°C and +70°C.

6. Is this board compatible with all Triconex modules?

   Yes, it is compatible with various Triconex modules.

7. What are the board’s physical dimensions and weight?

   Dimensions: 114.3 ×196.85 × 107.95 mm; Weight: 0.95 kg.

8. How does the board aid in system maintenance?

   It features clearly labeled terminals and organized wiring, simplifying troubleshooting and maintenance.

9. Does the board support fault isolation?

   Yes, its terminal design allows for fault isolation without affecting other circuits.

10. What type of connections does the board use?

    The board uses screw terminals for secure and reliable connections.
